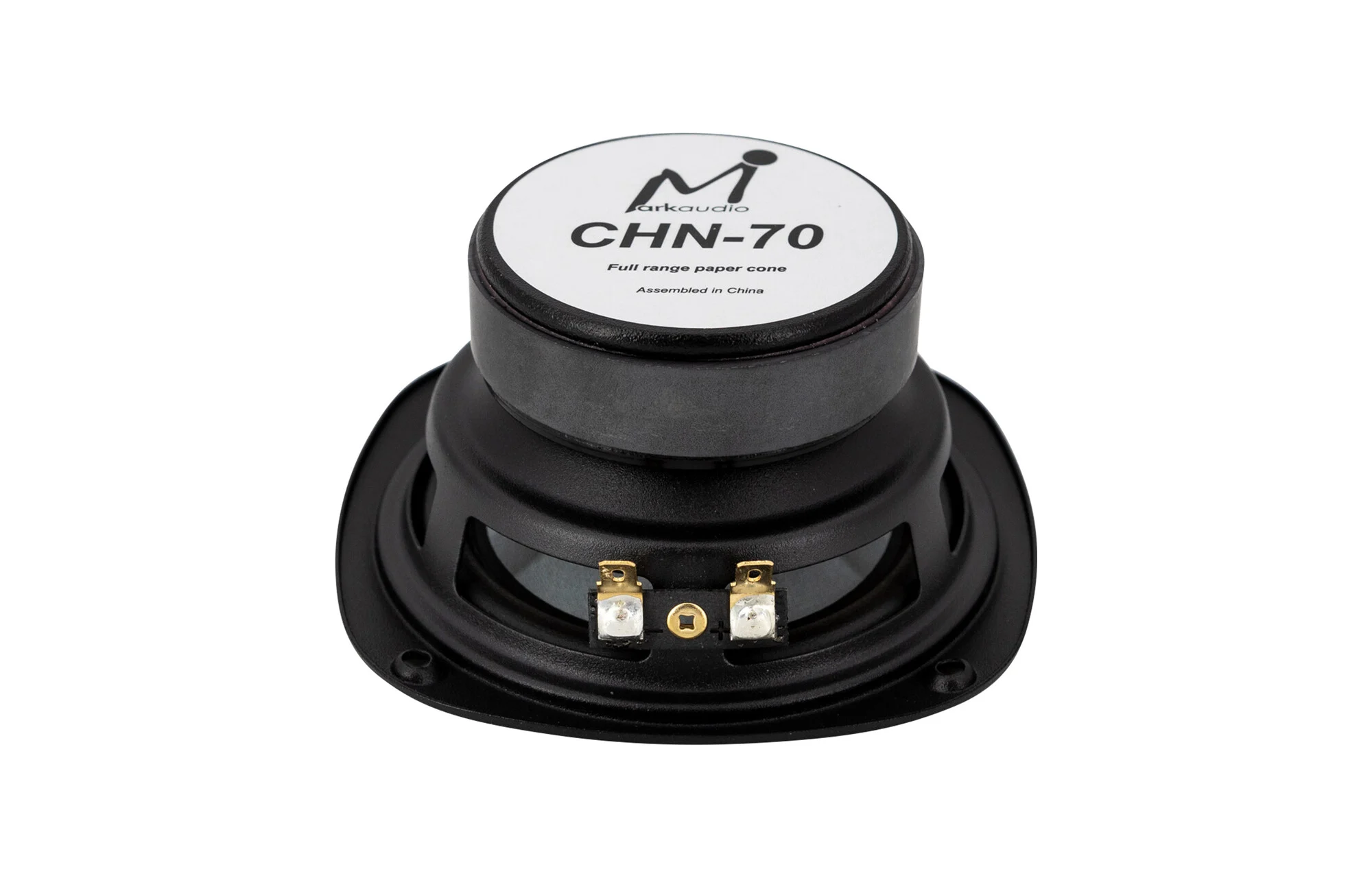

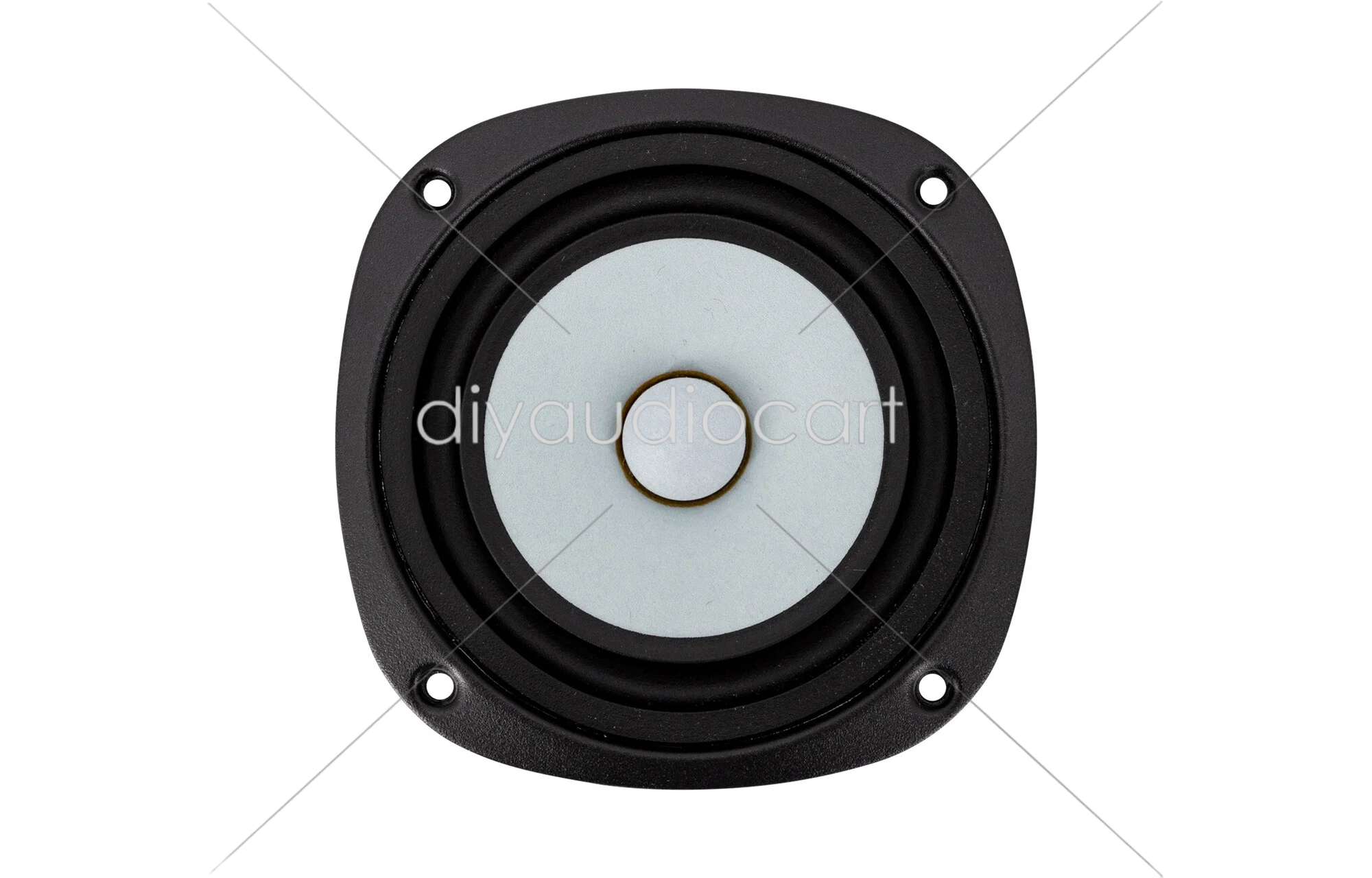

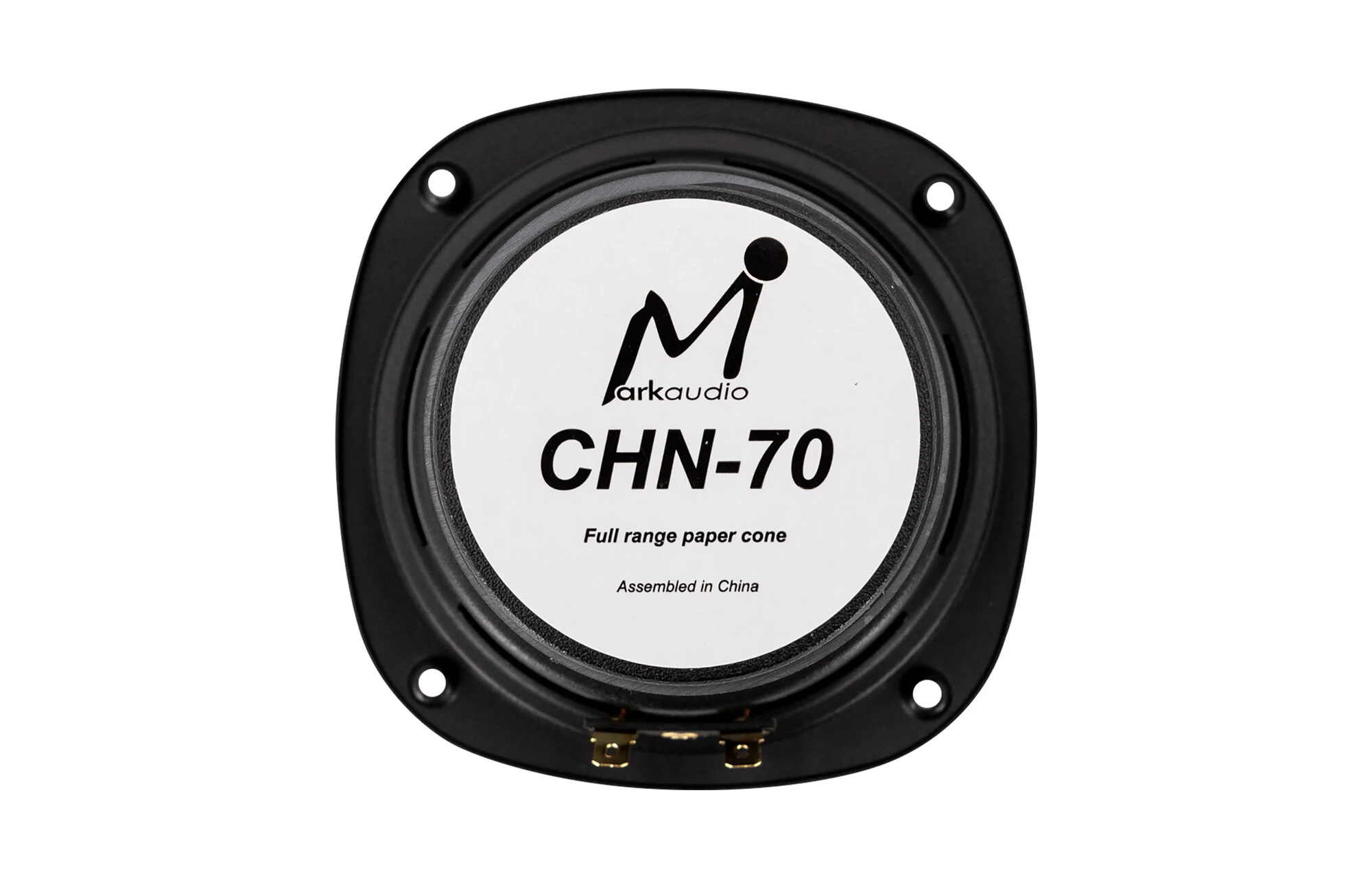

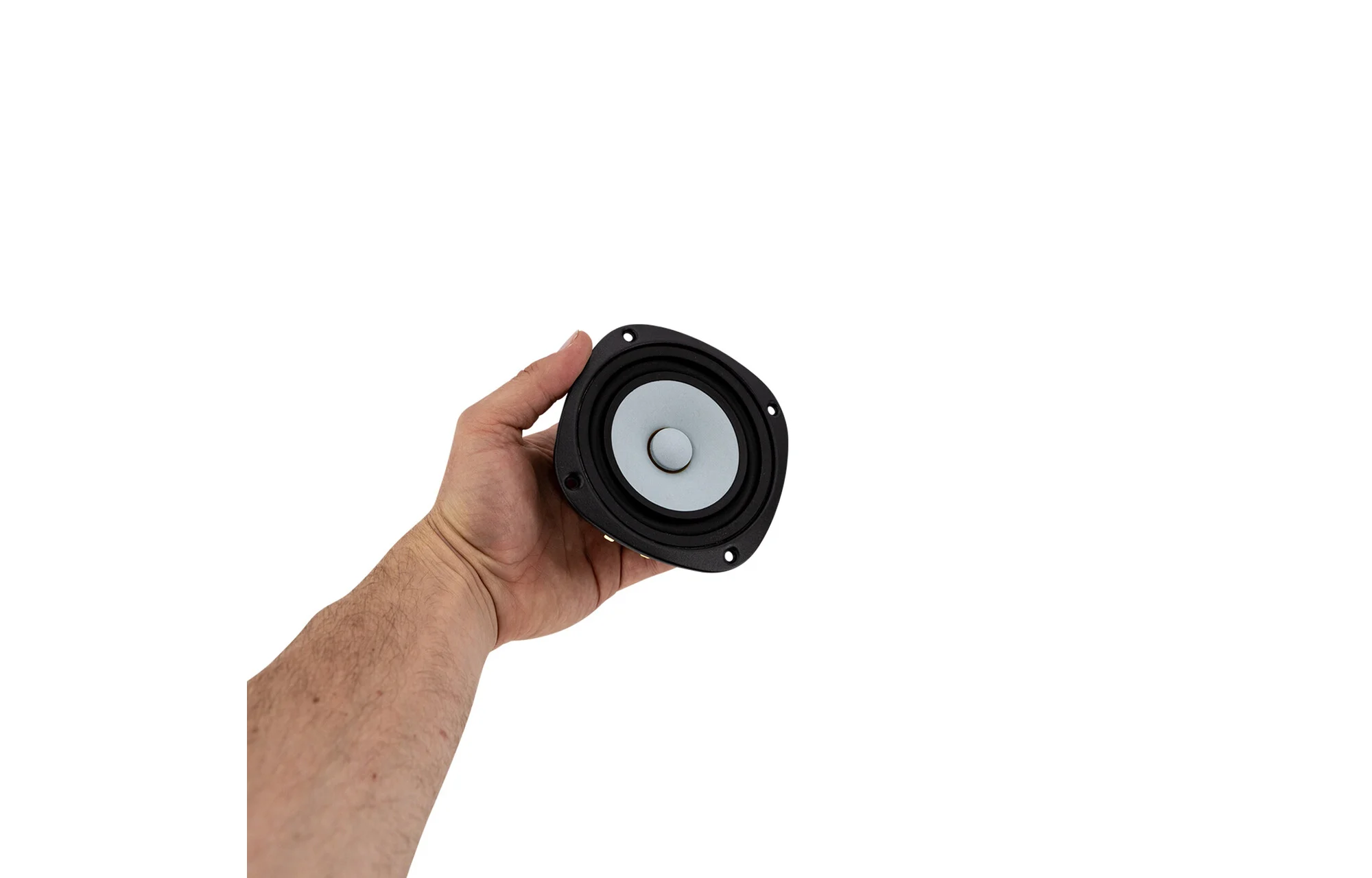

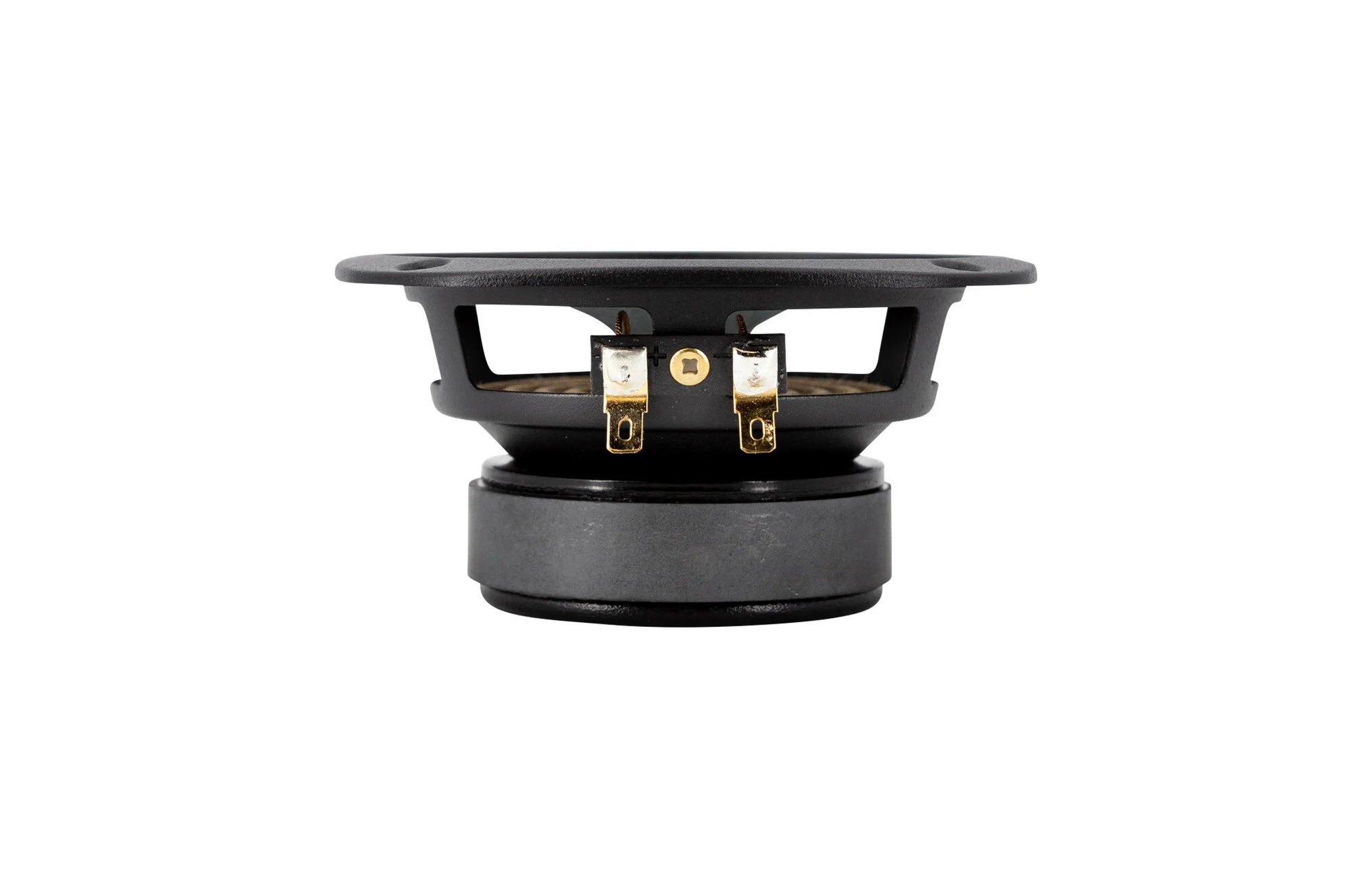

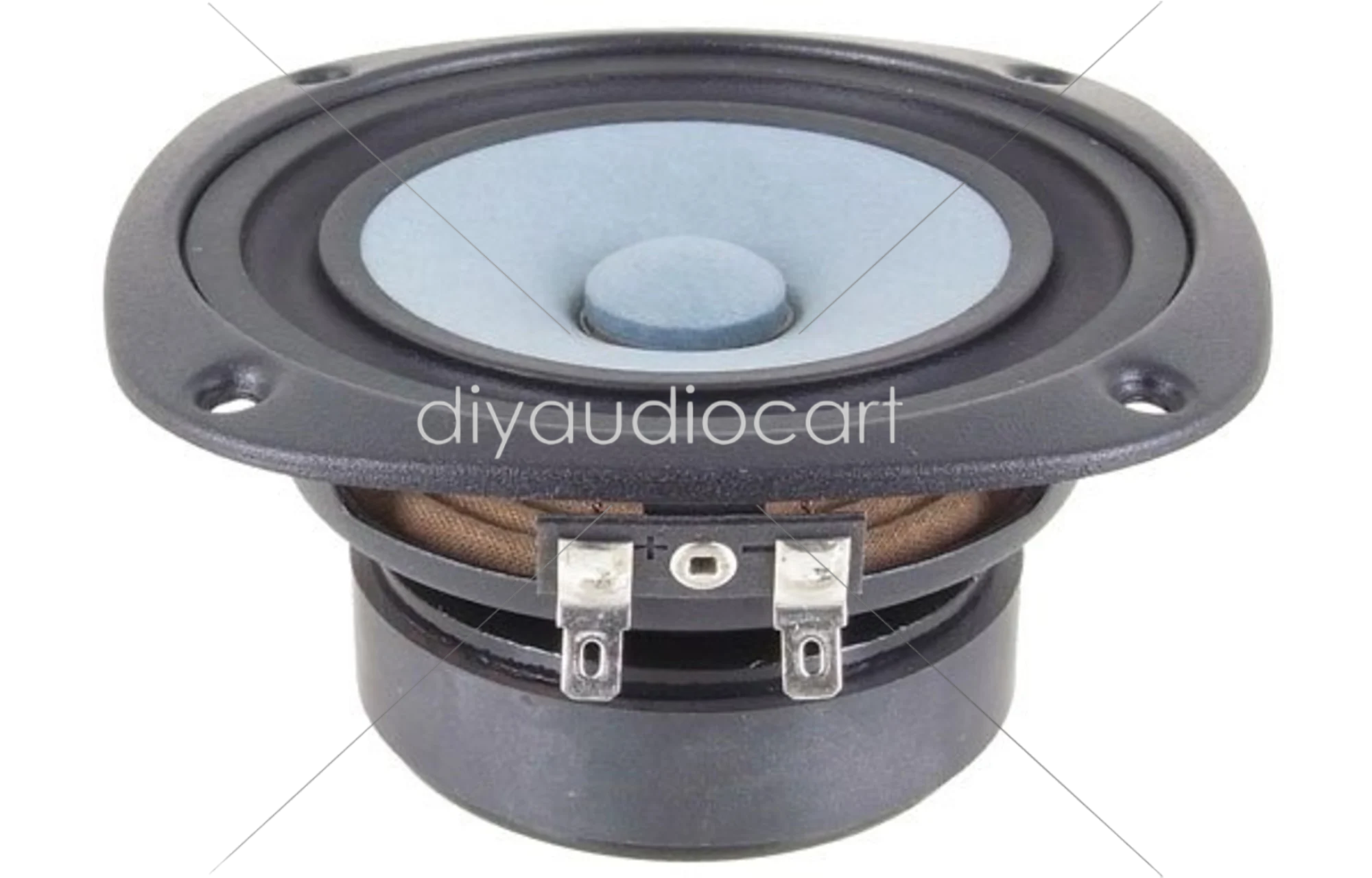

MarkAudio CHN-70 Natural Fullrange (4″/6ohm) – PAIR
₹5,145.00
11 in stock
MarkAudio CHN-70 Natural Fullrange (4″/6ohm) – PAIR
Product Description:
The CHN70 is a Full Range design for use in many audio applications. Designed by Mark Fenlon and Evan Yu for use by audio end-users who want a high performance driver at a lower cost. The main features of the CHN70 are:
1 – Full Range operation (45Hz to 20kHz in box)
2 – Natural sound (near flat response)
3 – Long throw power-train design (Mech Xmax = 4mm 1 way)
4 – Heavy duty pressed steel frame, damped design
5 – Easy surface mounting installation
The cone, coil and suspensions are all-new design. It profile shape is unique to this driver, to give it a neutral musical tone. The frame is made from 0.8mm high quality pressed steel with synthetic damping coating to reduce vibrations and for best environmental protection. The CHN’s sound character is natural, especially suitable for vocal reproduction. The CHN70 is suitable for sealed and ported box designs from 4 litres to 12 litres volume.
Â
Features:
70mm   Widerange drive unit
6ohm    single ferrite magnet
- 4in natural blue uncoated paper cone
- Broad operating range
- Low-profile cone –broad directivity pattern
- Long-stroke suspension
- Sculpted surface-mount steel basket
Specifications :
Revc | 5 Ohm |
Fo | 71.62 Hz |
Sd | 50.270 cm² |
Vas | 5.31 Ltr |
Cms | 1.479m M/N |
Mmd | 3.134m Kg |
Mms | 3.339 g |
BL | 3.403 TM |
Qms | 1.848 |
Qes | 0.649 |
Qts | 0.48 |
Levc | 17.917u H |
No | 0.00291 |
SPLo | 86.652 dB |
Pwr | 18 watts Nom |
X max | 4mm 1 way |
Cabinet plans and resource links
Note: Price is for a Pair
| Weight | 1300 g |
|---|---|
| Dimensions | 31 × 15 × 9 cm |
| Brand | |
| JAN | |
| Speaker Size | 4" |
| Speaker Type |
