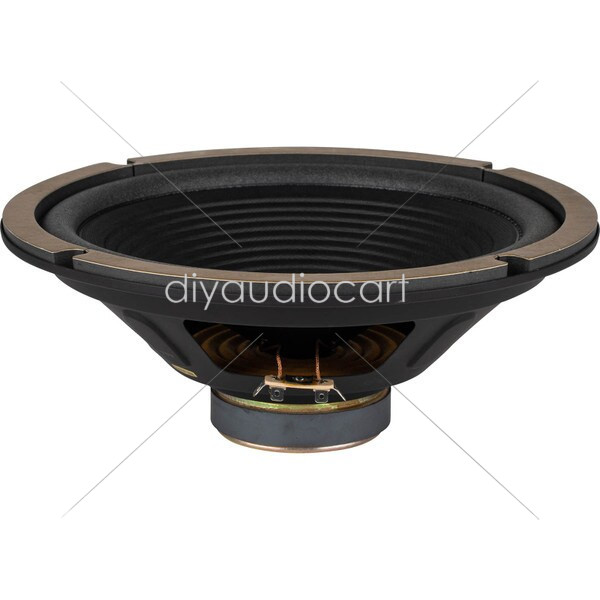

DAC - 10" Ribbed Paper Cone Woofer with Foam Surround 8 Ohm

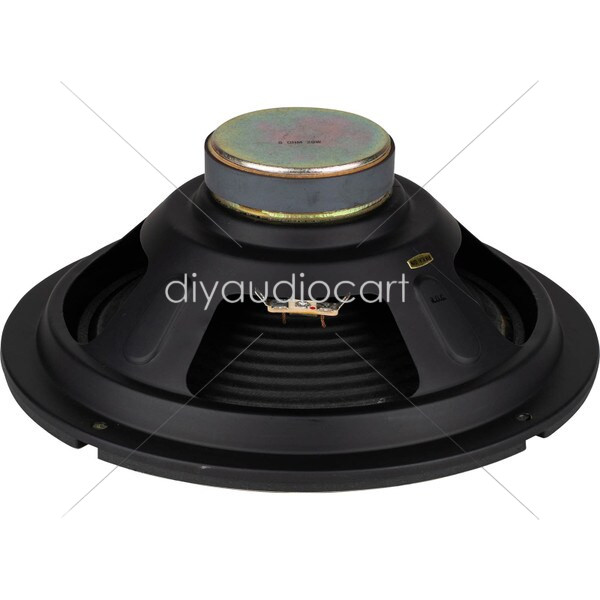

DAC - 10" Ribbed Paper Cone Woofer with Foam Surround 8 Ohm - Image 2

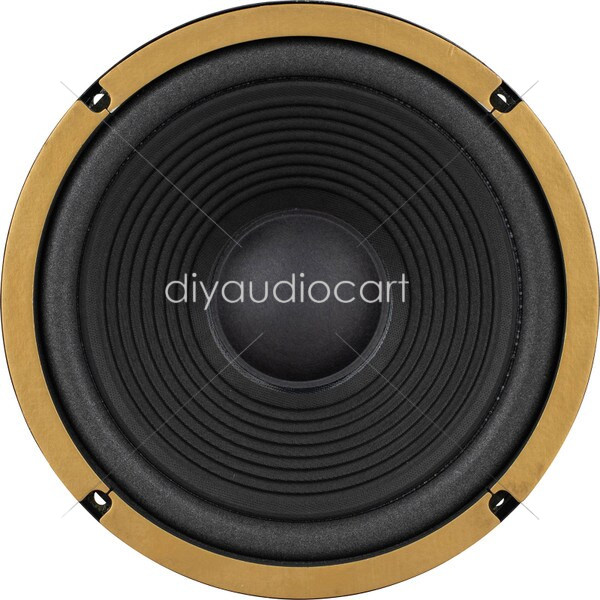

DAC - 10" Ribbed Paper Cone Woofer with Foam Surround 8 Ohm - Image 3

DAC – 10″ Ribbed Paper Cone Woofer with Foam Surround 8 Ohm

Name: DAC - 10" Ribbed Paper Cone Woofer with Foam Surround 8 Ohm
Brand: DAC
SKU: 10-10ounce
Availability: InStock

₹2,061.00

20 in stock

SKU: 10-10ounce Categories: Drivers, Woofer Tags: 10inch, Woofer Brand: DAC

DAC – 10″ Ribbed Paper Cone Woofer with Foam Surround 8 Ohm

Overview:

Featuring a ribbed paper cone and stylish gold gasket, this 10″ woofer is a great choice as a replacement for your vintage speakers, or as a cost effective option for a custom build. A ribbed paper cone adds stiffness while maintaining light weight moving mass, helping keep sensitivity high. The foam surround helps keep excursion clean and under control.

Key Features:

Ribbed paper cone for added stiffness
Foam surround for clean excursion
Stylish gold gasket

Product Details:

Brand	DAC
Model	10-10ounce
Unit of Measure	Each
Weight	2.5

Product Specification:

Nominal Diameter	10″
Bolt Circle Diameter	9.625
Power Handling (RMS)	20 Watts
Power Handling (MAX)	40 Watts
Impedance	8Ω
Frequency Response	30-2,000Hz
Sensitivity	88.73dB 2.83V/1m
Voice Coil Diameter	1″

Thiele Small Parameters:

Resonant Frequency (Fs)	32.97Hz
DC Resistance (Re)	6.564Ω
Voice Coil Inductance (Le)	0.4223mH
Mechanical Q (Qms)	8.042
Electromagnetic Q (Qes)	1.373
Total Q (Qts)	1.173
Compliance Equivalent Volume (Vas)	6.522ft³
Diaphragm Mass Inc. Airload (Mms)	22.08g
Maximum Linear Excursion (Xmax)	2.25mm
