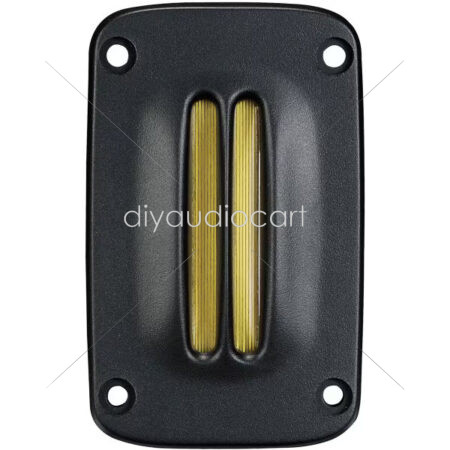

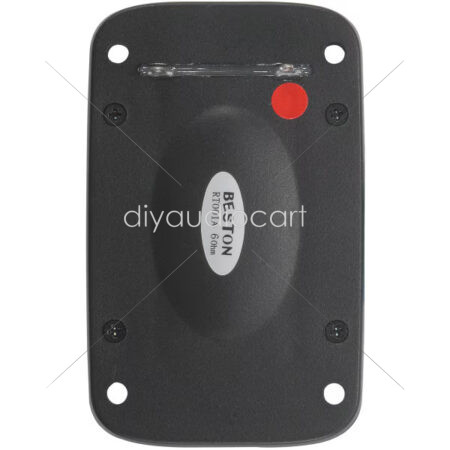

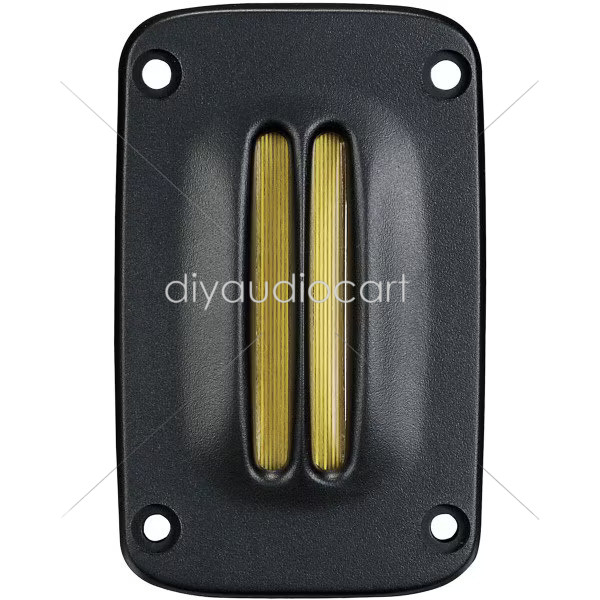

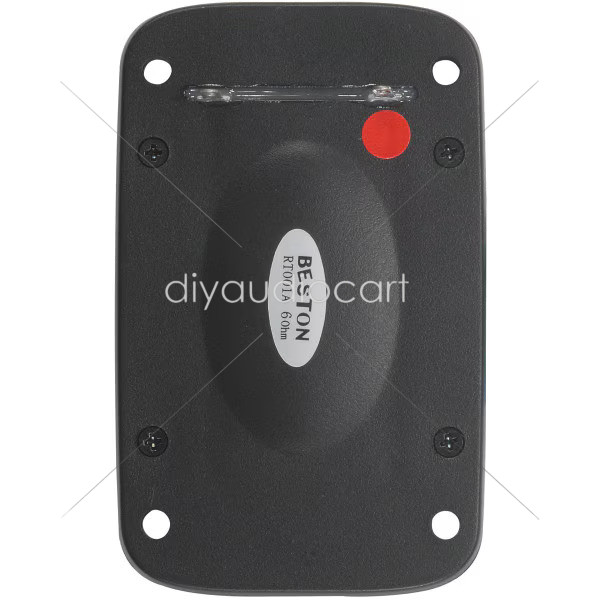

Beston RT001A Ribbon Tweeter 6Ohm

Overview:

The RT001A is perfect for compact 2-way and 3- or 4-way designs, as well as for use in multiples when incorporated into line arrays.A ribbon tweeter’s radiating surface approaches the theoretical ideal of a zero-mass audio source. The articulation, attack, and sonic transparency are quite impressive, and the diaphragm’s monolithic shape and orientation provide a broad horizontal and tightly controlled dispersion characteristic, which is ideal for many listening environments. Beston’s carefully sculpted waveguide faceplate further improves the tweeter’s linear emission of smooth, extended high frequencies. The RT001A is perfect for compact 2-way and 3- or 4-way designs, as well as for use in multiples when incorporated into line arrays. A third order (18 dB/octave) or higher crossover is recommended to achieve maximum power handling. Minimum recommended crossover frequency: 3,500 Hz.

Product Highlight:

• Patented ribbon design
• 3,000 Hz – 40,000 Hz frequency response
• High sensitivity
• Linear impedance
• Neodymium magnet structure for high flux and low weight
• Ultra-thin laminated aluminum diaphragm

 Product Details :

Product Specification:

Thiele -Small Parameters:

Mounting Information:

Beston RT001A Specifications
