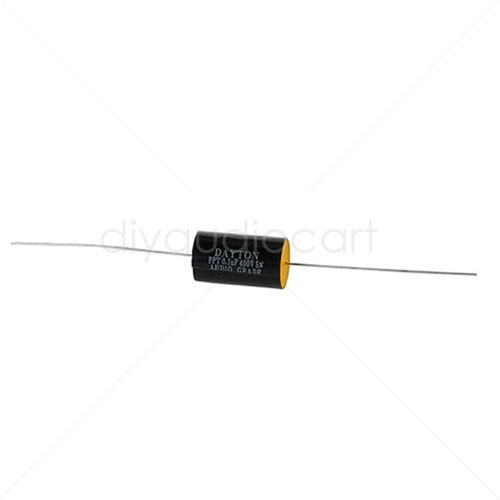

Dayton Audio DFFC-0.10 0.10uF 400V By-Pass Capacitor

Overview:

The Dayton Audio film and foil polypropylene capacitors are ideal for bypass use, have low ESR and superior sonic detail. Values are 400 VDC with 5% tolerance.

Specifications:

• Value: 0.10 µF
• Rated: 400 VDC
• Tolerance: ±5%
• Dissipation Factor: Max 0.001 (0.1%) @ 1 KHz
• Operating Range: -55°C to 105°C
• Dielectric Strength: 150%
• Insulation Resistance: 10,000 M? x µF
• Life Test: 1,000 hours @ 85°C, 150% rated voltage
• Dimensions: 12 mm Dia. x 18 mm L.
