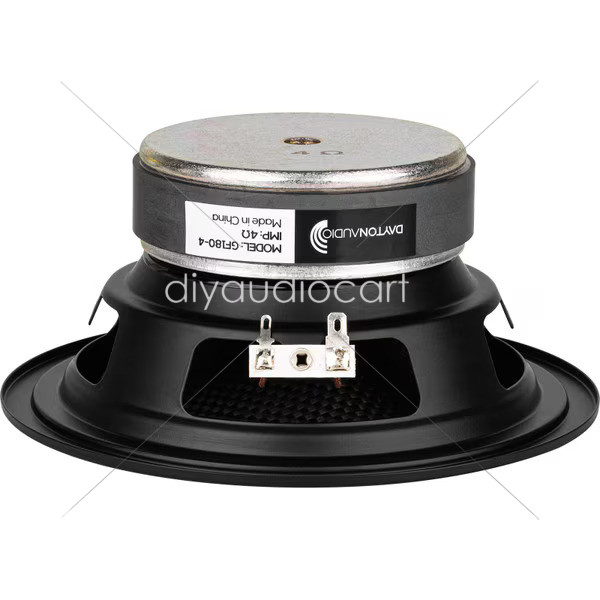

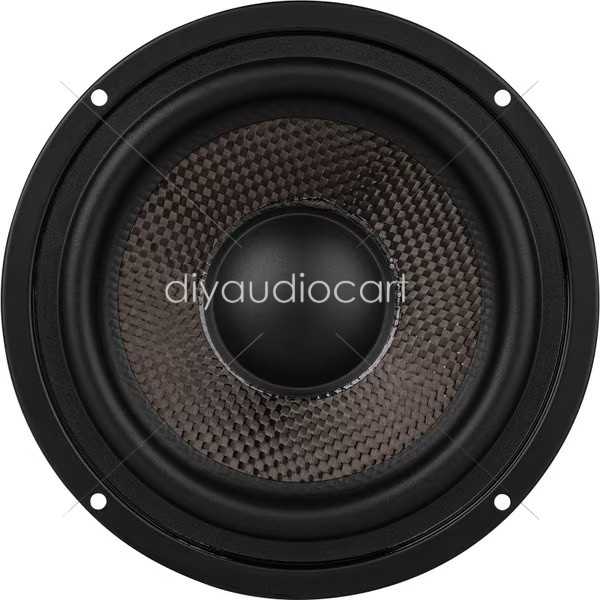

Dayton Audio GF180-4 6-1/2″ Glass Fiber Cone Woofer 4 Ohm
₹3,956.00
40 in stock
Dayton Audio GF180-4 6-1/2″ Glass Fiber Cone Woofer 4 Ohm
Overview:
Dayton Audio’s GF180-4 6-1/2” glass fiber cone woofer is built to produce powerful bass with smooth midrange response. The woven fiberglass cone and rubber surround damps cone resonances allowing an easy transition to tweeters when crossed over at 2,000 Hz. This affordable woofer is a great choice for 2-way bookshelf speaker designs.
Key Features:
- Woven fiberglass cone lowers resonances for smooth response and natural sound
- Rubber surround helps damp the outside edge of the cone improving high frequency response
- 4-layer voice coil on an aluminum former provides excellent heat dissipation
- Vented pole piece releases air trapped under the dustcap for quiet operation
- Low-profile frame minimizes diffraction making these drivers suitable for surface mount applications
Product Details:
Brand | Dayton Audio |
Model | GF180-4 |
Unit of Measure | Each |
Weight | 3.6 |
Product Specification:
Nominal Diameter | 6-1/2″ |
Power Handling (RMS) | 40 Watts |
| Power Handling (MAX) | 80 Watts |
Sensitivity | 90.7dB 2.83V/1m |
Voice Coil Diameter | 1″ |
Frequency Response | 45 to 5,000Hz |
| Impedance | 4Ω |
Thiele Small Parameters:
Resonant Frequency (Fs) | 49Hz |
DC Resistance (Re) | 4.4Ω |
Voice Coil Inductance (Le) | 1.1mH |
Mechanical Q (Qms) | 3.43 |
Electromagnetic Q (Qes) | 0.48 |
Total Q (Qts) | 0.42 |
Compliance Equivalent Volume (Vas) | 0.58ft³ |
Mechanical Compliance of Suspension (Cms) | 0.7mm/N |
BL Product (BL) | 6.5T·m |
Diaphragm Mass Inc. Airload (Mms) | 14.8g |
Maximum Linear Excursion (Xmax) | 4mm |
Surface Area of Cone (Sd) | 130.2cm² |
Materials of Construction:
Cone Material | Fiberglass |
Surround Material | Rubber |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Aluminum |
| Basket / Frame Material | Steel |
Magnet Material | Ferrite |
Mounting Information:
Overall Outside Diameter | 7″ |
| Baffle Cutout Diameter | 5.67″ |
| Depth | 3.19″ |
| # Mounting Holes | 4 |
Dayton Audio GF180-4 Graphs/FRD/ZMA Data Files
Dayton Audio GF180-4 Specifications
| Weight | 1630 g |
|---|---|
| Dimensions | 21 × 20 × 10 cm |
| Brand |
