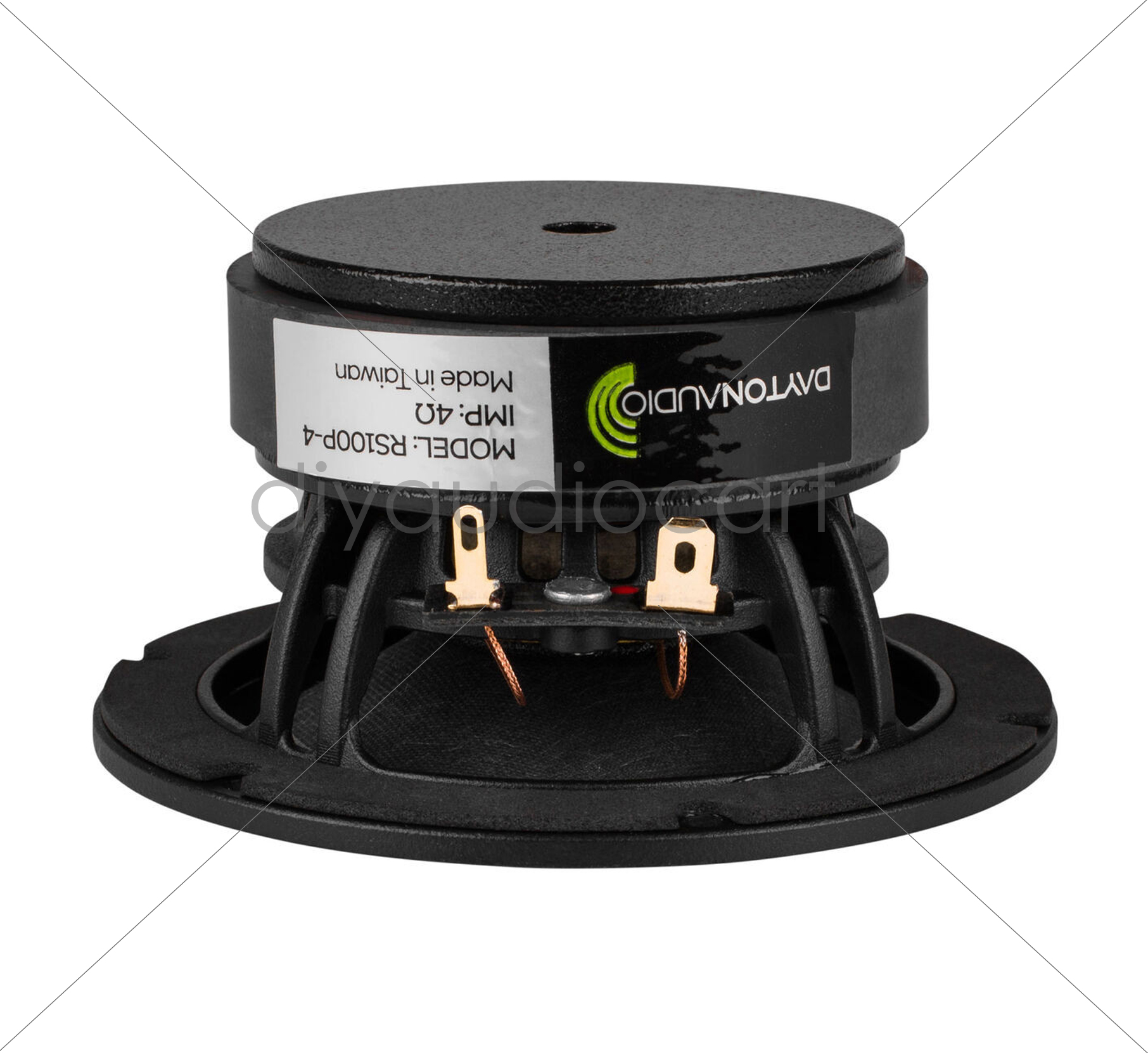

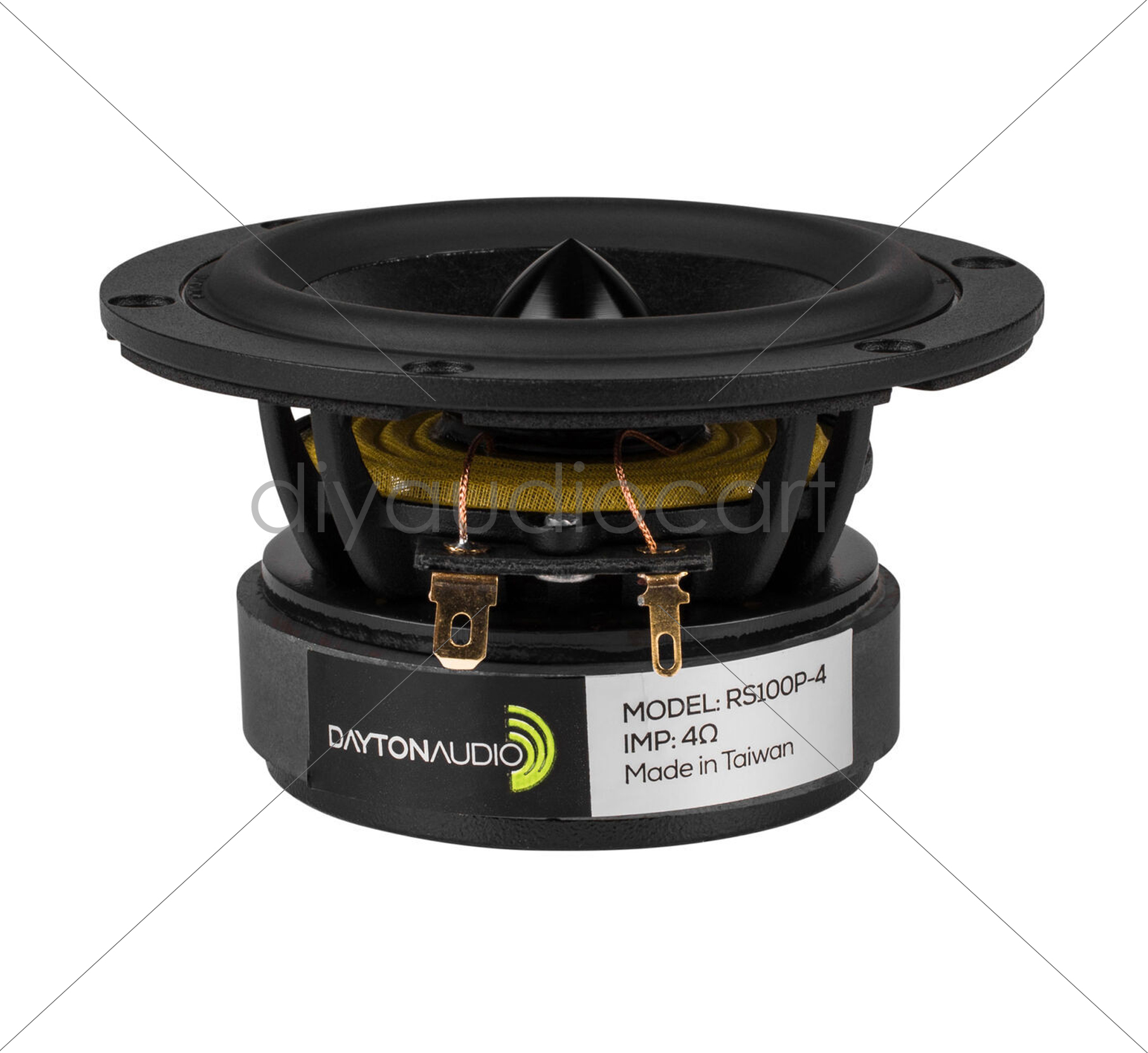

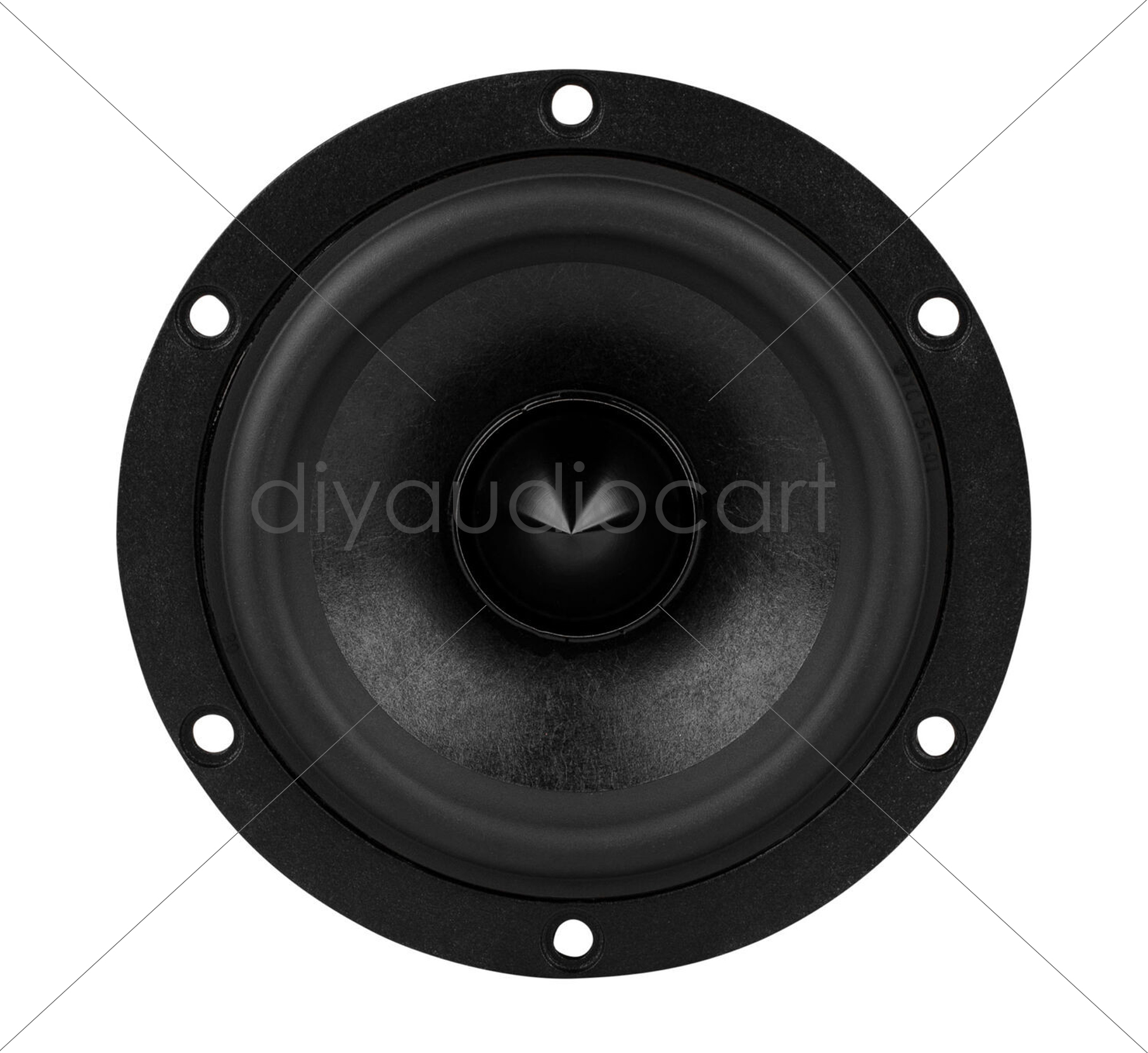

Dayton Audio RS100P-4 4″ Reference Paper Midwoofer 4 Ohm
₹4,935.00
50 in stock
Dayton Audio RS100P-4 4″ Reference Paper Midwoofer 4 Ohm
Overview:
Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.
Key Features:
- Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
- Similar cosmetics and design features as original Reference Series with low-distortion
- Perfect for use a woofer, mid woofer, or dedicated midrange driver
Product details:
Brand | Dayton Audio |
Model | RS100P-4 |
Unit of Measure | Each |
Each | 1.4 |
Product Specifications:
Nominal Diameter | 4″ |
Bolt Circle Diameter | 3.54 |
Power Handling (RMS) | 30 Watts |
Power Handling (MAX) | 45 Watts |
Impedance | 4Ω |
Frequency Response | 85 to 13,500Hz |
Sensitivity | 88.5dB 2.83V/1m |
Thiele-Small Parameters:
Resonant Frequency (Fs) | 84.8Hz |
DC Resistance (Re) | 3Ω |
Voice Coil Inductance (Le) | 0.26mH |
Mechanical Q (Qms) | 2.67 |
Electromagnetic Q (Qes) | 0.67 |
Total Q (Qts) | 0.67 |
Compliance Equivalent Volume (Vas) | 0.07ft³ |
Mechanical Compliance of Suspension (Cms) | 0.95mm/N |
BL Product (BL) | 2.95T·m |
Diaphragm Mass Inc. Airload (Mms) | 3.7g |
Maximum Linear Excursion (Xmax) | 4mm |
Surface Area of Cone (Sd) | 36.3cm² |
Materials of Construction:
Cone Material | Paper / Kevlar |
Surround Material | Rubber |
Basket / Frame Material | Cast Aluminum |
Magnet Material | Ferrite |
Mounting Information:
Overall Outside Diameter | 3.86″ |
Baffle Cutout Diameter | 3.04″ |
Depth | 2″ |
# Mounting Holes | 6 |
Dayton Audio RS100P-4 Specifications
Dayton Audio RS100P-4 Graphs/FRD/ZMA Data File
| Weight | 610 g |
|---|---|
| Dimensions | 10 × 10 × 8 cm |
