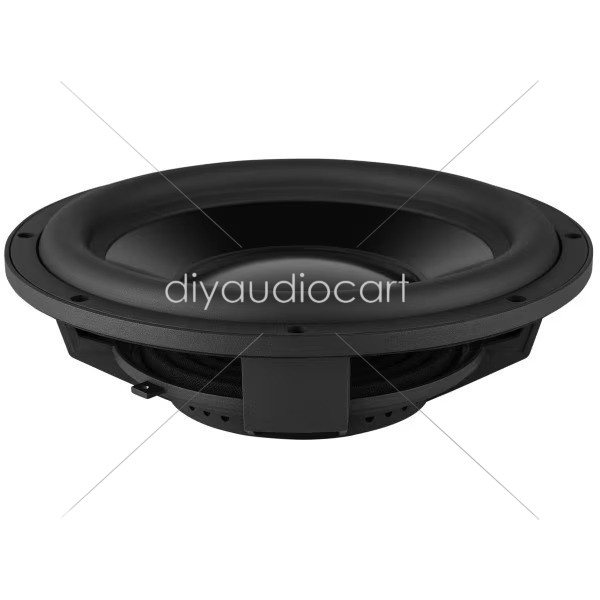

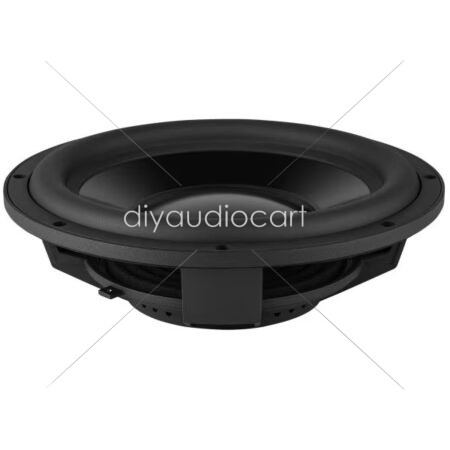

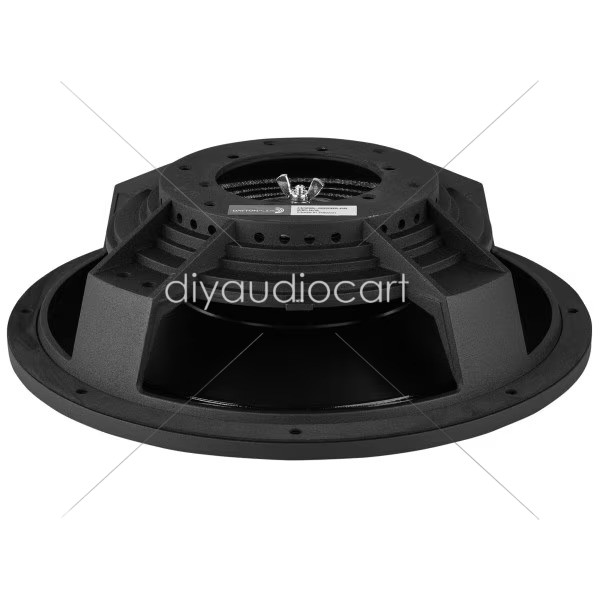

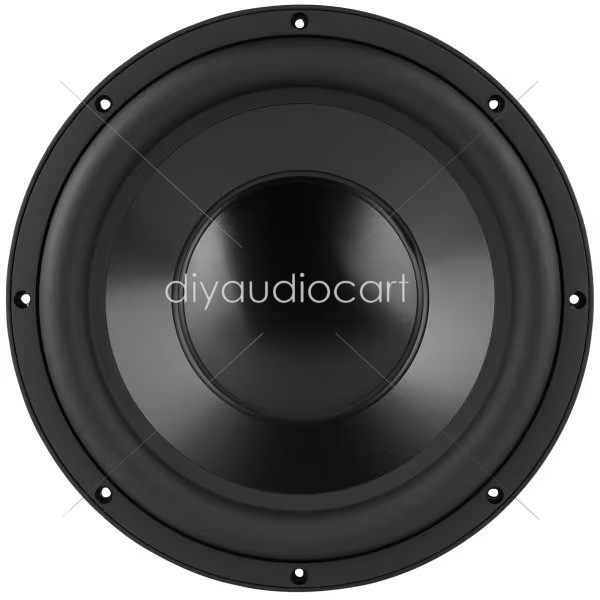

Dayton Audio RSS315-PR 12″ Reference Series Aluminum Cone Passive Radiator
₹15,147.00 Ex GST
5 in stock
Dayton Audio RSS315-PR 12″ Reference Series Aluminum Cone Passive Radiator
Overview:
Dayton Audio’s RSS315-PR 12″ passive radiator is the ideal choice for tuning small enclosures lower than possible with a conventional port. With a thick aluminum cone, cast frame, rubber surround, and incredible excursion capabilities (52 mm peak to peak) this radiator is perfect for today’s high excursion subwoofers.
Key Features:
- SMS™ (Sandwich Mass System) permits greater linearity by minimizing angular torque
- Durable yet compliant suspension provides substantial linear travel and mechanical stability
- Rigid cast aluminum frame with thick black anodized aluminum cone
- Threaded rod with lock nut for easy adjustment of tuning frequency

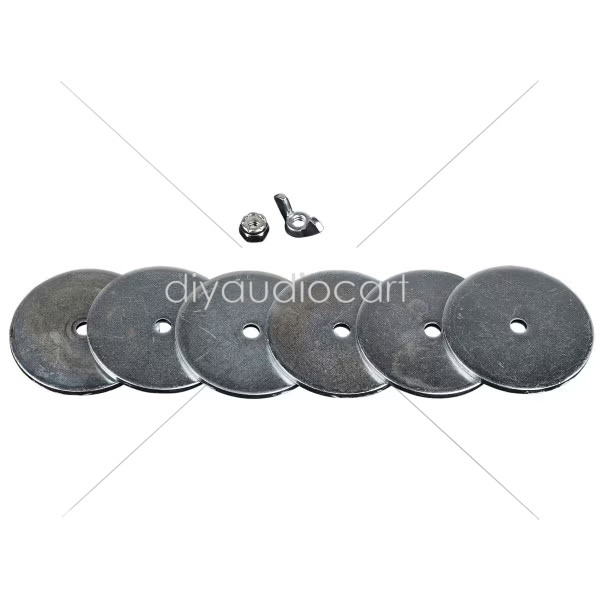

- Includes six 75 gram weighted disks for simple tuning adjustment
- Cosmetically identical to the popular Reference Series subwoofer lines
Product Details:
Brand | Dayton Audio |
Model | RSS315-PR |
Unit of Measure | Each |
Weight | 5.4 |
Thiele Small Parameters:
Resonant Frequency (Fs) | 21Hz |
Mechanical Q (Qms) | 4.79 |
Nominal Diameter | 12″ |
Compliance Equivalent Volume (Vas) | 2.79ft³ |
Mechanical Compliance of Suspension (Cms) | 0.22mm/N |
Diaphragm Mass Inc. Airload (Mms) | 300g |
Maximum Linear Excursion (Xmax) | 26mm |
Surface Area of Cone (Sd) | 506.7cm² |
Materials of Construction:
Cone Material | Aluminum |
Surround Material | Rubber |
| Basket / Frame Material | Basket / Frame Material |
Mounting Information:
Overall Outside Diameter | 12.36″ |
| Baffle Cutout Diameter | 11.10″ |
| Depth | 3.43″ |
| # Mounting Holes | 8 |
Dayton Audio RSS315PR Specifications
| Weight | 2440 g |
|---|---|
| Dimensions | 34 × 34 × 14 cm |
| Brand | |
| Speaker Size | 12" |
| Speaker Type |
