NEW

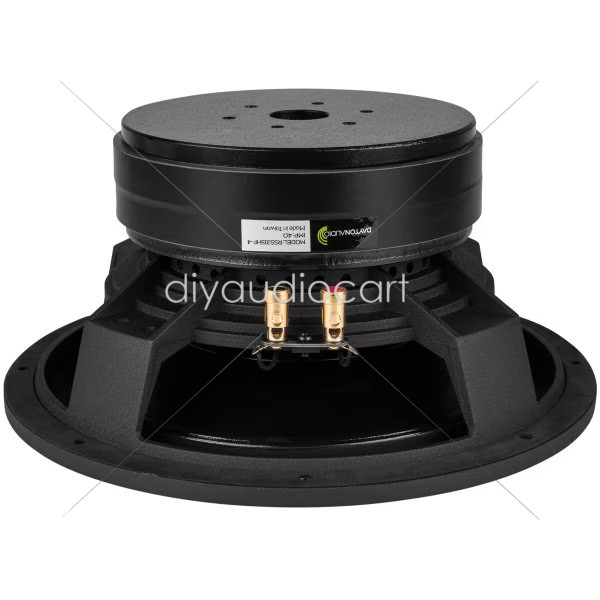

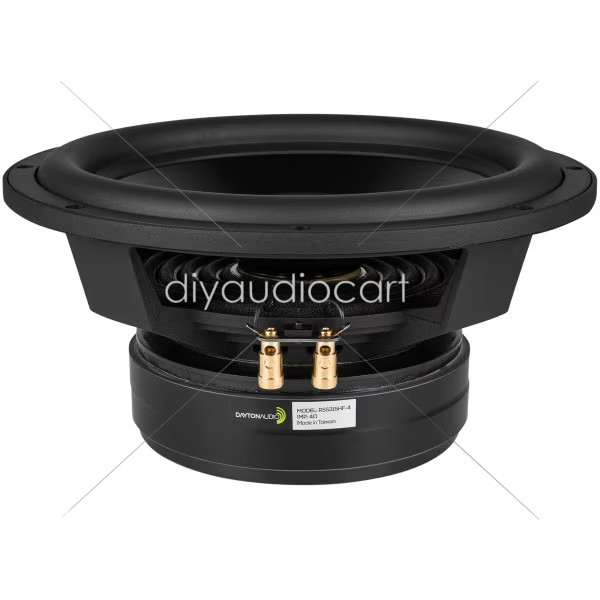

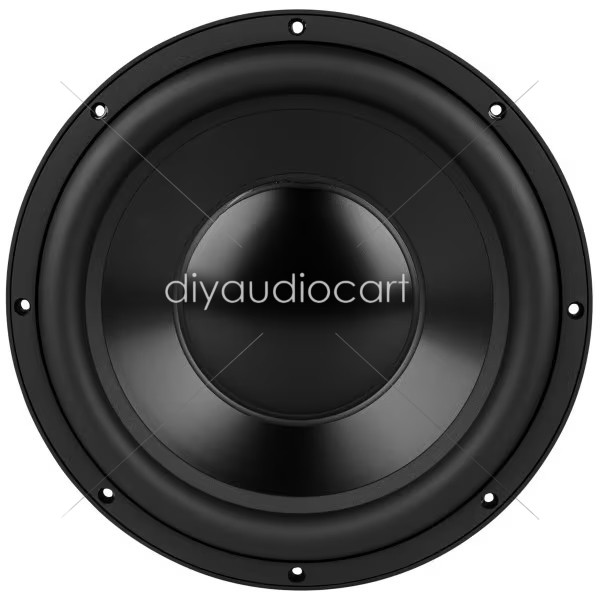

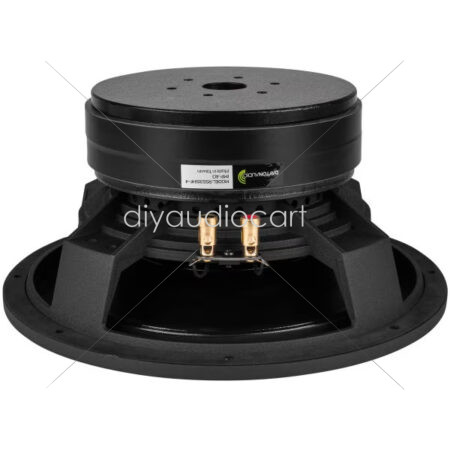

Dayton Audio RSS315HF-4 12" Reference Series HF Subwoofer 4 Ohm

Dayton Audio RSS315HF-4 12" Reference Series HF Subwoofer 4 Ohm - Image 2

Dayton Audio RSS315HF-4 12" Reference Series HF Subwoofer 4 Ohm - Image 3

Dayton Audio RSS315HF-4 12″ Reference Series HF Subwoofer 4 Ohm

Name: Dayton Audio RSS315HF-4 12" Reference Series HF Subwoofer 4 Ohm
Brand: Dayton Audio
SKU: RSS315HF-4
Availability: InStock

₹32,515.00

5 in stock

SKU: RSS315HF-4 Categories: Drivers, Subwoofer Tags: 12inch, 4Ohm, Dayton, HFSubwoofer, ReferenceSeries, RSS315HF-4 Brand: Dayton Audio

Dayton Audio RSS315HF-4 12″ Reference Series HF Subwoofer 4 Ohm

Overview:

The Dayton Audio Reference Series subwoofer speakers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.

Key Features:

Extensively vented motor eliminates compression and allows quiet excursion
Lightweight black anodized aluminum cone for rigidity and lower moving mass
Triple shorting ring motor for ultra-low distortion
2-layer coil for reduced back EMF
Suitable for sealed or vented enclosures
Highest quality materials throughout for long-lasting performance

Product Details:

Brand	Dayton Audio
Model	RSS315HF-4
Unit of Measure	Each
Weight	25

Product Specification:

Nominal Diameter	12″
Power Handling (RMS)	400 Watts
Power Handling (MAX)	800 Watts
Sensitivity	90.3dB 2.83V/1m
Voice Coil Diameter	2.5″
Frequency Response	23 to 1,000Hz
Impedance	4Ω

Thiele Small Parameters:

Resonant Frequency (Fs)	24.2Hz
DC Resistance (Re)	3.1Ω
Voice Coil Inductance (Le)	0.96mH
Mechanical Q (Qms)	2.83
Electromagnetic Q (Qes)	0.45
Total Q (Qts)	0.39
Compliance Equivalent Volume (Vas)	2.97ft³
Mechanical Compliance of Suspension (Cms)	0.23mm/N
BL Product (BL)	13.99T·m
Diaphragm Mass Inc. Airload (Mms)	188g
Maximum Linear Excursion (Xmax)	14.3mm
Surface Area of Cone (Sd)	514.7cm²
