      Home / Drivers / Subwoofer
      New
      Add to wishlist

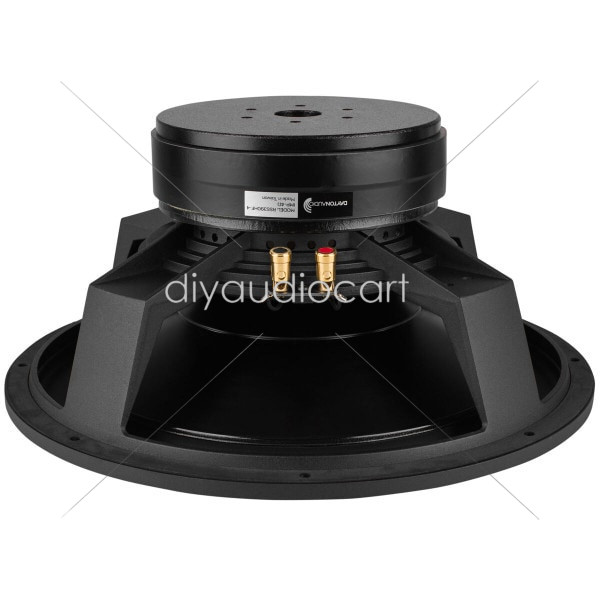

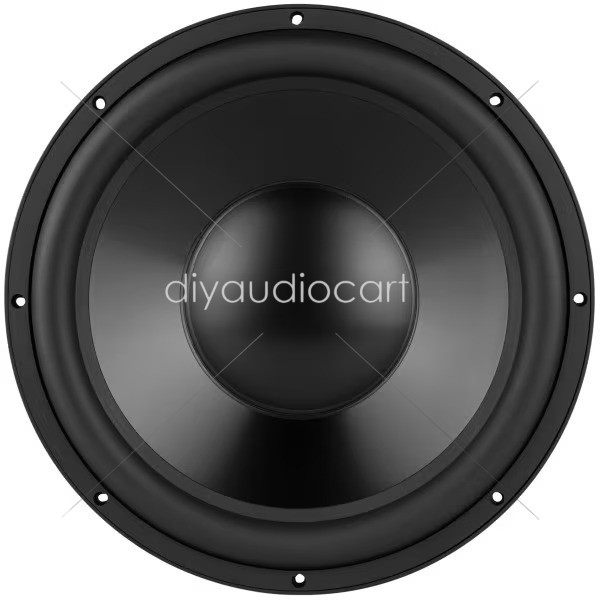

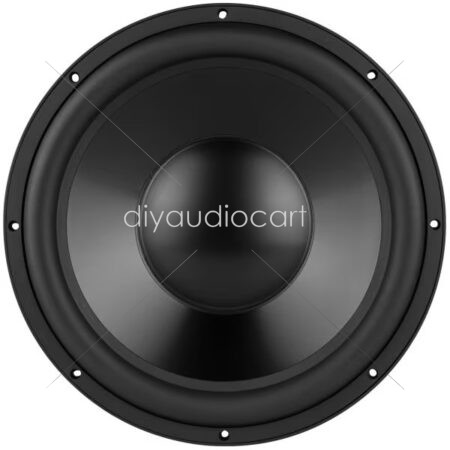

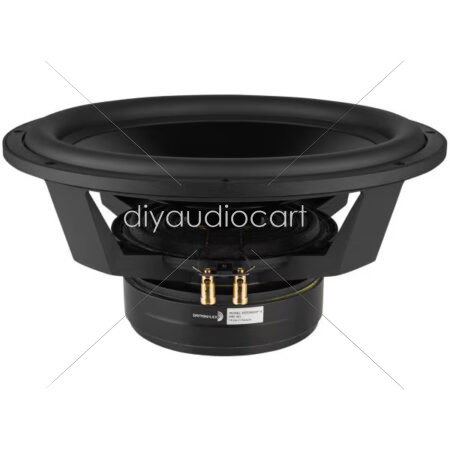

      Dayton Audio RSS390HF-4 15" Reference Series HF Subwoofer 4 Ohm
      Dayton Audio RSS390HF-4 15" Reference Series HF Subwoofer 4 Ohm - Image 2
      Dayton Audio RSS390HF-4 15" Reference Series HF Subwoofer 4 Ohm - Image 3

      Dayton Audio RSS390HF-4 15″ Reference Series HF Subwoofer 4 Ohm

      ₹41,208.00

      Out of stock

      SKU: RSS390HF-4 Categories: Drivers, Subwoofer Tags: 15inch, DaytonAudio, ReferenceSeriesHF, RSS390HF-4, Subwoofer Brand: Dayton Audio

      You may also like…

      • Wavecor WF152BD05 6" Balanced Drive Paper Cone Mid-Woofer 4 Ohm Wavecor WF152BD05 6" Balanced Drive Paper Cone Mid-Woofer 4Ohm ₹9,910.00
      • Wavecor WF152BD06 6" Balanced Drive Paper Cone Mid-Woofer 8 Ohm Wavecor WF152BD06 6" Balanced Drive Paper Cone Mid-Woofer 8 Ohm ₹9,436.00
      • Dayton Audio - RS150-4 - 6" Reference Woofer 4 Ohm Dayton Audio RS150-4 6" Reference Woofer 4Ohm ₹7,067.00
      • Wavecor SW178WA01 7" Aluminum Cone Subwoofer 8 Ohm Wavecor SW178WA01 7" Aluminum Cone Subwoofer 8Ohm ₹8,679.00
      Recently Viewed Products
      • DAC - 16WBD88A 6-1/2" Paper Cone Speaker 8 Ohm DAC - 16WBD88A 6-1/2" Paper Cone Speaker 8 Ohm ₹1,270.00
      • Description
      • Additional information
      • Reviews (0)

      Dayton Audio RSS390HF-4 15″ Reference Series HF Subwoofer 4 Ohm



      Overview:

      Engineered to provide high-volume, low-distortion bass in larger rooms and other highly demanding applications, the Dayton Audio RSS390HF-4 15″ Reference Series subwoofer speaker offers the perfect combination of high definition sound quality and low frequency impact.

      The Dayton Audio Reference Series RSS390HF-4 15″ speakers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low distortion. Second, third, and intermodulation distortion are kept extremely low by utilizing three magnetic short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look. Choose the high-fidelity version for home systems when you are looking for clean, low bass and are not restricted by cabinet size.



      Key Features:

      • Extensively vented motor eliminates compression and allows quiet excursion
      • Lightweight black anodized aluminum cone for rigidity and lower moving mass
      • Triple shorting ring motor for ultra-low distortion
      • 2-layer coil for reduced back EMF
      • Suitable for sealed or vented enclosures
      • Highest quality materials throughout for long-lasting performance



      Product Details:

      Brand

      Dayton Audio

      Model

      RSS390HF-4

      Unit of Measure

      Each

      Weight

      30



      product specification:

      Nominal Diameter

      15″

      Power Handling (RMS)

      500 Watts

      Power Handling (MAX)

      1000 Watts

      Impedance

      4Ω

      Frequency Response

      18 to 800Hz

      Sensitivity

      91.2dB 2.83V/1m



      Thiele  Small Parameters:

      Resonant Frequency (Fs)

      19.5Hz

      DC Resistance (Re)

      3Ω

      Voice Coil Inductance (Le)

      0.92mH

      Mechanical Q (Qms)

      3.02

      Electromagnetic Q (Qes)

      0.5

      Total Q (Qts)

      0.43

      Compliance Equivalent Volume (Vas)

      7.49ft³

      Mechanical Compliance of Suspension (Cms)

      0.22mm/N

      BL Product (BL)

      15T·m

      Diaphragm Mass Inc. Airload (Mms)

      306g

      Maximum Linear Excursion (Xmax)

      14mm



      Materials of Construction:

      Cone Material

      Aluminum

      Surround Material

      Rubber

      Voice Coil Wire Material

      Copper

      Voice Coil Former

      Aluminum

      Basket / Frame Material

      Cast Aluminum

      Magnet Material

      Ferrite



      Mounting Information:

      Overall Outside Diameter

                                    15.29″
      Baffle Cutout Diameter                              14.01″
      Depth                               7.01″
      # Mounting Holes                                 8





      Dayton Audio RSS390HF-4 Specifications Sheet

      Dayton Audio RSS390HF-4 Graphs/FRD/ZMA Data File

      Weight13400 g
      Dimensions44 × 43 × 26 cm
      Brand

      Dayton Audio

      Reviews

      There are no reviews yet.

      Only logged in customers who have purchased this product may leave a review.
