New
GRS 1TD1-8 1″ Dome Tweeter 8 Ohm
₹988.00 Ex GST
78 in stock

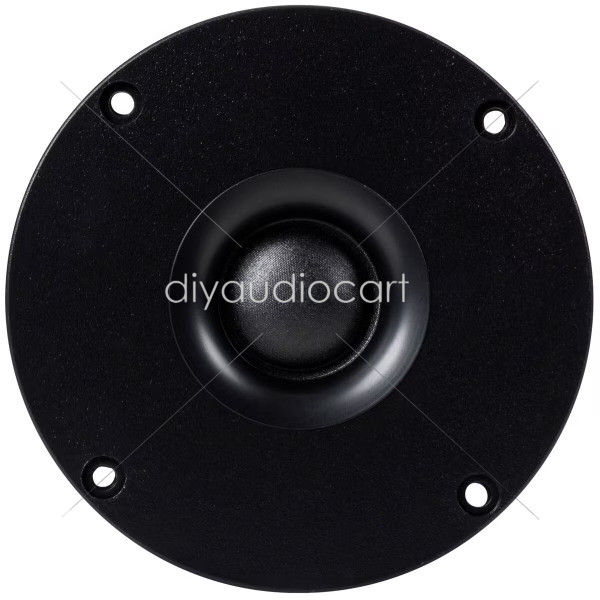

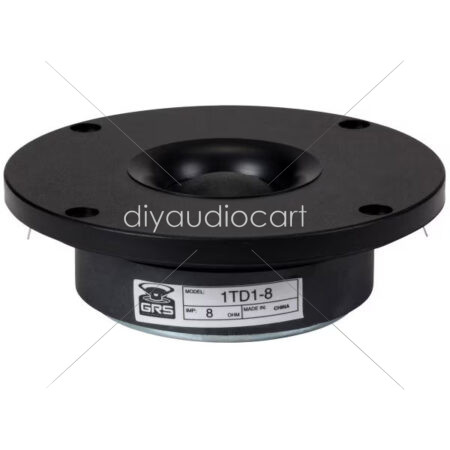

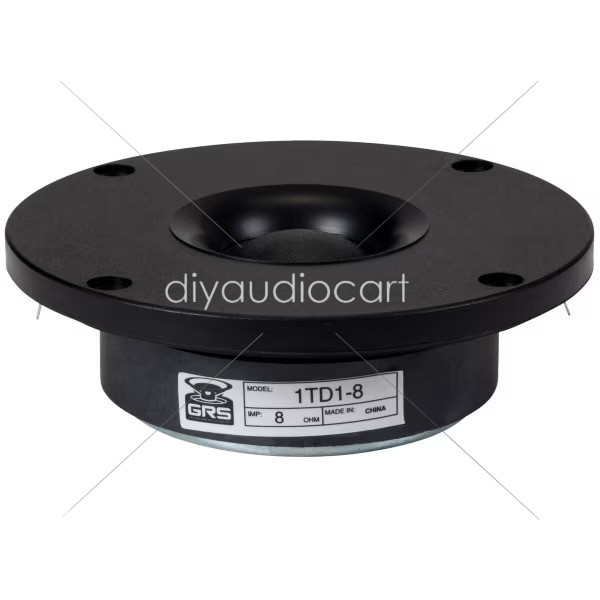

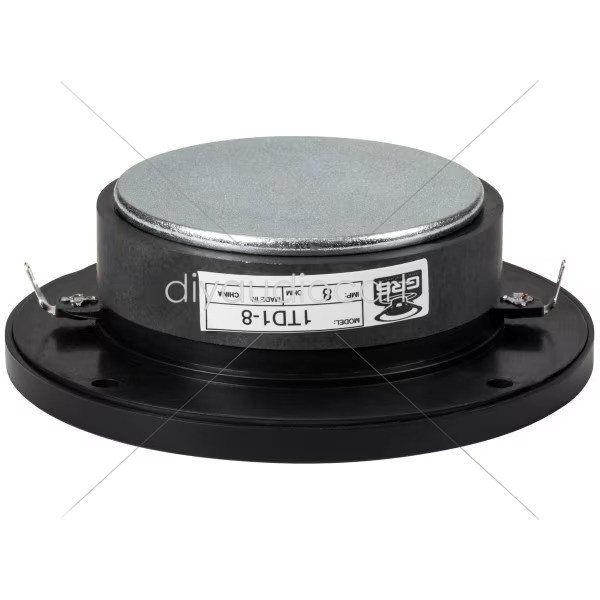

GRS 1TD1-8 1″ Dome Tweeter 8 Ohm
Overview:
The GRS 1TD1-8 is an economical replacement for dome tweeters in a wide range of classic speakers. It’s also a great choice for new budget builds!
Features:
- Fabric dome with 1″ voice coil
- Round injection-molded faceplate
- Economical replacement for dome tweeters
- Smooth, detailed sound quality
Product Details:
Brand | GRS |
Model | 1TD1-8 |
Unit of Measure | Each |
Weight | 1.15 |
Product Specifications:
Nominal Diameter | 1″ |
Cutout Diameter | 2.875 |
Tweeter Type | Soft Dome |
Power Handling (RMS) | 50 Watts |
Impedance | 8Ω |
Frequency Response | 2,200 to 20,000Hz |
Sensitivity | 90dB 2.83V/1m |
Thiele-Small Parameters
Resonant Frequency (Fs) | 1130Hz |
DC Resistance (Re) | 7.48Ω |
Voice Coil Inductance (Le) | 0.11mH |
Mechanical Q (Qms) | 3.29 |
Electromagnetic Q (Qes) | 1.84 |
Total Q (Qts) | 1.18 |
Mounting Information
Overall Outside Diameter | 4.06″ |
Depth | 1.25″ |
GRS 1TD1-8 Spec Sheet
| Weight | 500 g |
|---|---|
| Dimensions | 11 × 11 × 4 cm |
| Brand | |
| JAN | |
| Speaker Size | 1" |
| Speaker Type |
