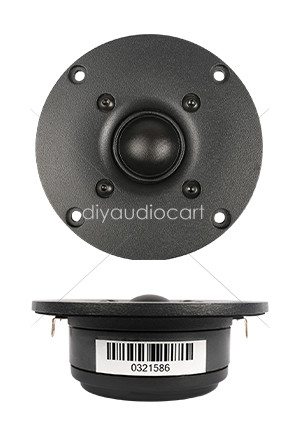

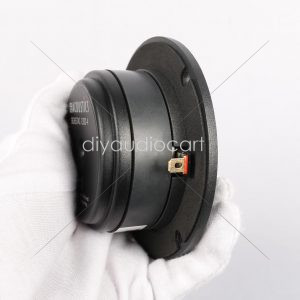

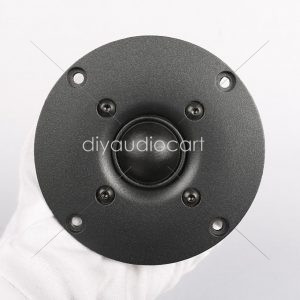

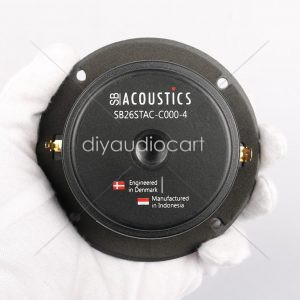

SB Acoustics SB26STAC-C000-4 1” Soft Dome Tweeter
₹3,239.00 Ex GST
Out of stock
SB Acoustics SB26STAC-C000-4 1” Soft Dome Tweeter
Product Features:
- Cast aluminium faceplate
- Copper cap for reduced voice coil inductance and minimum phase shift
- Non-reflective rear chamber with optimized damping for improved dynamics
- Flow optimized vented pole piece for optimum coupling to rear chamber
- Fine weave soft fabric dome for smooth frequency response
- Saturation controlled motor system for low distortion
- CCAW voice coil for low moving mass
- Long life silver lead wires
- Low resonance frequency
Product Specification:
Nominal Impedance | 4 Ω |
DC resistance, Re | 3.2 Ω |
Voice coil inductance, Le | 0.04 mH |
Effective piston area,Sd | 6.2 cm2 |
Voice coil diameter | 25.4 mm |
Voice coil height | 1.3 mm |
Air gap height | 2.5 mm |
Linear coil travel (p-p) | 1.2 mm |
Moving mass incl. air, Mms | 0.3 g |
Free air resonance, Fs | 750 Hz |
Sensitivity (2.83 V / 1 m) | 91.5 dB |
Mechanical Q-factor, Qms | 3.0 |
Electrical Q-factor, Qes | 1.78 |
Total Q-factor, Qts | 1.12 |
Force factor, Bl | 1.6 Tm |
Rated power handling* | 120 W |
Magnetic flux density | 1.15 T |
Magnet weight | 0.22 kg |
Net weight | 0.53 kg |
SB26STAC-C000-4-Drawing:
SB26STAC-C000-4-Grafik:
SB26STAC-C000-4 Datasheet
