SB Audience Bianco-12MW200 12″ Mid-woofer
₹6,928.00
Out of stock

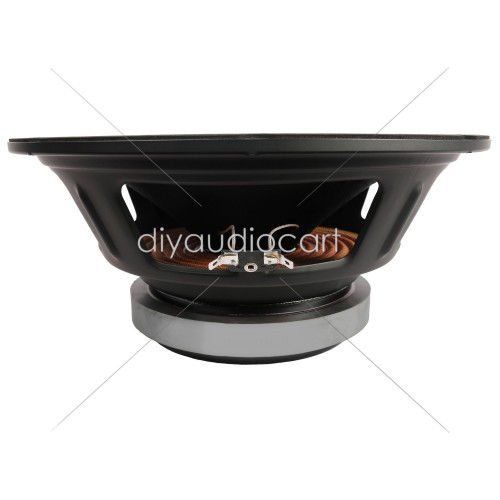

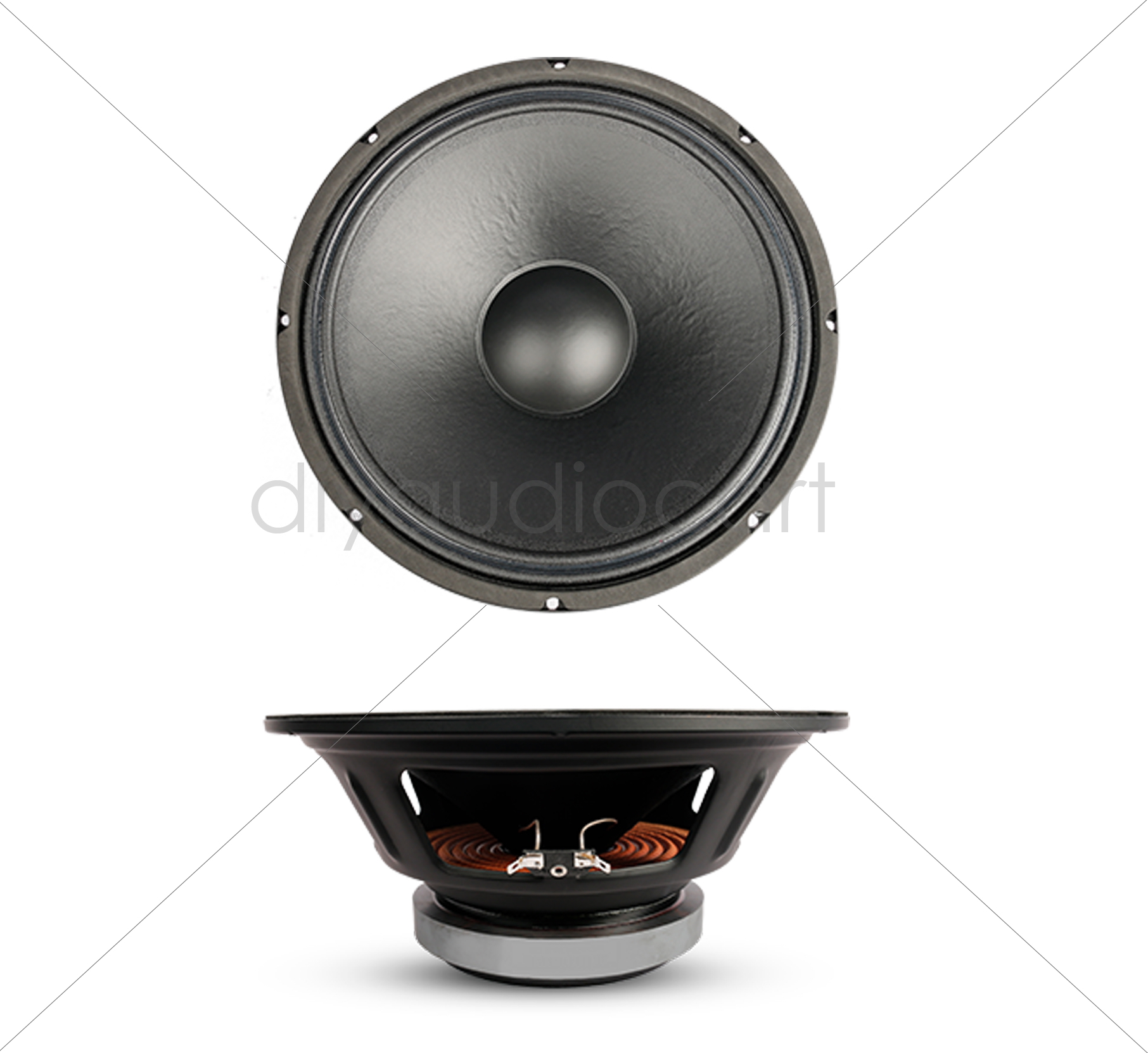

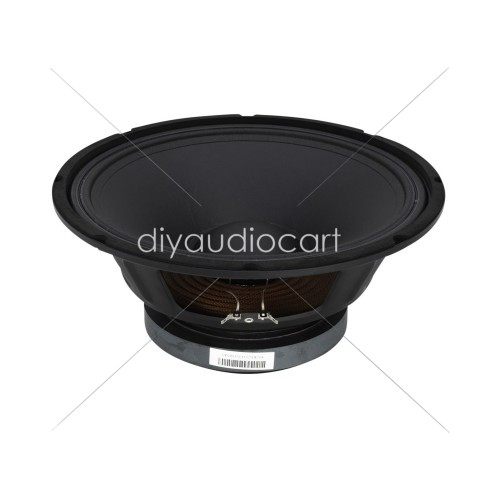

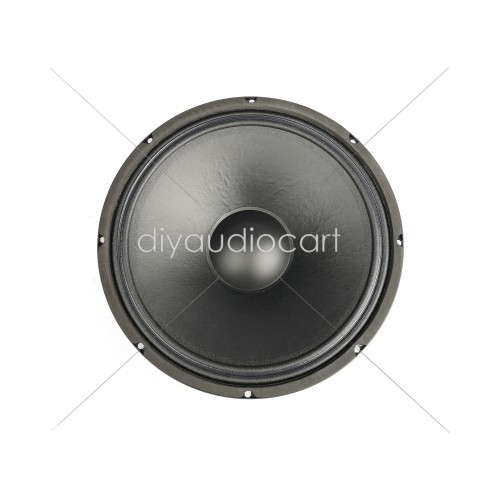

SB Audience Bianco-12MW200 12″ Mid-woofer
Highlights:
- Proprietary cone paper material with silk cotton tree and manila pulp
- 2.4″ voice coil with APC (Advanced Polymer Coating)
- Vented back plate for reduced compression
- Minimum damping fiber glass voice coil former
- Long life silver lead wires
- Weather-proof coated conepaper
Product Specifications:
Nominal Impedance | 8 Ohm |
Minimum Impedance | 5.2Ohm |
AES Power Handling (1) | 200 W |
Maximum Power Handling (2) | 400 W |
Sensitivity (1W/1m) | 99 dB |
Frequency Range | 51- 5350 Hz |
Voice Coil Diameter | 60.5 mm (2.4in) |
Winding Material | Copper |
Former Material | Till |
Winding Depth | 16.6 mm |
Magnetic Gap Depth | 8mm (0.31 in) |
Flux Density | 1.23 T |
Magnet | Ferrite |
Basket Material | Stamped steel |
Demodulation | – |
Cone Surround | Double half roll with damping glue |
NET Air Volume filled by driver | 1.68 liters |
Spider Profile | Single downroll constant height waves |
Weather Resistant | yes |
Thiele Parameters:
Fs | 51 Hz |
Re | 5.3 Ohm |
Qes | 0.51 |
Qms | 14.33 |
Qts | 0.49 |
Vas | 62.9 liters |
Sd | 543.3 cm2 |
Xmax (3) | 6.97 mm |
Xdamage (4) | 16 mm |
Mms | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 65.2 gr |
BI | 14.7Tm |
Le | 0.83 mH |
Cms | 0.15 mm/N |
Rms | 1.45Kg/s |
Eta Zero | 1.56 % |
EBP | 100 |

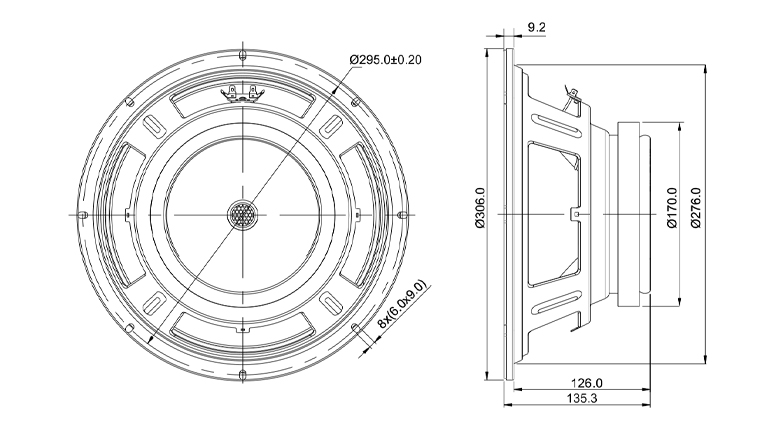

Dimensions & Weight:
Diameter | 306mm (12.05 in) |
Bolt Circle Diameter | 295 mm (11.61 in) |
Baffle cutout Diameter | 278mm (10.94 in) |
Mounting Depth | 126 mm (4.96 in) |
Net Weight | 5.05 kg (9.7 lb) |
Shipping Box | 354 X 354 X 182 mm |
Gross Weight | 6.59 Kg (11.33 lb) |
Flange and Gasket Thickness | 9.2 mm (0.36 in) |
Product Manuals / Spec Sheets / Downloads:
Specifications Please Click Here.
NOTE:Â Â Delivery charges may vary based on Area/Weight of the product
| Weight | 5050 g |
|---|---|
| Dimensions | 306 × 276 × 135.3 cm |
