SB Audience BIANCO-15W200 15″ Mid-woofer
₹10,953.00
3 in stock
SB Audience BIANCO-15W200 15″ Mid-woofer
Highlights:
- Proprietary cone paper material with silk cotton tree and manila pulp
- 3″ voice coil with APC (Advanced Polymer Coating)
- Minimum damping fiber glass voice coil former
- Vented back plate for reduced compression
- Long life silver lead wires
- Weather-proof coated cone paper
Product Specifications:
Nominal Impedance | 8 Ohm |
Minimum Impedance | 5.2Ohm |
AES Power Handling (1) | 300 W |
Maximum Power Handling (2) | 600 W |
Sensitivity (1W/1m) | 99 dB |
Frequency Range | 47 – 4700 Hz |
Voice Coil Diameter | 75.5 mm (3in) |
Winding Material | Copper cald aluminium |
Former Material | Till |
Winding Depth | 20.4 mm |
Magnetic Gap Depth | 10mm (0.39 in) |
Flux Density | 1.21 T |
Magnet | Ferrite |
Basket Material | Stamped steel |
Demodulation | – |
Cone Surround | Double half roll |
NET Air Volume filled by driver | 4.10 liters |
Spider Profile | constant height waves |
Weather Resistant | yes |
Thiele Parameters:
Fs | 47 Hz |
Re | 5.2 Ohm |
Qes | 0.57 |
Qms | 10.62 |
Qts | 0.54 |
Vas | 123.5 liters |
Sd | 907.9 cm2 |
Xmax (3) | 8.53 mm |
Xdamage (4) | 18 mm |
Mms | 107.1 g |
BI | 17 Tm |
Le | 0.85 mH |
Cms | 0.11 mm/N |
Rms | 3 Kg/s |
Eta Zero | 2.2 % |
EBP | 82 |

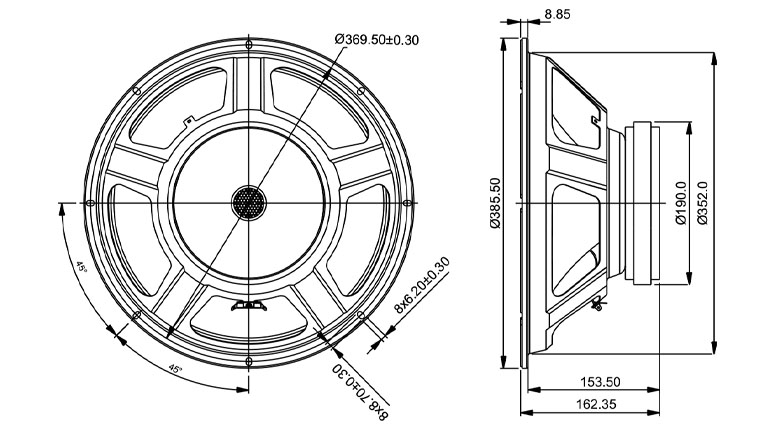

Dimensions & Weight:
Diameter | 385.5mm (15.17 in) |
Bolt Circle Diameter | 369.5 mm (14.54 in) |
Baffle cutout Diameter | 354mm (13.93 in) |
Mounting Depth | 153.5 mm (6.04 in) |
Net Weight | 7.24 kg (15.96 lb) |
Shipping Box | 428 X 428 X 209 mm |
Gross Weight | 9 Kg (19.84 lb) |
Flange and Gasket Thickness | 8.85mm (0.35 in) |
NOTES :
(1) AES standard, test made with continuous pink noise signal (6 dbcrest factor ;2hours)
(2) Maximum power is defined as 3dB greater than nominal power.
(3) Xmax=((winding depth-Magnetic gap depth)/2+(Magnetic gap depth/3)
(4) Maximum Excursion (p-p) before permanant damage.
(5) T/S parameters measured on drive units that are broken in using Klippel LPM Measurement System.
BIANCO-15W200 Specifications Please Click Here.
NOTE: Delivery charges may vary based on Area/Weight of the product
| Weight | 7240 g |
|---|---|
| Dimensions | 385.5 × 352 × 162.35 cm |
| Brand | |
| JAN |
