SB Audience Bianco-44CD-K Compression Driver- 1″
₹5,287.00
Out of stock
SB Audience Bianco-44CD-K Compression Driver- 1″
Highlights:
- Kapton diaphragm
- Detailed and smooth character
- High SPL
- Extremely light weight diaphragm
- Push Terminal for easy installation
Product Specifications:
Nominal Impedance | 8 Ohm |
RDC | 6.2 Ohm |
AES Power Handling (1) | 50 W |
Maximum Power Handling (2) | 100 W |
Sensitivity (1W/1m) | 110 dB |
Frequency Range | 700 – 20000 Hz |
Voice Coil Diameter | 44 mm (1.73in) |
Winding Material | Flat copper clad aluminium |
Former Material | kapton |
Winding Depth | 2.25 mm (0.089 in) |
Magnetic Gap Depth | 2.5mm (0.10 in) |
Flux Density | 1.6 T |
Magnet | Ferrite |
Phase plug design | annular |
Exit angle | 10.86 conical |
NET Air Volume filled by driver | 0.59 liters |

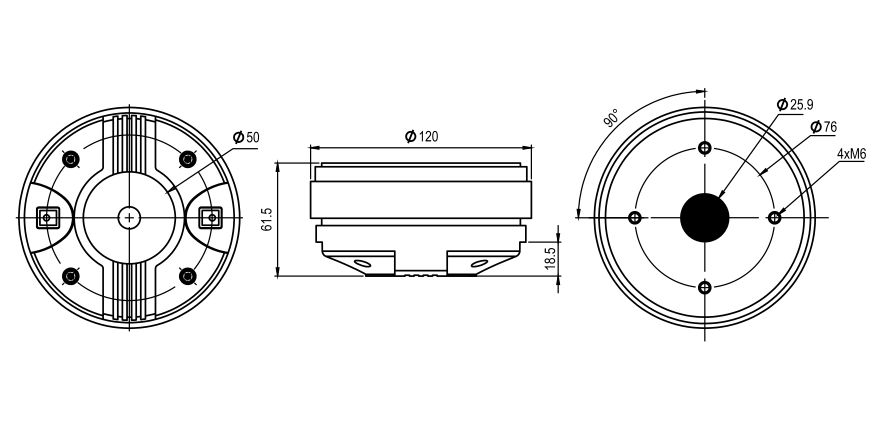

Dimensions & Weight:
Throat Diameter | 25.4 mm(1 in) |
Overall Diameter | 120 mm(4.7 in) |
90 Mounting Holes Diameter (4*M6) | 76 mm(3.0 in) |
Depth | 61.46 mm (2.41 in) |
Net Weight | 2.22kg (4.89 lb) |
Shipping Box | 139*121*73 mm |
Gross weight | 2.29 kg(5.04 lb) |
Notes:
Driver mounted on horn h250
- 2 Hour test made with continuous pink noise signal within the range from
The recommended crossover frequency to 20kHz
- Maximum power is defined as 3db greater than nominal power
- Averaged within the frequency range
- Xmax =[(winding depth – magnetic gap depth)/2]+ (Magnetic gap depth/3)
Bianco-44CD-K Specifications Please Click Here
NOTE : Delivery charges may vary based on Area/Weight of the product
| Weight | 2220 g |
|---|---|
| Dimensions | 114 × 120 × 61.46 cm |
