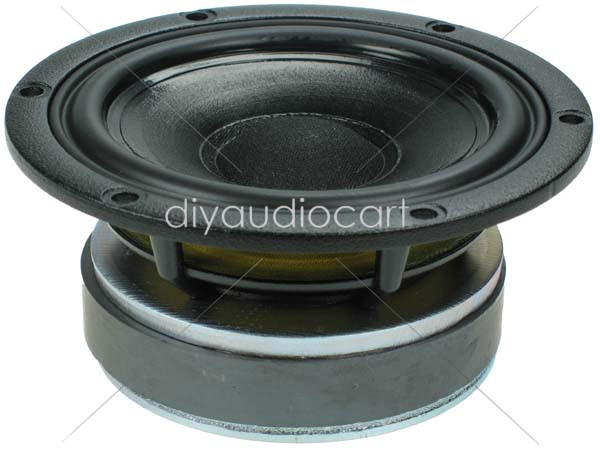

SEAS Prestige H1152-08 CA12RCY Coated Paper Cone Woofer 4.5"/8Ohm

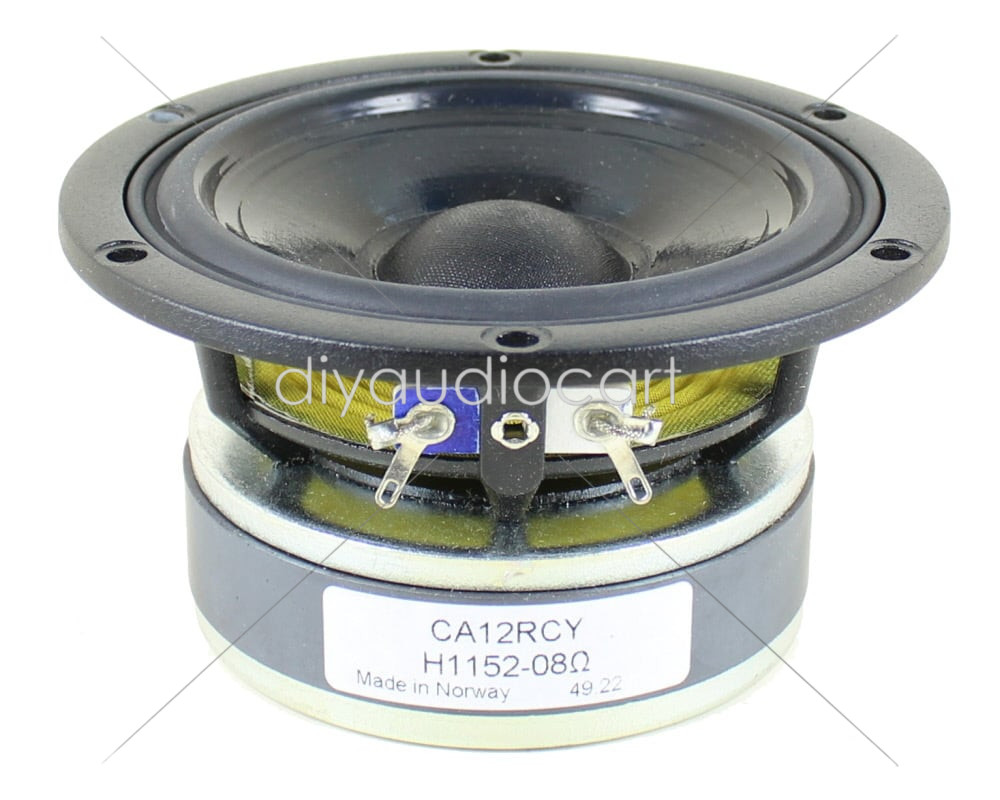

SEAS Prestige H1152-08 CA12RCY Coated Paper Cone Woofer 4.5"/8Ohm - Image 2

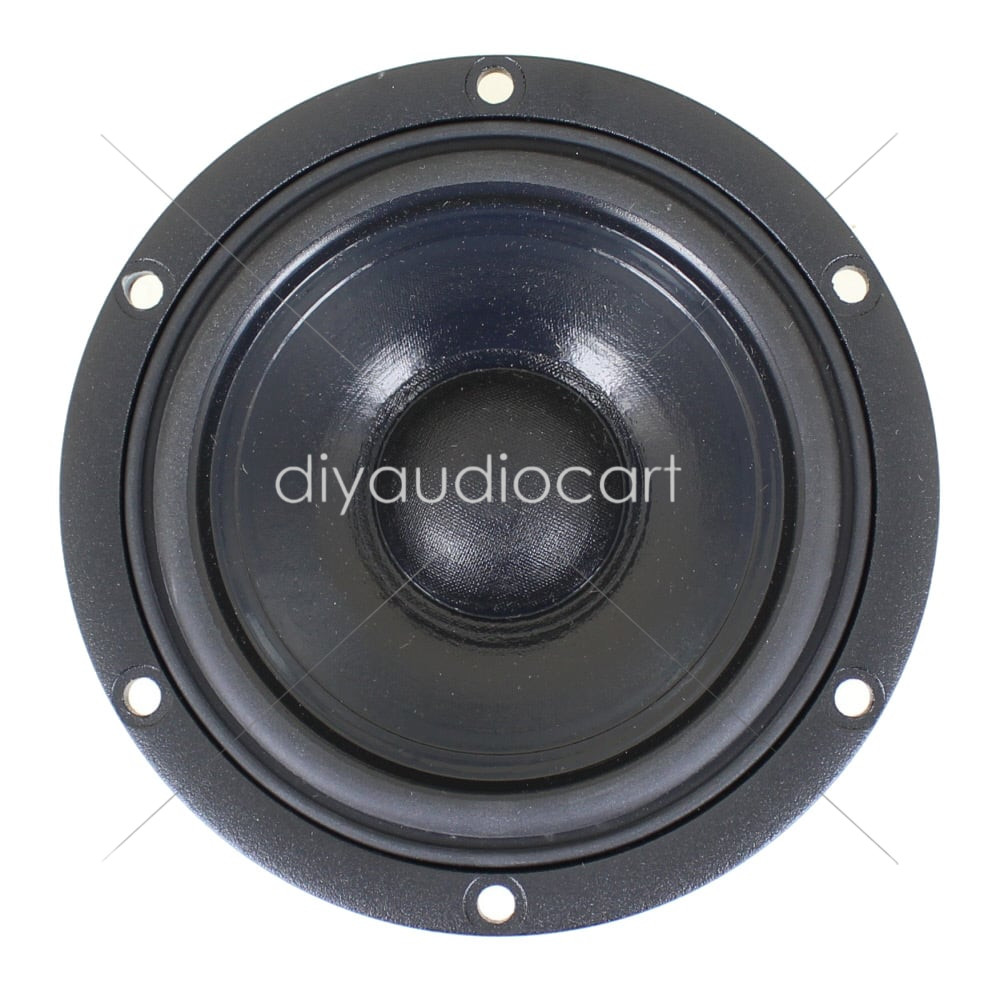

SEAS Prestige H1152-08 CA12RCY Coated Paper Cone Woofer 4.5"/8Ohm - Image 3

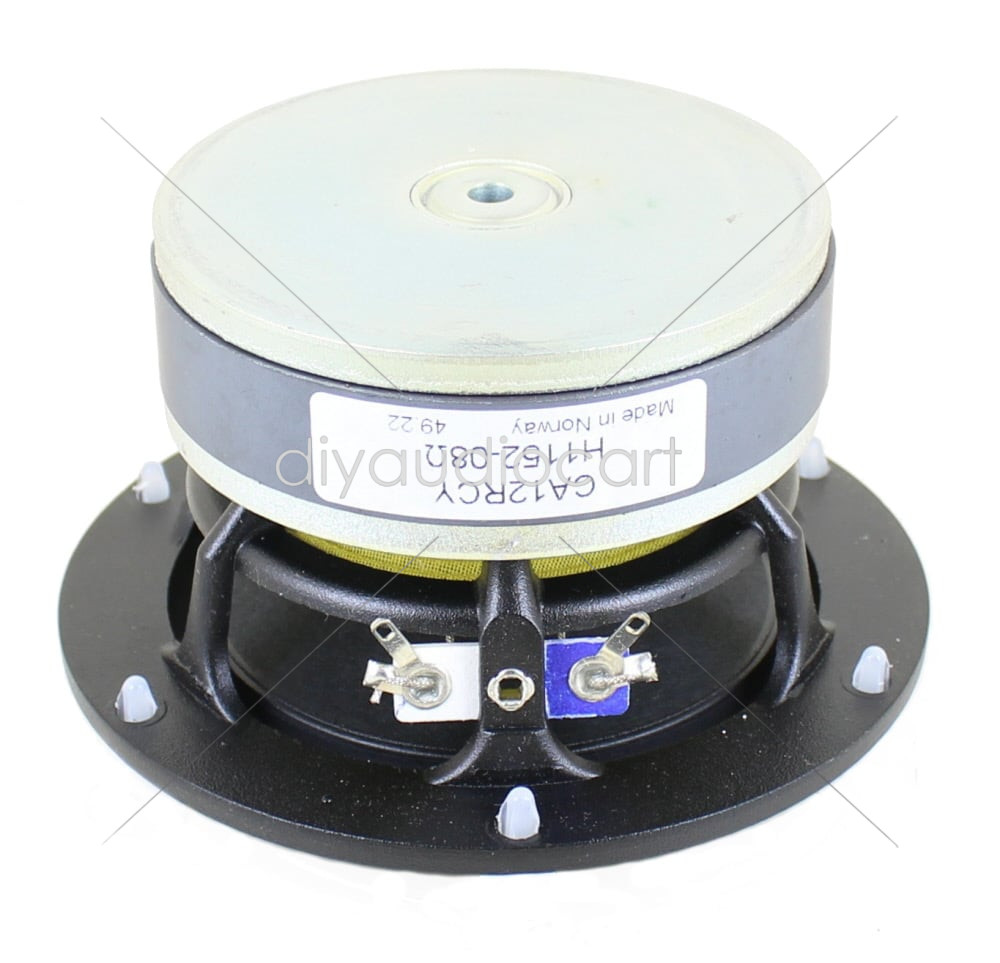

SEAS Prestige H1152-08 CA12RCY Coated Paper Cone Woofer 4.5"/8Ohm - Image 4

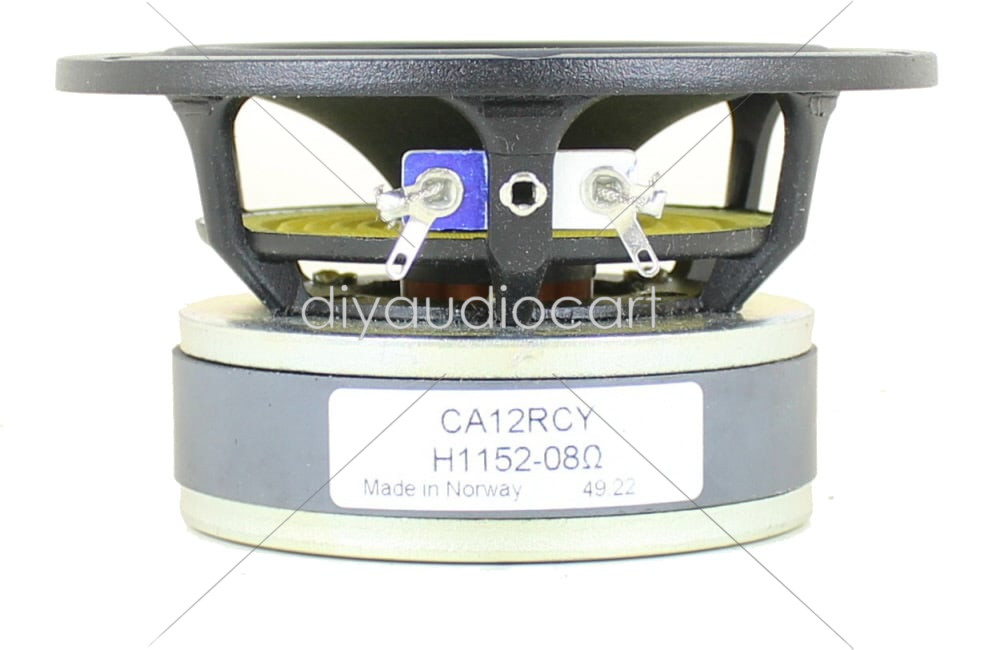

SEAS Prestige H1152-08 CA12RCY Coated Paper Cone Woofer 4.5"/8Ohm - Image 5

SEAS Prestige H1152-08 CA12RCY Coated Paper Cone Woofer 4.5″/8Ohm

Name: SEAS Prestige H1152-08 CA12RCY Coated Paper Cone Woofer 4.5"/8Ohm
Brand: SEAS
SKU: H1152-08
Availability: InStock

₹10,363.00

2 in stock

SKU: H1152-08 Categories: Drivers, Woofer Tags: 4.5inch, 8Ohm, CA12RCY, H1152, Midrange, paperconewoofer, SEAS, Tweeter Brand: SEAS

SEAS Prestige H1152-08 CA12RCY Coated Paper Cone Woofer 4.5″/8Ohm

Overview:

Natural rubber surround and hand coated paper cone with coated fabric dust cap, reduce resonances and distortion. Large magnet system and a symmetrical driving force accomplished through a special coil winding technique for the voice coil gives an excellent linearity. Very large magnet system provides a reasonable efficiency and a low Q. Extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

Highlights:

Long term power handling (RMS) is 60 Watts
New Curv cone, a woven polypropylene with excellent internal damping
The pole piece is prolonged forwards and equipped with a deep drawn copper cap to ensure excellent linearity in the force factor and coil inductance

Product Details:

Model	CA12RCY
Product Type	Woofer
Product Series	Prestige Series
Nominal Diameter	4.5″

Specifications:

Nominal Impedance	8 Ohms
Recommended Frequency Range	45 – 5000 Hz
Short Term Power Handling	200 W
Long Term Power Handling	60 W
Characteristic Sensitivity (2.83V, 1m	86 dB
Voice Coil Diameter	26 mm
Voice Coil Height	12/8 mm
Air Gap Height	6 mm
Linear Coil Travel (p-p)	6 mm
Maximum Coil Travel (p-p)	9 mm
Magnetic Gap Flux Density	1.15 T
Magnet Weight	0.42 kg
Total Weight	1.20 kg
Voice Coil Resistance	6.4 Ohms
Voice Coil Inductance	1.05 mH
Force Factor	6.35 N/A
Free Air Resonance	57 Hz

Moving Mass	6.1 g
Air Load Mass in IEC Baffle	0.24 g
Suspension Compliance	1.3 mm/N
Suspension Mechanical Resistance	1.04 Ns/m
Effective Piston Area	55 cm
VAS	5 Litres
QMS	2.17
QES	0.36
QTS	0.31
