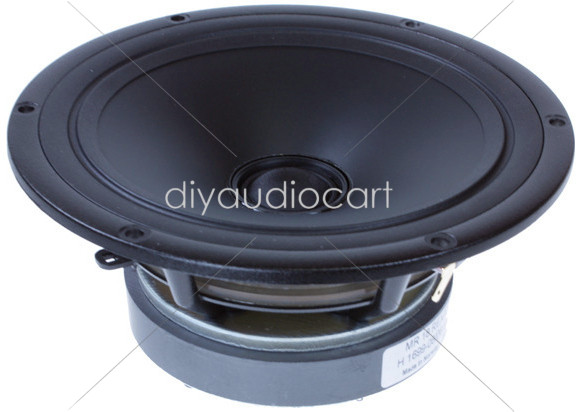

SEAS Prestige H1699-08/06 MR18REX/XF Coaxial Drivers

Overview:

The MR18REX/XF is a midrange coaxial loudspeaker providing high quality sound in a very compact format. The cone of the midrange acts as a horn loading for the tweeter, and the chassis of the dome unit represents the throat of this horn. The coaxially arranged pre coated fabric dome high frequency unit has a smooth frequency response, and integrates with the cone driver to a point source. Voice coil windings immersed in magnetic fluid increase short term power handling capacity and reduce the compression at high power levels. The pre-coated reed-paper cone acts as a piston throughout the recommended frequency range. The completely new rubber surround reduces resonances and prevents surround break up in the midrange band. The surround’s small inverted roll, combined with a profile that follows the shape of the cone, results in almost total elimination of diffraction effects on the tweeter’s output.

Highlights:

• Long term power handling (RMS) is 80 Watts (Midrange) and 90 Watts (Tweeter)
• Coaxial loudspeaker providing high quality sound in a very compact format
• The cone of the Midrange acts as a moderate horn loading for the tweeter, and the chassis of the dome unit represents the throat of this horn

Product Details:

Specifications:

Frequency Response:

Dimensions:

H1699-08/06 Data Sheet
