Tang Band W6-1721 6-1/2″ Underhung Midbass Driver
₹15,312.00
50 in stock
Tang Band W6-1721 6-1/2″ Underhung Midbass Driver
Overview:
The W6-1721 6″ midbass features a long throw, underhung 1-1/2″ voice coil driven by a massive 50 oz. ferrite magnet.
Product Highlights:
- Huge ferrite magnet, under hung motor design.
- Short ring on pole piece, VC = 38mm.
- Very low 2nd and 3rd distortion (low THD).
- Long throw, high power loading, X-max = 8mm.
- Naturally high frequency roll off, good for crossover design.
Key Features:
- Underhung voice coil driven by a powerful magnet assembly
- Shorting ring lowers distortion and inductance for accurate midrange response
- Short coil and long gap design allows incredible excursion capability
- Smooth response up to 5,000, perfect driver for 2-way designs
Product Specification:
SIZE | 6″ |
CATEGORY | Woofer |
DIAPHRAGM MTL | Paper |
SURROUND MTL | Rubber |
NOMINAL IMPEDANCE | 4 Ω |
DCR IMPEDANCE | 3.4 Ω |
SENSITIVITY 1W/1m | 88 dB |
FREQUENCY RESPONSE | 40-5K Hz |
FREE AIR RESONANCE | 40 Hz |
VOICE COIL DIAMETER | 38.5 mm |
AIR GAP HEIGHT | 22 mm |
RATED POWER INPUT | 50 W |
MAXIMUM POWER INPUT | 100 W |
FORCE FACTOR, BL | 5.12 TM |
TYPE OF MAGNET | Ferrite |
MOVING MASS | 14.97 g |
FERROFLUID ENHANCED | No |
ENHANCED SUSPENSION COMPLIANC | 1055 uMN¯¹ |
EFFECTIVE PISTON AREA | 0.014 M² |
Thiele-Small Parameters:
Levc | 0.084 mH |
Zo | 28 Ω |
X-max | 8 mm |
Vas | 29.38 Litr |
Qts | 0.43 |
Qms | 3.58 |
Qes | 0.49 |

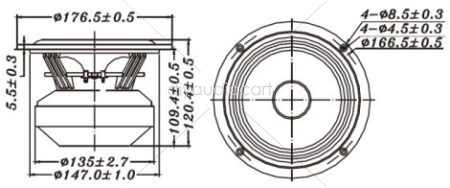

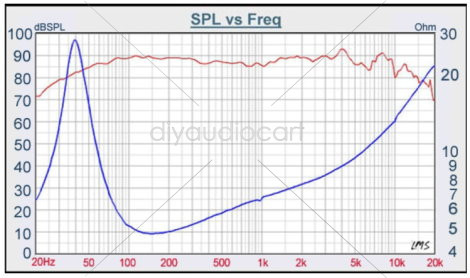

Tang Band W6-1721 Specifications
