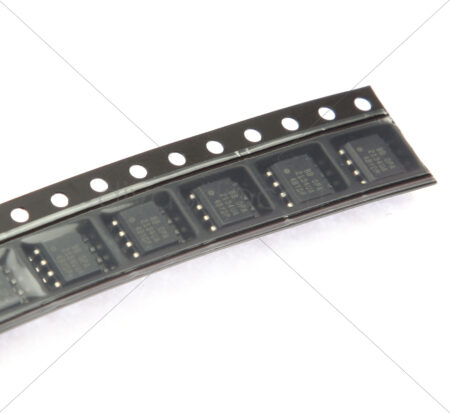

Texas Instruments – SoundPlus(TM) High Performance Audio Operational Amplifiers OPA2134UA/2K5

Name: Texas Instruments - SoundPlus(TM) High Performance Audio Operational Amplifiers OPA2134UA/2K5
SKU: OPA2134UA/2K5
Availability: OutOfStock

Description :

The OPA134 series are ultra-low distortion, low noise operational amplifiers fully specified for audio applications. A true FET input stage was incorporated to provide superior sound quality and speed for exceptional audio performance. This in combination with high output drive capability and excellent dc performance allows use in a wide variety of demanding applications. In addition, the OPA134’s wide output swing, to within 1V of the rails, allows increased headroom making it ideal for use in any audio circuit.

OPA134 op amps are easy to use and free from phase inversion and overload problems often found in common FET-input op amps. They can be operated from ±2.5V to ±18V power supplies. Input cascode circuitry provides excellent common-mode rejection and maintains low input bias current over its wide input voltage range, minimizing distortion. OPA134 series op amps are unity-gain stable and provide excellent dynamic behavior over a wide range of load conditions, including high load capacitance. The dual and quad versions feature completely independent circuitry for lowest crosstalk and freedom from interaction, even when overdriven or overloaded.
Single and dual versions are available in 8-pin DIP and SO-8 surface-mount packages in standard configurations. The quad is available in 14-pin DIP and SO-14 surface mount packages. All are specified for –40°C to +85°C operation. A SPICE macromodel is available for design analysis.

Specifications:

Manufacturer:	Texas Instruments
Product Category:	Audio Amplifiers
RoHS:	RoHS
Mounting Style:	SMD/SMT
Type:	2-Channel FET Input
Package / Case:	SOIC-8
THD plus Noise:	0.00015 %
Supply Voltage – Max:	36 V
Supply Voltage – Min:	5 V
Maximum Operating Temperature:	+ 85 C
GBP – Gain Bandwidth Product:	8 MHz
Ib – Input Bias Current:	100 pA
Minimum Operating Temperature:	– 40 C
Number of Channels:	2 Channel
Operating Supply Current:	10 mA
Series:	OPA2134
Supply Type:	Dual
Vos – Input Offset Voltage:	2 mV
Part # Aliases:	SN412008DRE4
Unit Weight:	76 mg

Features :

SUPERIOR SOUND QUALITY
ULTRA LOW DISTORTION: 0.00008%
LOW NOISE: 8nV/√Hz
TRUE FET-INPUT: IB = 5pA
HIGH SPEED:
- SLEW RATE: 20V/µs
- BANDWIDTH: 8MHz
HIGH OPEN-LOOP GAIN: 120dB (600Ω)
WIDE SUPPLY RANGE: ±2.5V to ±18V
SINGLE, DUAL, AND QUAD VERSIONS

Applications :

PROFESSIONAL AUDIO AND MUSIC
LINE DRIVERS
LINE RECEIVERS
MULTIMEDIA AUDIO
ACTIVE FILTERS
PREAMPLIFIERS
INTEGRATORS
CROSSOVER NETWORKS

Parametrics :

Number of Channels (#)	2
Total Supply Voltage (Min) (+5V=5, +/-5V=10)	5
Total Supply Voltage (Max) (+5V=5, +/-5V=10)	36
Iq per channel (Max) (mA)	5
Slew Rate (Typ) (V/us)	20
Vos (Offset Voltage @ 25C) (Max) (mV)	2
Offset Drift (Typ) (uV/C)	2
CMRR (Min) (dB)	85
GBW (Typ) (MHz)	8
IIB (Max) (pA)	100
Vn at 1kHz (Typ) (nV/rtHz)	8
Rating	Catalog
Operating Temperature Range (C)	-40 to 85
Pin/Package	8PDIP
