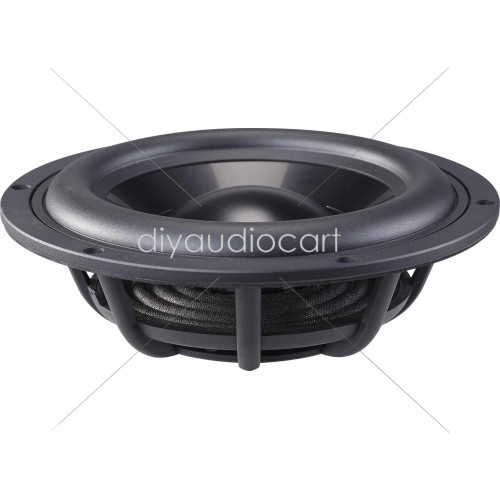

      Wavecor PR223BD02 8-3/4″ Black Aluminium Cone Passive Radiator



      Overview:

      The Wavecor PR223BD02 is an 8-3/4″ passive radiator designed for dedicated subwoofer applications. Due to its low mechanical losses, the PR223BD02 performs equally well on low volume and dynamic peaks.



       Highlights:

      • Very rigid black aluminium cone to ensure piston motion at high levels
      • Rigid die cast alu chassis with extensive venting for lower air flow speed reducing audible distortion
      • Low-loss suspension (high Qm) for better reproduction of details and dynamics
      • Conex spider for better durability under extreme conditions
      • Custom tunable by adding one or more of the three extra weights (included)



       Product Description:

      For demanding subwoofer applications using a passive radiator like the PR223BD02 is a fantastic alternative to ported enclosures. The extremely rigid black aluminum cone of the passive radiator provides a fantastic transient response. The PR223BD02 was designed to cause limited mechanical loss, for the best fidelity possible.

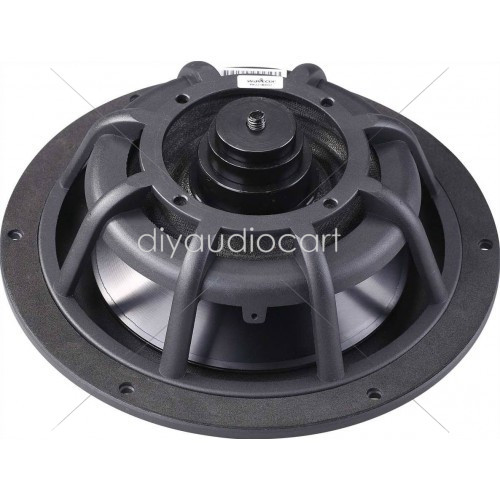

      The PR223BD02 includes three weighted discs that are easily applied onto a threaded rod on the rear side of the cone. You can add any combination of the weighted discs to adjust the tuning of the passive radiator. Weights that included do not require a nut to secure them, as they are threaded to match the rod.



       Product Specifications:

        Parameter

      Before burn-in

      After burn-in

      Unit

      Nominal size

      8

      [inch.]

      Effective radiating area, Sd

      206

      [sq.cm]

      Resonance frequency (free air, no baffle), Fs
      – without additional mass
      – with additional 50 g mass
      – with additional 100 g mass
      – with additional 150 g mass
      – with additional 200 g mass
      – with additional 250 g mass
      – with additional 300 g mass
      – with additional 350 g mass

      15
      13.1
      11.8
      10.8
      10.1
      9.4
      8.9
      8.5

      [Hz]

      Moving mass, incl. air (free air, no baffle), Mms, without extra weights

      162

      [g]

      Suspension compliance, Cms

      0.69

      [mm/N]

      Equivalent air volume, Vas

      41.6

      [lit.]

      Mechanical Q, Qms
      – without additional mass
      – with additional 50 g mass
      – with additional 100 g mass
      – with additional 150 g mass
      – with additional 200 g mass
      – with additional 250 g mass
      – with additional 300 g mass
      – with additional 350 g mass

      19
      19.9
      22.1
      24.1
      26.0
      27.7
      29.4
      30.9

      [-]

      Maximum cone travel, mechanical limits, Xmax

      17

      [mm]

      Total unit net weight excl. packaging (incl. 3 extra weights)

      0.95

      [kg]



      Wavecor PR223BD02 DATA SHEET

      Weight1640 g
      Dimensions31 × 31 × 19 cm
      Brand

      Wavecor

      JAN

      85182200

      Speaker Size

      8-3/4"

      Speaker Type

      Passive Radiator
