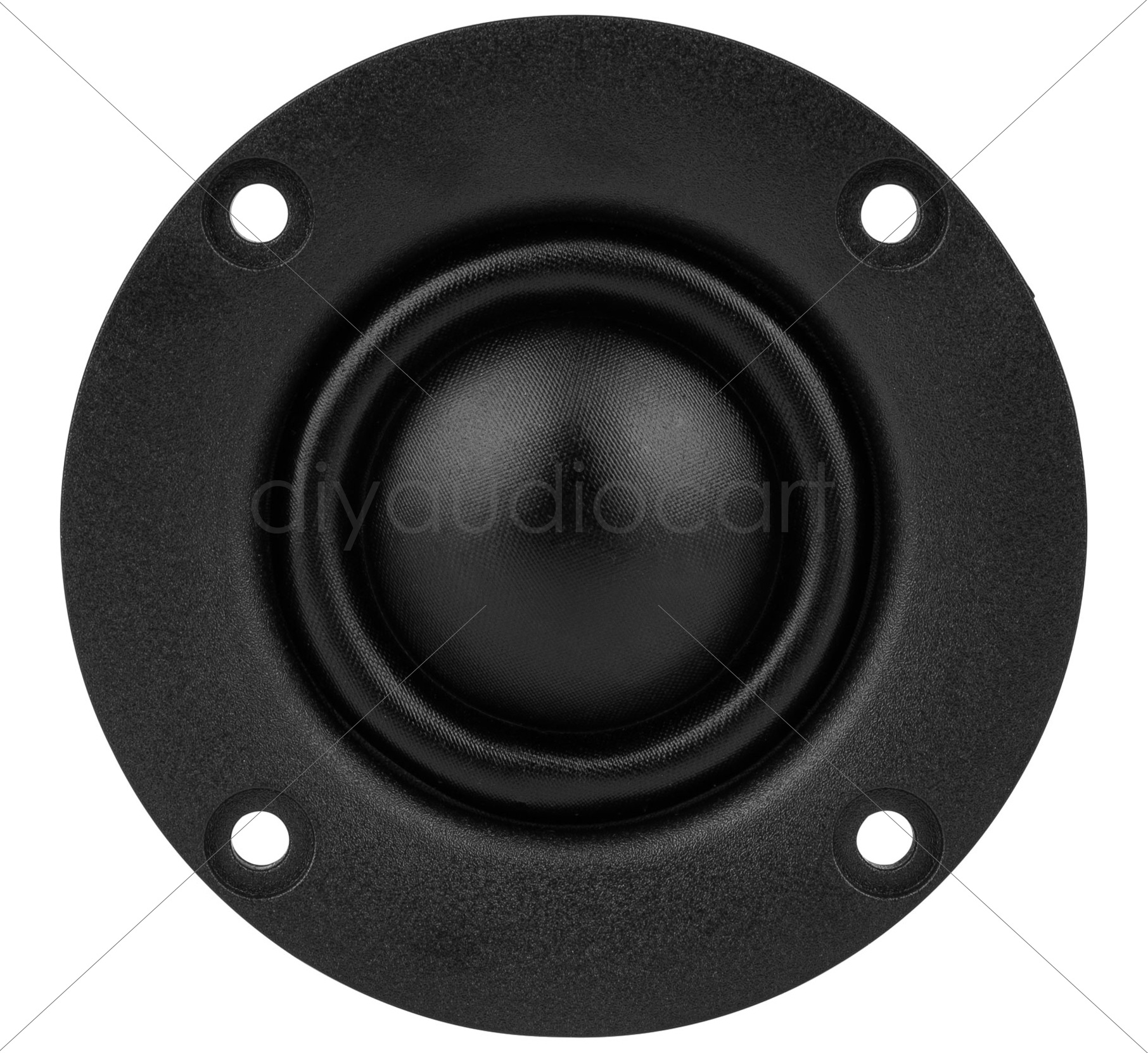

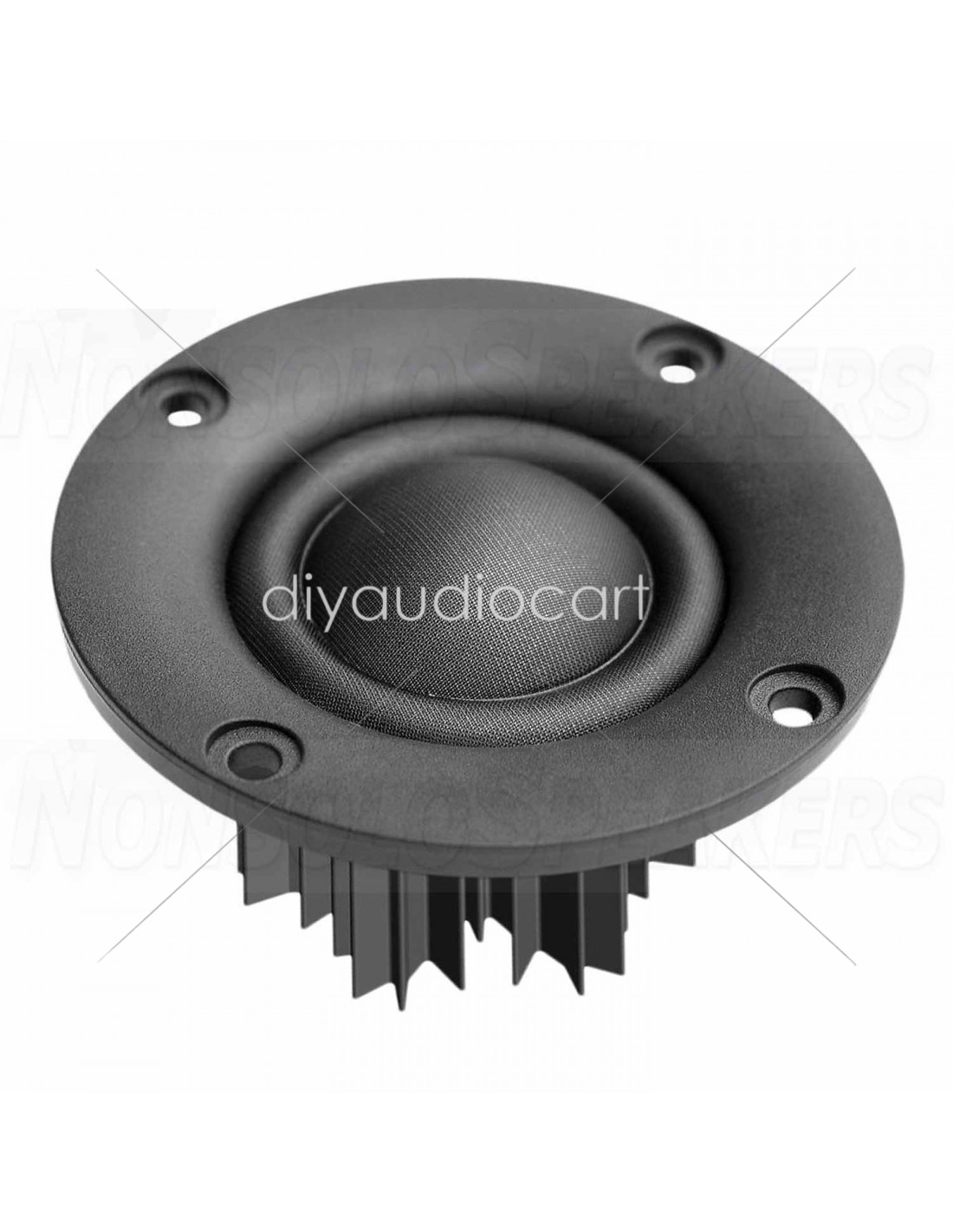

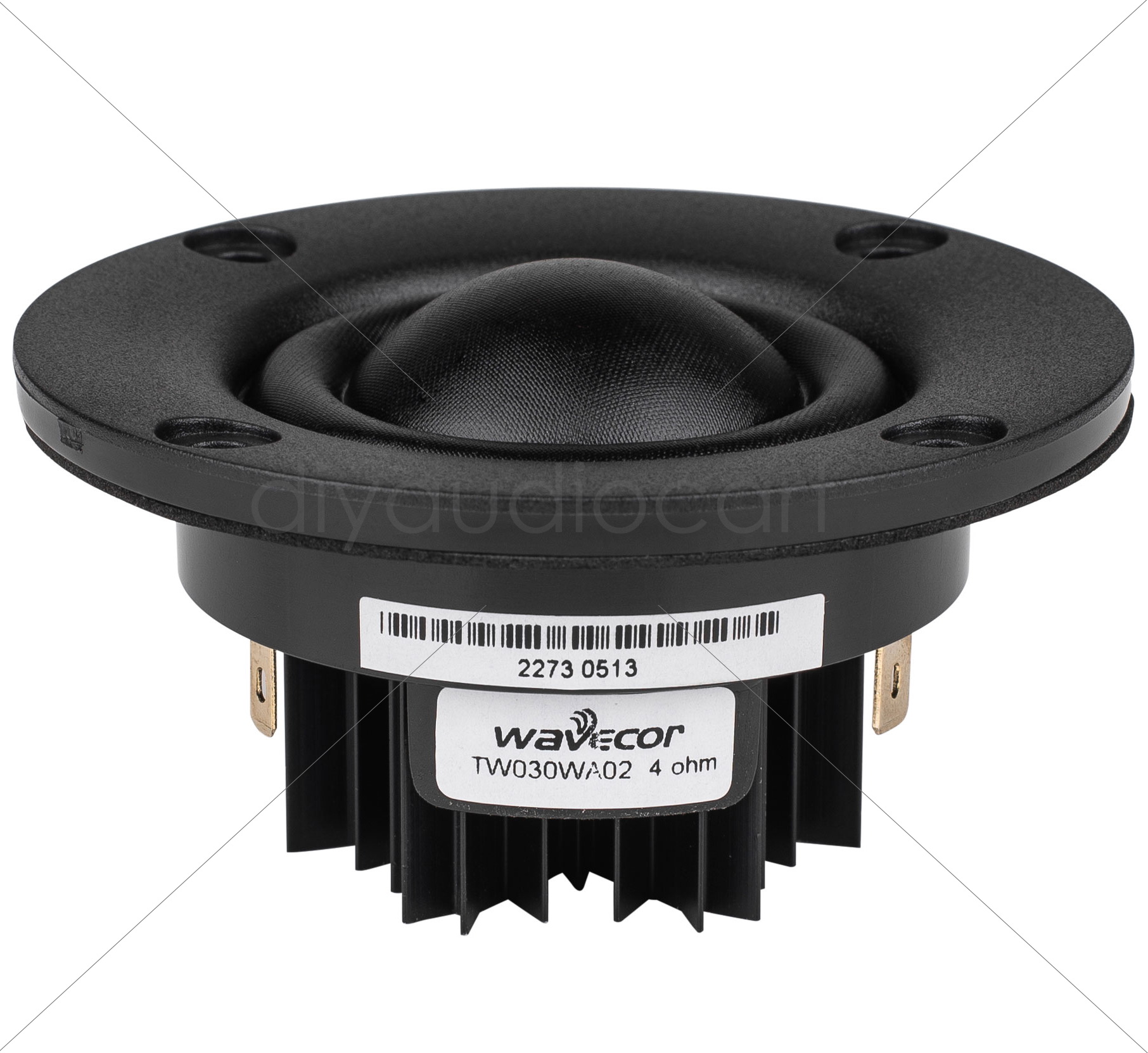

Wavecor TW030WA02 30mm Textile Dome Neodymium Tweeter with Heat Sink and Ferrofluid – Pair

Quick Overview:

The Wavecor TW030WA02 is a high performance 30 mm textile dome tweeter that works extremely well for most demanding high frequency audio applications. The low resonance frequency and high-power handling makes TW030WA02 the ideal tweeter for 2-way speakers, where 1″ tweeters will not do.

Product Highlights:

• Precision-coated textile diaphragm for improved consistency and high-frequency extension
• Vented voice coil former for reduced distortion and compression
• Copper-clad aluminium voice coil wire offering lower moving mass for improved efficiency and transient response
• Build-in cavities under dome/edge to equalize pressure for lower distortion and lower resonance frequency

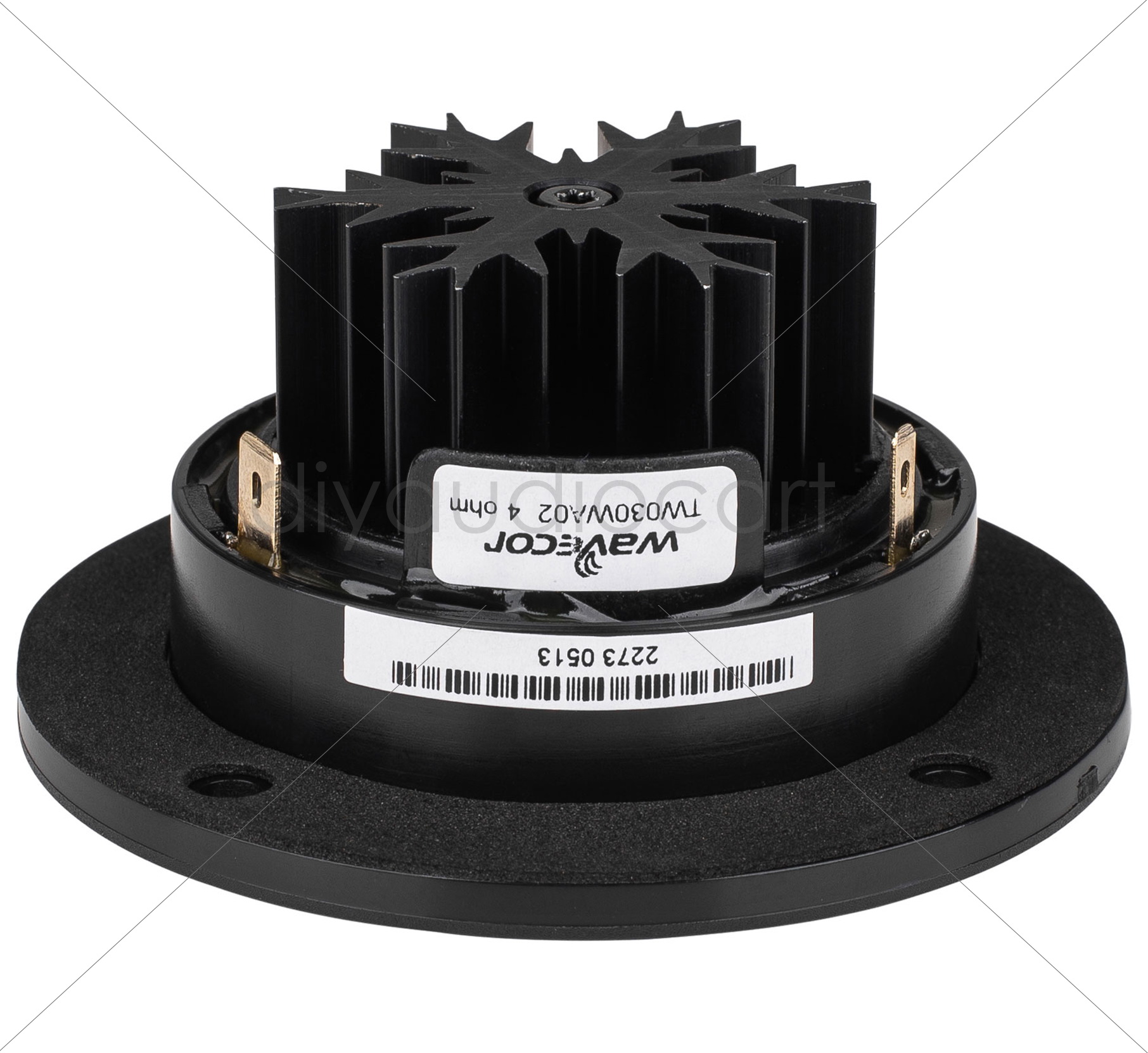

• Rear heat sink for increased power handling and reduced power compression
• Dual neodymium magnets for improved efficiency and improved magnetic shielding for A/V applications
• Flexible lead wires for higher power handling and larger excursion
• Black anodized magnet structure for increased power handling and reduced power compression
• Gold plated terminals to prevent oxidation for long-term reliable connection
• Delivered with foam gasket attached for hassle-free mounting and secure cabinet sealing

Product Description:

The Wavecor TW030WA02 is a high performance 30 mm textile dome tweeter that works extremely well for most demanding high frequency audio applications. The low resonance frequency and high power handling makes TW030WA02 the ideal tweeter for 2-way speakers, where 1″ tweeters will not do.

The TW030WA02 offers a smooth and extended frequency response. The optimized textile dome ensures wide dispersion and low distortion. Distortion is further reduced by efficient venting of the chassis and voice coil former.

Product Specification:

Wavecor TW030WA02 DATA SHEET PLEASE CLICK HERE

Note: The price is for a Pair
