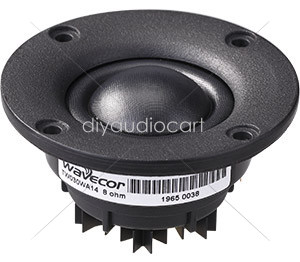

Wavecor TW030WA13 30mm Textile Dome Neodymium Tweeter with Heat Sink and Rear Chamber 4 Ohm - Pairs

Wavecor TW030WA13 30mm Textile Dome Neodymium Tweeter with Heat Sink and Rear Chamber 4 Ohm – Pair

Name: Wavecor TW030WA13 30mm Textile Dome Neodymium Tweeter with Heat Sink and Rear Chamber 4 Ohm - Pair
Brand: Wavecor
SKU: TW030WA13
Availability: InStock

₹16,255.00

11 in stock

SKU: TW030WA13 Categories: Drivers, Tweeter Tags: 4 Ohm, Neodymium, TW030WA13, Tweeter, Wavecor Brand: Wavecor

Wavecor TW030WA13 30mm Textile Dome Neodymium Tweeter with Heat Sink and Rear Chamber 4 Ohm – Pair

Quick Overview:

The Wavecor TW030WA13 is a true high-end tweeter designed for the most demanding applications featuring an array of performance improving details that participate in obtaining low resonance frequency, low distortion and very high frequency extension.

Product Highlights:

Precision textile dome ensuring extended response and very good consistency
30 mm voice coil design with high power handling, and low resonance frequency
Copper clad center pole yielding very low voice coil inductance for reduced distortion and increased high frequency output
Vented through to a damped rear chamber for low resonance frequency and low distortion
Internal volumes for low resonance frequency and low distortion
Optimized dome shape for ultra high frequency cut-off
Rear heat sink for increased long term power handling
Vented voice coil former for reduced distortion and compression
Copper-clad aluminium voice coil wire offering lower moving mass for improved efficiency and transient response
Built-in cavities under dome/edge to equalize pressure – for lower distortion and lower resonance frequency
Flexible lead wires for higher power handling and larger excursion
Gold plated terminals to prevent oxidation and ensure long-term reliable connection
Delivered with foam gasket attached for hassle-free mounting and secure cabinet sealing

Product Description:

The low resonant frequency of this tweeter makes the TW030WA13 a natural candidate for high-end 2-way speaker systems.

Product Specification:

Parameter	TW030WA13	Unit
Nominal size	30	[mm]
Nominal impedance	4	[ohm]
Recommended frequency range	2 – 30	[kHz]
Sensitivity, 2.83V/1m (average SPL in range 2 – 20 kHz)	93.5	[dB]
Power handling, short term, IEC 268-5, 2.5 kHz@12dB/oct.	[N/A]	[W]
Power handling, long term, IEC 268-5, 2.5 kHz@12dB/oct.	[N/A]	[W]
Power handling, continuous, IEC 268-5, 2.5 kHz@12dB/oct.	35	[W]
Effective radiating area, S_d	11.5	[sq.cm]
Resonance frequency (free air, no baffle), F_s	690	[Hz]
Moving mass, incl. air (free air, no baffle), M_ms	0.43	[g]
Force factor, Bxl	1.95	[N/A]
Suspension compliance, C_ms	0.124	[mm/N]
Equivalent air volume, V_as	23	[mlit.]
Mechanical resistance, R_ms	0.76	[Ns/m]
Mechanical Q, Q_ms	2.45	[-]
Electrical Q, Q_es	1.72	[-]
Total Q, Q_ts	1.01	[-]
Voice coil resistance, R_DC	3.5	[ohm]
Voice coil inductance, L_e (measured at 20 kHz)	33	[μH]
Voice coil inside diameter	30.4	[mm]
Voice coil winding height	1.7	[mm]
Air gap height	3.0	[mm]
Theoretical linear motor stroke, Xmax	+/-0.65	[mm]
Magnet weight	[N/A]	[g]
Total unit net weight excl. packaging	0.13	[kg]
K_rm	4.1	[mohm]
E_rm	0.48	[-]
K_xm	197	[mH]
E_xm	0.11	[-]
