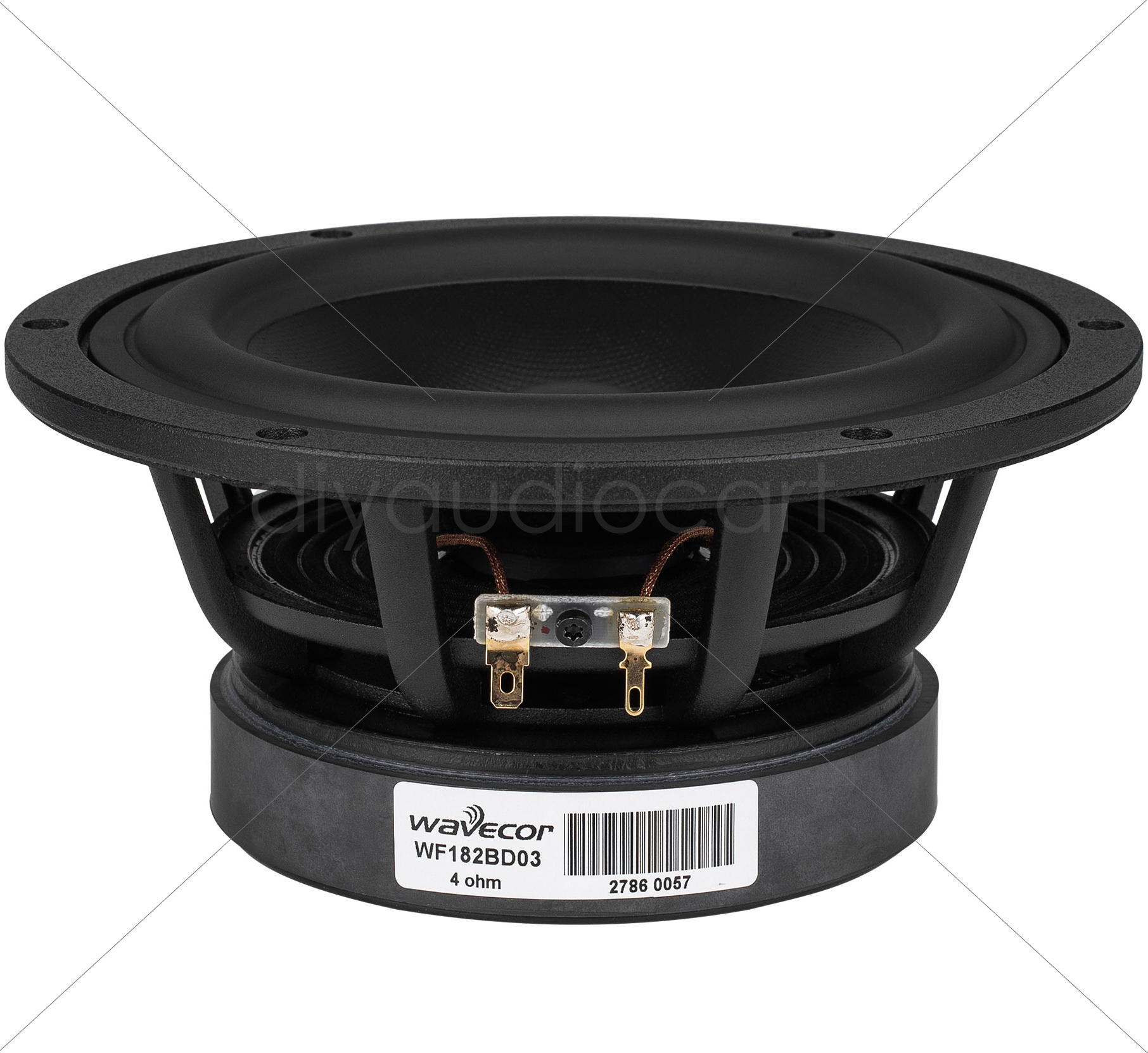

Wavecor WF182BD03 7″ die cast, paper cone mid/woofers, 4ohm

Overview:

The 7” transducers WF182BD03 (4 ohm) was designed as high performance bass and midrange units for  monitors and high-end hi-fi speakers. They offer outstanding deep bass performance and dynamic and detailed midrange.

Features:

• Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced 2nd order harmonic distortion
• Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
• Black coated semi-air-dried paper cone
• Rigid die cast alu chassis with extensive venting for lower air flow speed reducing audible distortion
• Vented voice coil former for reduced distortion and compression
• Vented center pole with dual flares for reduced noise level at large cone excursions
• Heavy-duty black fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
• Large motor with 39 mm voice coil diameter for better control and power handling
• Built-in alu field-stabilizing ring for reduced distortion at high levels
• Low-loss suspension (high Qm) for better reproduction of details and dynamics
• Black motor parts for better heat transfer to the surrounding air
• Conex spider for better durability under extreme conditions
• Gold plated terminals to ensure long-term trouble free connection

 Nominal Specification:

WF182BD03 DataSheet

WF182BD03 Balanced Drive technical paper
