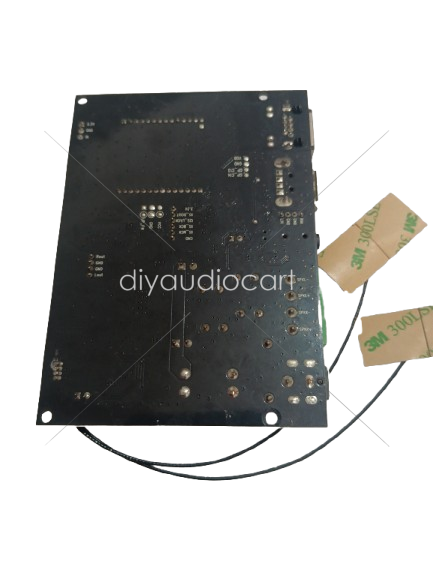

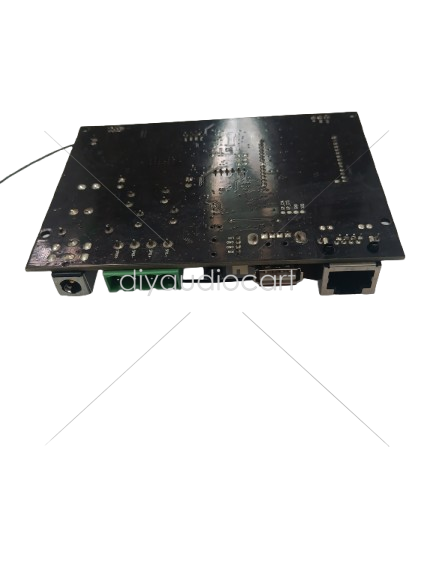

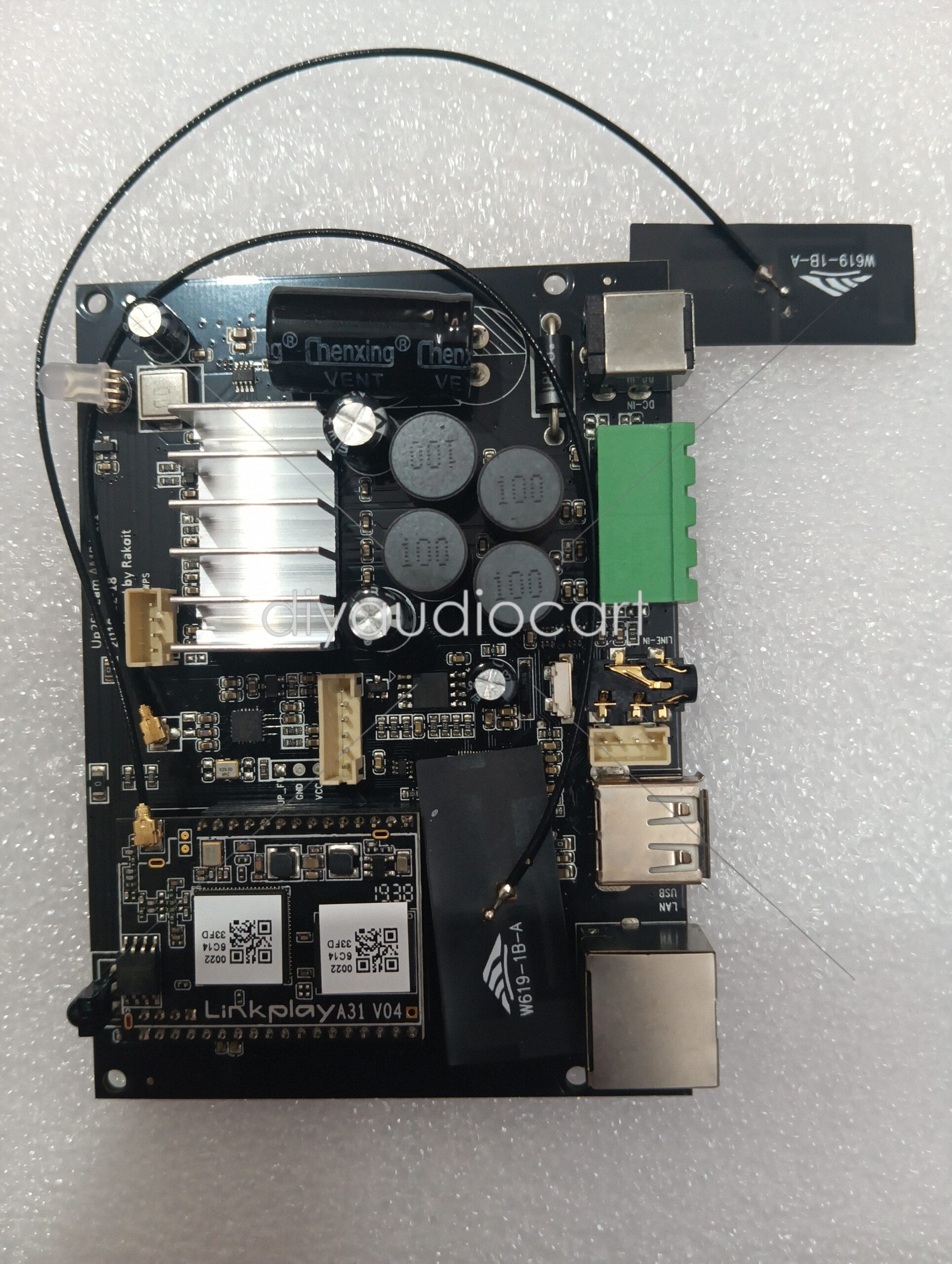

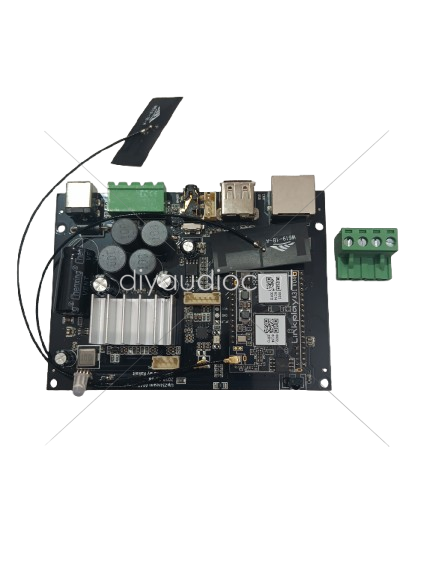

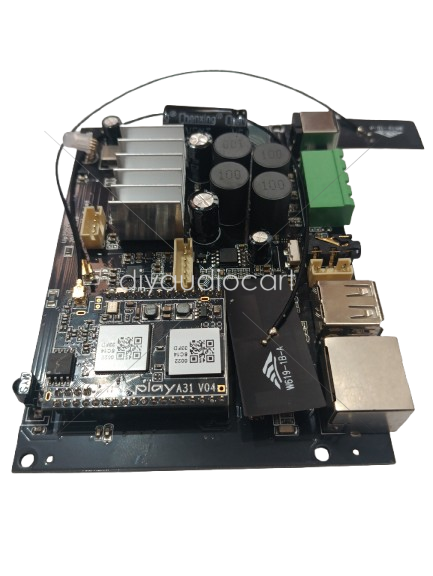

Arylic – WiFi and Bluetooth 5.0 HiFi Stereo Amplifier Board Up2Stream amp 2.0
Overview:
Up2stream Amp 2.0 is a WiFi&Bluetooth 5.0 with 50+50W 21V DC/2.0 HiFi Stereo Channel Multiroom Streaming Amplifier Board for DIY Speaker
Product Description:
Does your next project require a high-end amplifier, Bluetooth 5.0 connection, Wi-Fi streaming, multi-room use or maybe even all of them? Then boy, do I have news for you! The brand new Up2Stream Amp V3 is here to satisfy all your needs!
Highlights
- Wireless streamer and amplifier in one
- Bluetooth 5.0 and Wi-Fi streaming using the free app
- Supports multi-room use.
Product details
Arylic Up2Stream amp 2.0 V4 WiFi and Bluetooth 5.0 Stereo Amplifier Board
Does your next project require a high-end amplifier, Bluetooth 5.0 connection, Wi-Fi streaming, multi-room use, or maybe even all of them? Boy, do I have good news for you! The brand new Up2Stream Amp is here to satisfy all your needs!
This amplifier can stream music off of any reputable streaming service using its free Android and iOS app; Wi-Fi, Bluetooth 5.0, DLNA, AirPlay, Spotify, Deezer, Tidal, Qobuz, iheartRadio, Napster, internet radio you name it. Not only is the app very useful for uncompressed music streaming, but it also allows you to change the name of every Arylic product on your network and to set up a multi-room sound system.
The amplifier uses a powerful low distortion class D amplifier chip outputting up to 50 Watts per channel into 4 Ohms. It features every connection one may need and even has a USB port that can either be used as a USB DAC or for USB storage of your favorite tracks.
To control the amplifier, the free app, a PC or the optional remote control can be used.
Difference between V3 and V4
The version 4 has received a hardware revision, which supports more features with ACPWorkbench Audio effect tools. Like adjust L/R balance, L/R EQ settings etc. And ads more DIY pins like I2S and DAC output, so you have more options to connect DIY modules.
SPECIFICATIONS:
Connectivity | WiFi:IEEE802.11 b/g/n 2.4G LAN:RJ45 single 10/100m Bluetooth5.0 |
Freqneucy Response | 20Hz-20kHz |
Power Input | DC 12V-26V |
Speaker Output | 2X50W into a 4ohm Load at 21V 2X30W into a 8ohm Load at 24V 2x15W into a 8ohm Load at 15V |
Audio Output | 4 pin line out (L GND GND R) |
Audio Input | 3.5mm aux in (0dB @ 1Vrms) 4 pin line in (L GND GND R) USB 2.0 host |
IR | IR (NEC protocols) |
SNR | 91dB |
THD+N | 0.03% @1kHZ 50W+50W 21V 4ohm |
Music Format | FLAC MP3 AAC AAC+ ALAC APE WAVE |
Sample Rate | Decoding upto 24bit 192kHZ |
Protocol | Airplay DLNA Spotify Connect Qplay UPnP |
Streaming Sources | Spotify Deezer Tidal Qobuz iHeartRadio Napster Internet Radio |
Control Devices | iOS and Android based devices PC(iTunes or Foobar2000) Remote Controller |
Dimension | 110 * 80 * 20mm |
Weight | 130g |
