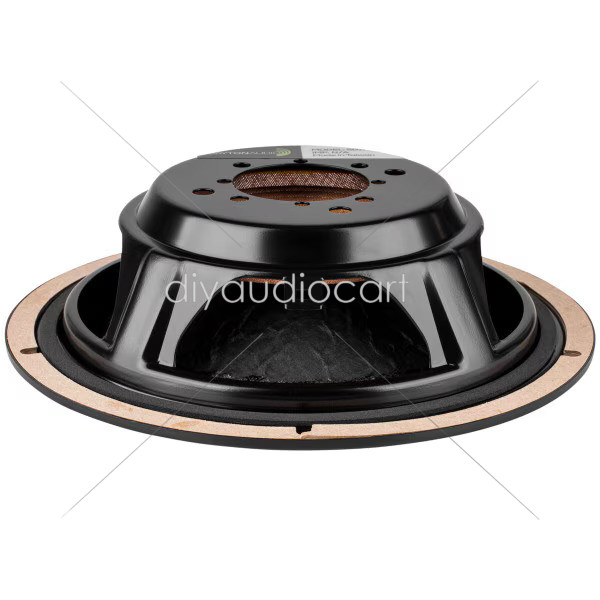

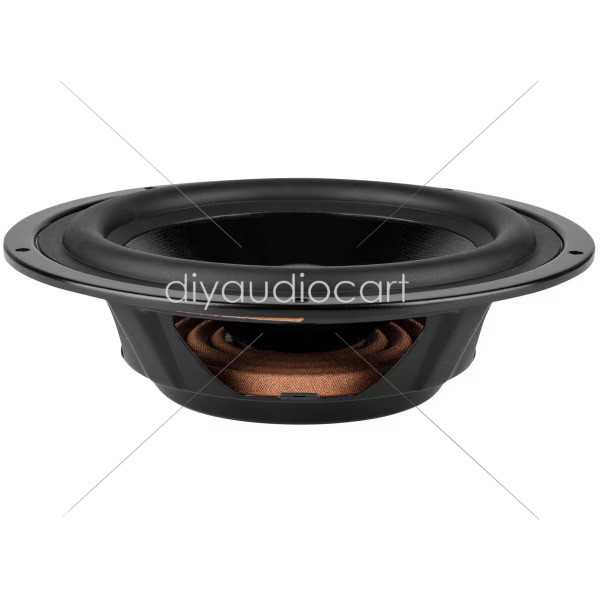

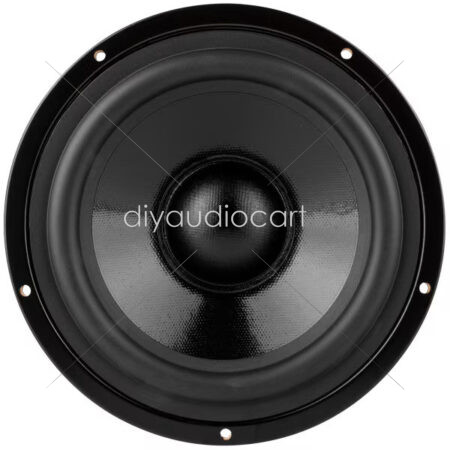

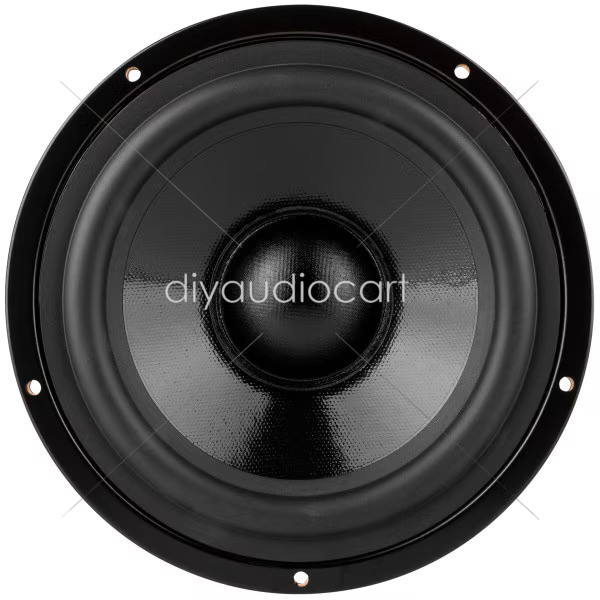

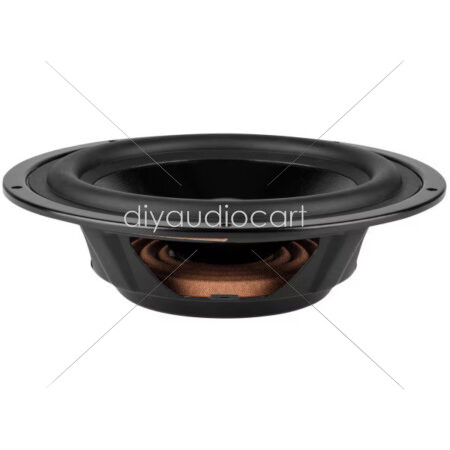

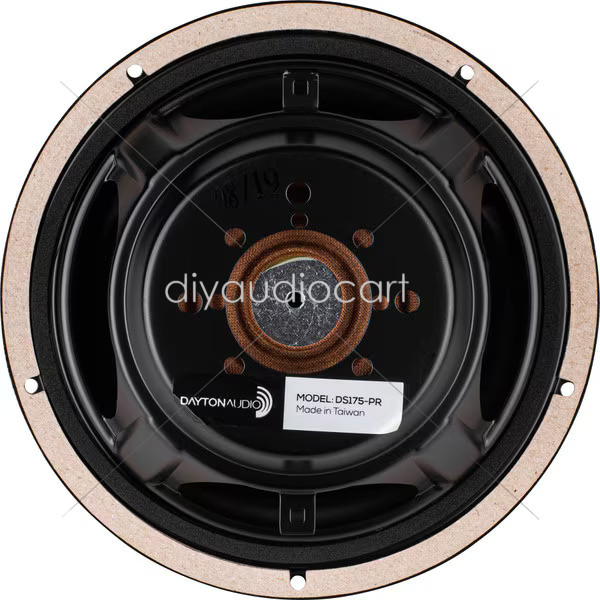

Dayton Audio DS175-PR 6-1/2″ Designer Series Passive Radiator
₹2,941.00
10 in stock
Dayton Audio DS175-PR 6-1/2″ Designer Series Passive Radiator
Overview:
The Dayton Audio DS175-PR 6-1/2″ passive radiator is excellent general-purpose radiator which allows lower tuning frequencies in smaller enclosures, suitable for replacement or for new construction.
Key Features:
- Long-throw suspension system for clean excursion
- Rugged stamped frame design with rear spider for stability
- Durable coated paper cone and rubber surround
- M5 threaded hole simplifies adding mass for lower tuning frequency
Product Details:
Brand | Dayton Audio |
Model | DS175-PR |
Unit of Measure | Each |
Weight | 0.7 |
Specifications:
Nominal Diameter | 6-1/2″ |
Bolt Circle Diameter | 6.54 |
Thiele-Small Parmeters:
Resonant Frequency (Fs) | 24.5Hz |
Mechanical Q (Qms) | 5.57 |
Compliance Equivalent Volume (Vas) | 0.95ft³ |
Mechanical Compliance of Suspension (Cms) | 1.15mm/N |
Diaphragm Mass Inc. Airload (Mms) | 36.6g |
Maximum Linear Excursion (Xmax) | 8mm |
Surface Area of Cone (Sd) | 128.7cm² |
Material of Construction:
Cone Material | Paper |
Surround Material | Rubber |
Basket / Frame Material | Steel |
Mounting Information:
Overall Outside Diameter | 6.94″ |
Baffle Cutout Diameter | 5.63″ |
Depth | 1.88″ |
# Mounting Holes | 5 |
Dayton Audio DS175-PR Specification Sheet
| Weight | 340 g |
|---|---|
| Dimensions | 18 × 19 × 6 cm |
| Brand | |
| JAN |
