MarkAudio ALPAIR 10V3 GOLD Full range (6″/8ohm)

Overview:

100mm Full range drive unit 8ohm single ferrite magnet

• Legendary full range drive unit
• 5in grey or gold magnesium alloy cone available
• Operating range to 25KHz –very linear response
• Low-profile multiform cone for broad directivity pattern
• Advanced low-distortion motor design
• Long-stroke suspension with arrestor and progressive-rate spider
• Self-damping reinforced polymer basket –optional

Product Description:

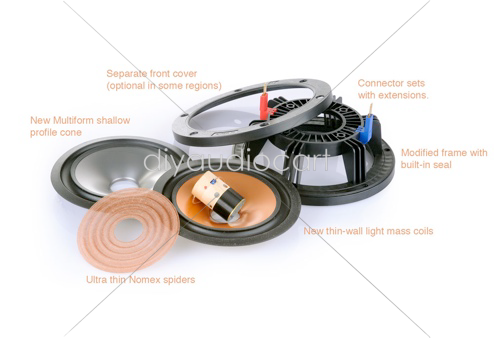

This Alpair 10 Gen.3 is the latest model in a development line designed to extend the performance of mid-sized Markaudio full-range emitters. This generation of Alpair 10 utilises a new ultra thin wall coil. Together with a new modification to its cone, this latest model delivers usable frequency range up to 25-kHz while retaining the “purist” single-cone design.

This driver retains the Multi-form cone technology with a new more efficient profile giving improved high range performance. Additional features include an advanced Nomex superlight rear suspension (spider). The Alpair 10‘s frame is formed from a new mix of polymers, making it 5% stiffer than the old model. The Gen.3 version houses an “Arrestor” in its magnetic motor sub-assembly, helping to avoid damage from over-load situations.

 Specifications:

PRODUCT LINK: CLICK HERE

Wider baffle MLTL:

Frugel-Horn XL:

Vented box standmounts:

Classic Golden Ratio resistively vented standmount:

Pensil 10.3:

Fenlon 10 simple vented box:

Oberon Alpair10.3 classic DCR box:

Nanga Parbat 10.3-10P MLTL:

Eland Alpair 10.3 compact MLTL

Despina Alair 10.3 & 10P RTL:

• Link to MarkAudio PDF Enclosure Plans

• Link to Planet10-hifi/Frugal-phile Website Construction Plans
