miniDSP UMIK-2 Omni-directional USB Referance Measurement Calibrated Microphone

Name: miniDSP UMIK-2 Omni-directional USB Referance Measurement Calibrated Microphone
SKU: UMIK-2
Availability: OutOfStock

Overview:

The miniDSP UMIK-2 Omni-directional USB Referance Measurement Calibrated Microphone is pre-programmed for miniDSP products, and requires no learning process

Product Description:

The UMIK-2 has everything that made the first-generation UMIK-1 one of our best selling products, including a convenient plug-and-play USB connection and a unique calibration file for each microphone to ensure accuracy. The UMIK-2 is also a significant upgrade in performance and functionality. A larger 1/2-inch microphone capsule provides lower noise and lower distortion, which is preserved by the 32-bit ADC (analog-to-digital convertor) built into the microphone shell. Furthermore, sample rates are selectable from 44.1 to 192 kHz for compatibility with the widest possible range of measurement and recording software. The UMIK-2 is of course fully compatible with REW (Room EQ Wizard) and Dirac Live (version 3 and later). Driverless operation with macOS, Linux, Android and iOS, and a supplied ASIO driver for Windows ensure simple integration into many other measurement and recording applications. With the UMIK-2, miniDSP once agains stretch the limits of affordable acoustic measurement gear.

Features:

USB Audio Reference Measurement Microphone
Unique calibration file for each microphone
1/2″ capsule on 60 UNS thread
32bit 44.1~192kHz recording, Custom Windows ASIO drivers and Plug&Play on Linux/Mac OSx
Low noise floor preamps, 120DR ADC
Plug&Play compatible with wide range of software, including REW & Dirac Live platforms

Specifications:

Item	Description
USB Audio Controller	XMOS 500MHz multicore processor, USB Audio Class 2 (UAC2)
ADC	32bit ADC with embedded PGA for up to 60dB analog gain 120dB SNR, Gain control via Mac/Win application
Capsules	1/2” Low noise Pre-polarized condenser on 60UNS thread Sensitivity: -34 dBfs @ 0dB Gain (94 dB SPL. 1 kHz) Noise level: -105.3dBfs (A) @ 0 dB gain MAX SPL(0dBfs): 125dB SPL Equivalent Input Noise (EIN): 20dB SPL @ 0dB gain
Connectivity	USB 2.0 streaming, USB Type C connector
Software	As a standard USB audio microphone, UMIK-2 is compatible with any software. The following proven platforms with plug&play integration. – Room EQ Wizard freeware for acoustic measurements – Dirac Live Room Correction software
USB Audio	Mac OSx/Linux/Android Driverless ASIO compatible driver for Windows via miniDSP’s UAC2 drivers iOS support with USB camera adaptor

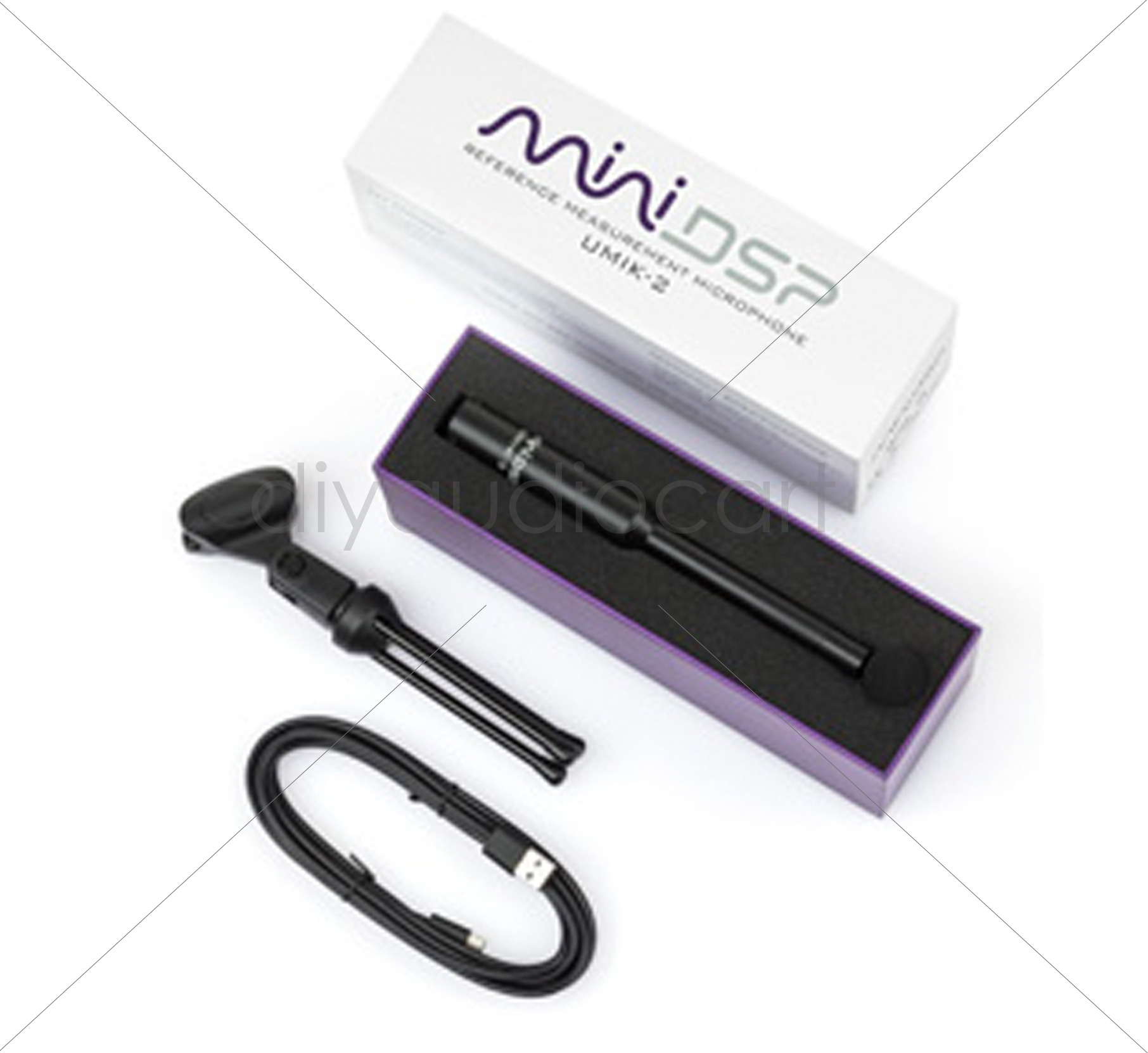

Accessories	1 x miniTRIPOD with microphone clamp 1 x windscreen 1 x USB 2m long usb cable
Dimensions (W x D) / Weight	21 x 185 mm, 150g
