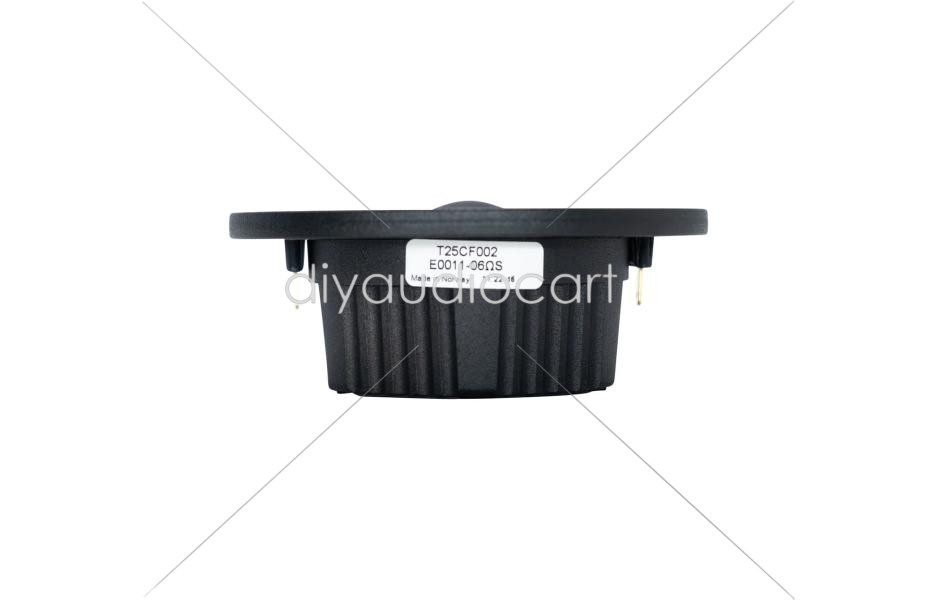

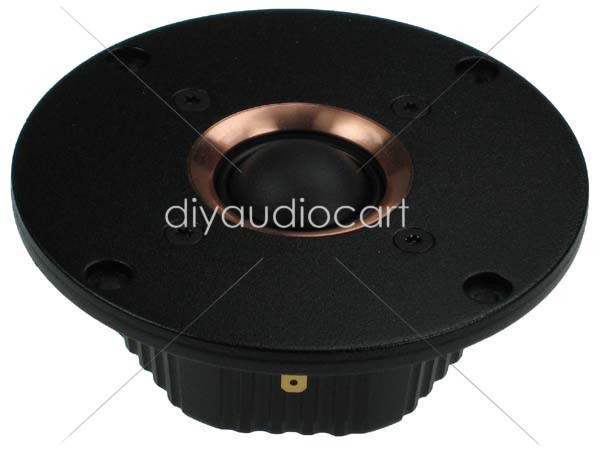

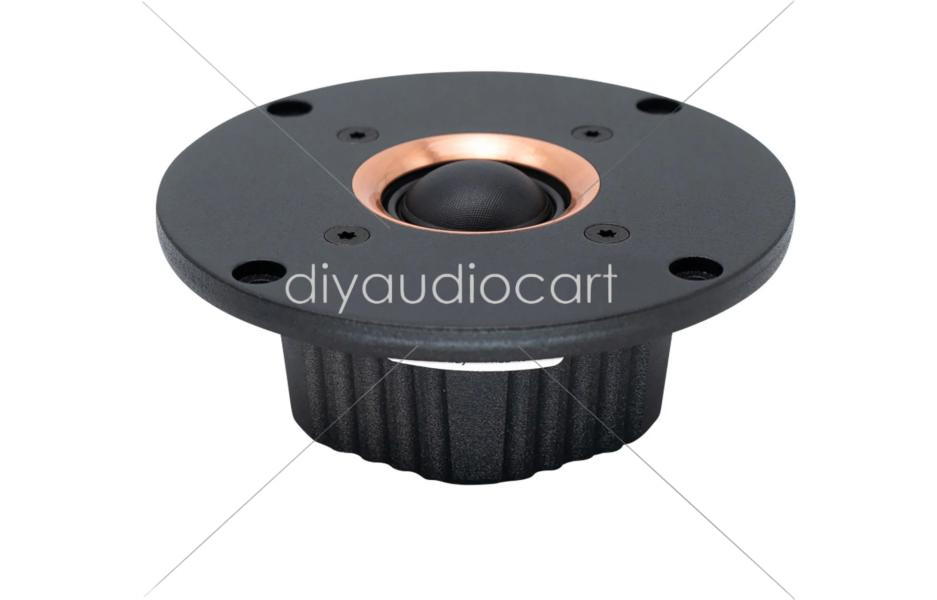

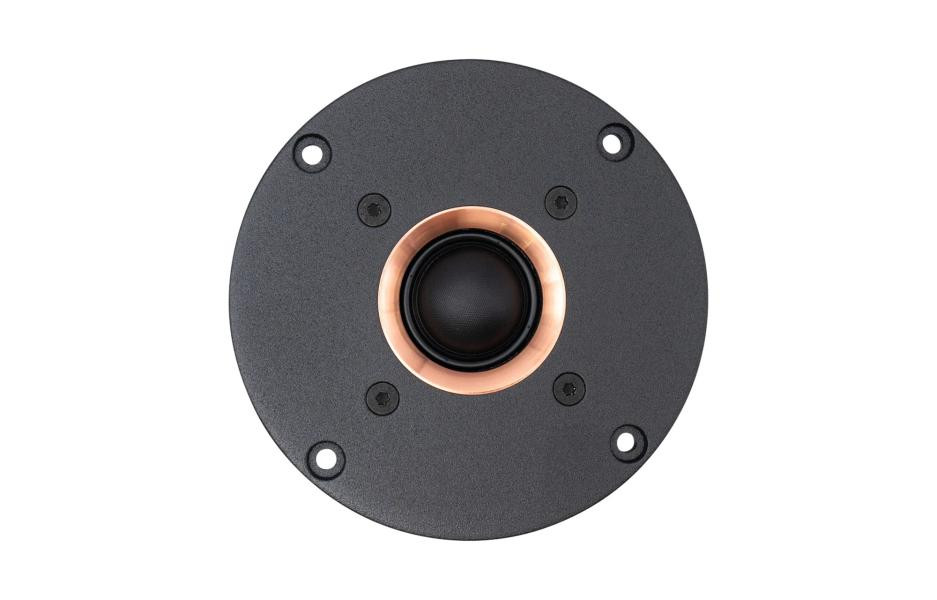

SEAS Excel Millennium E0011-06 T25CF002 Dome Tweeter 6Ohm/25mm
Overview:
Seas Excel T25CF002, “MILLENNIUM” is a 25mm soft dome tweeter with a novel Neodymium based magnet system. a unique HEXADYM magnet system (US Pat 6.020.805 ) based on 6 radially magnetized NdFeB magnet blocks. Efficient ventilation and damping of every potentially resonant cavity behind the dome, surround and voice coil. An optimally shaped and coated fabric dome diaphragm manufactured by SEAS from SONOTEX for excellent performance and consistency. Flexible lead-out wires ensure a good connection between voice coil and terminals. This arrangement also helps to prevent lead breakage due to the large excursions encountered when low crossover frequencies are used. A 6,0 mm injection moulded zinc front plate with a very slight loading characteristic which ensures linear frequency response, and a stiff and stable connection to the cabinet.
Highlights:
- Smooth, extended frequency response.
- Specially designed soft Sonotex surround which allows a low fundamental frequency (2,000 to 25,000 Hz)
- 200 Watts RMS Power Handling
- 89 dB 2.83V/1m Sensitivity
Product Details:
Model | T25CF002 |
Tweeter Type | Aluminium /magnesium alloy dome |
Tweeter Series | Excel |
Cone / Dome Diameter | 25mm |
Specifications:
Nominal Impedance | 6 Ohms |
Recommended Frequency Range | 2000 – 25000 Hz |
Short Term Power Handling | 200 W |
Long Term Power Handling | 90 W |
Characteristic Sensitivity (2.83V, 1m | 89 dB |
Voice Coil Diameter | 26 mm |
Voice Coil Height | 1.5 mm |
Air Gap Height | 2.5 mm |
Linear Coil Travel (p-p) | 1.0 mm |
Voice Coil Resistance | 4.6 Ohms |
Voice Coil Inductance | 0.05 mH |
Force Factor | 3.1 N/A |
Free Air Resonance | 500 Hz |
Moving Mass | 0.37 g |
Effective Piston Area | 7.0 cm2 |
Magnetic Gap Flux Density | 1.5 T |
Magnet Weight | 0.029 kg |
Total Weight | 0.36 kg |
Frequency:
