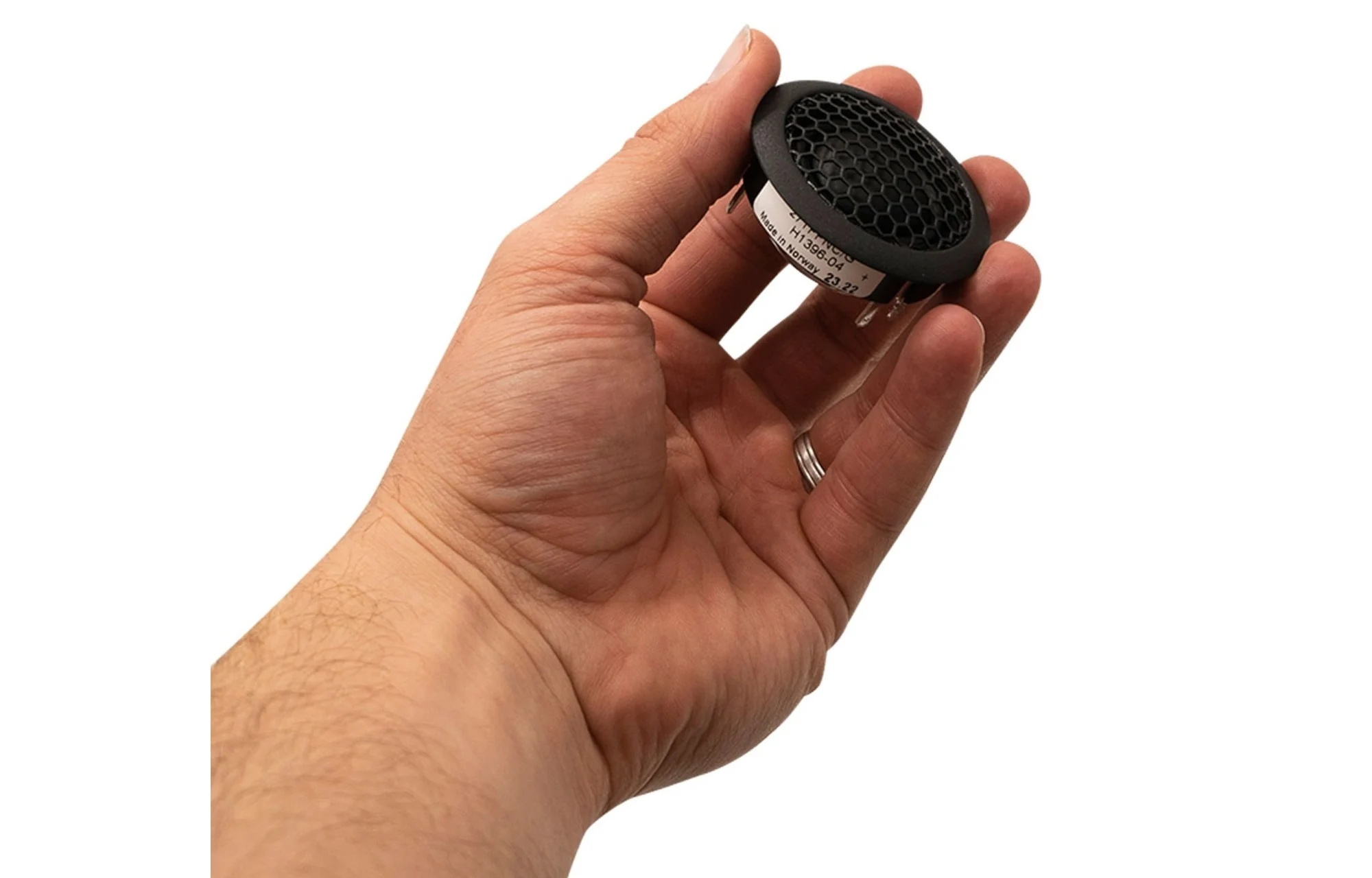

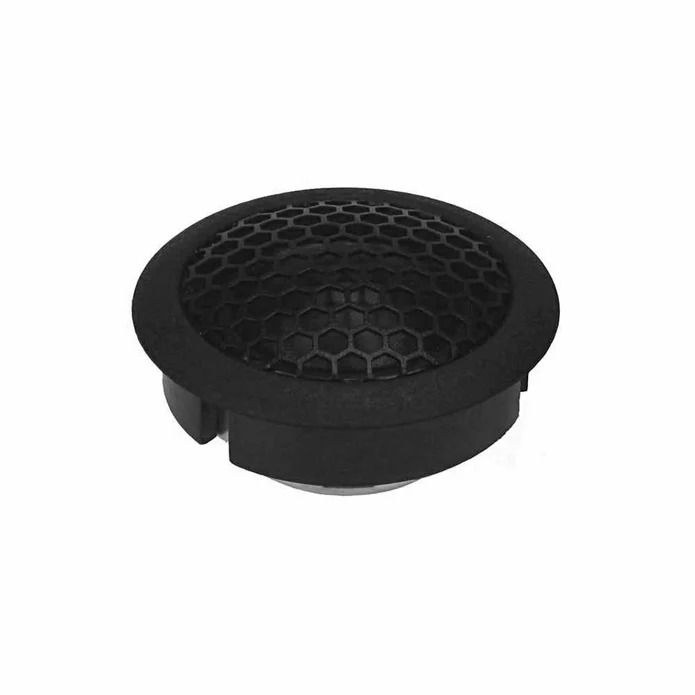

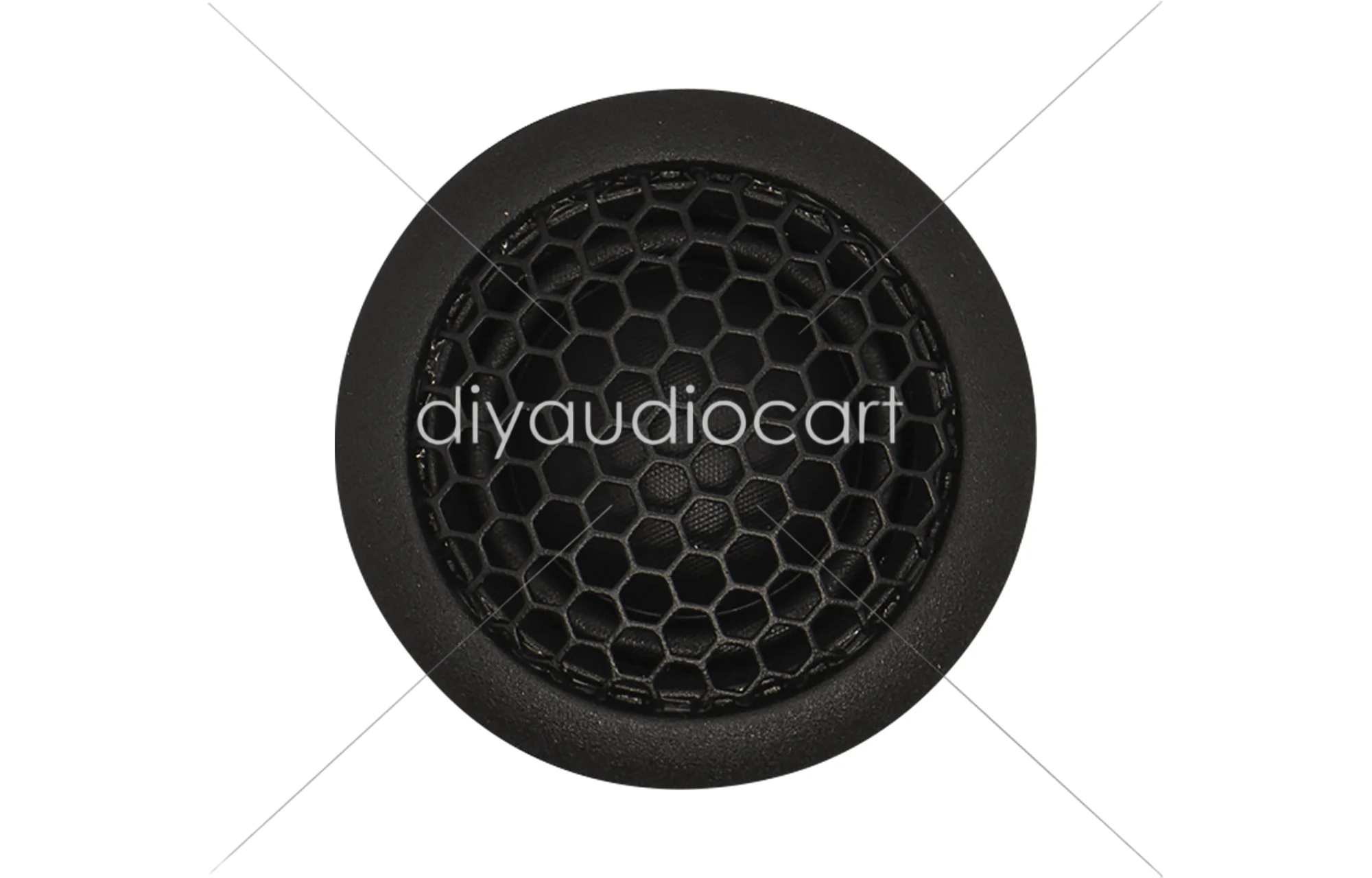

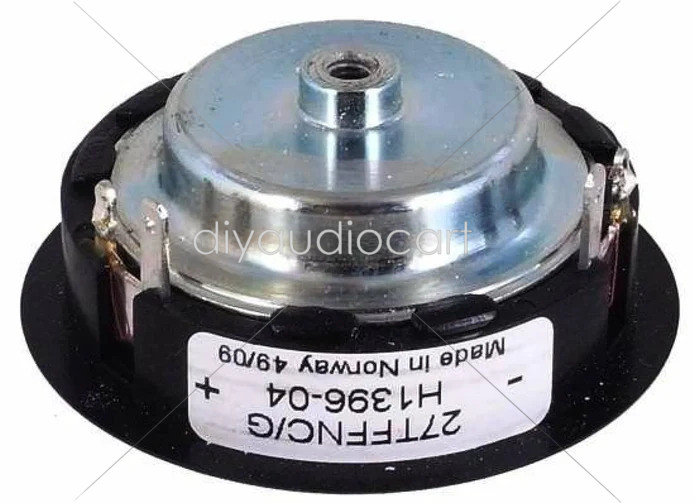

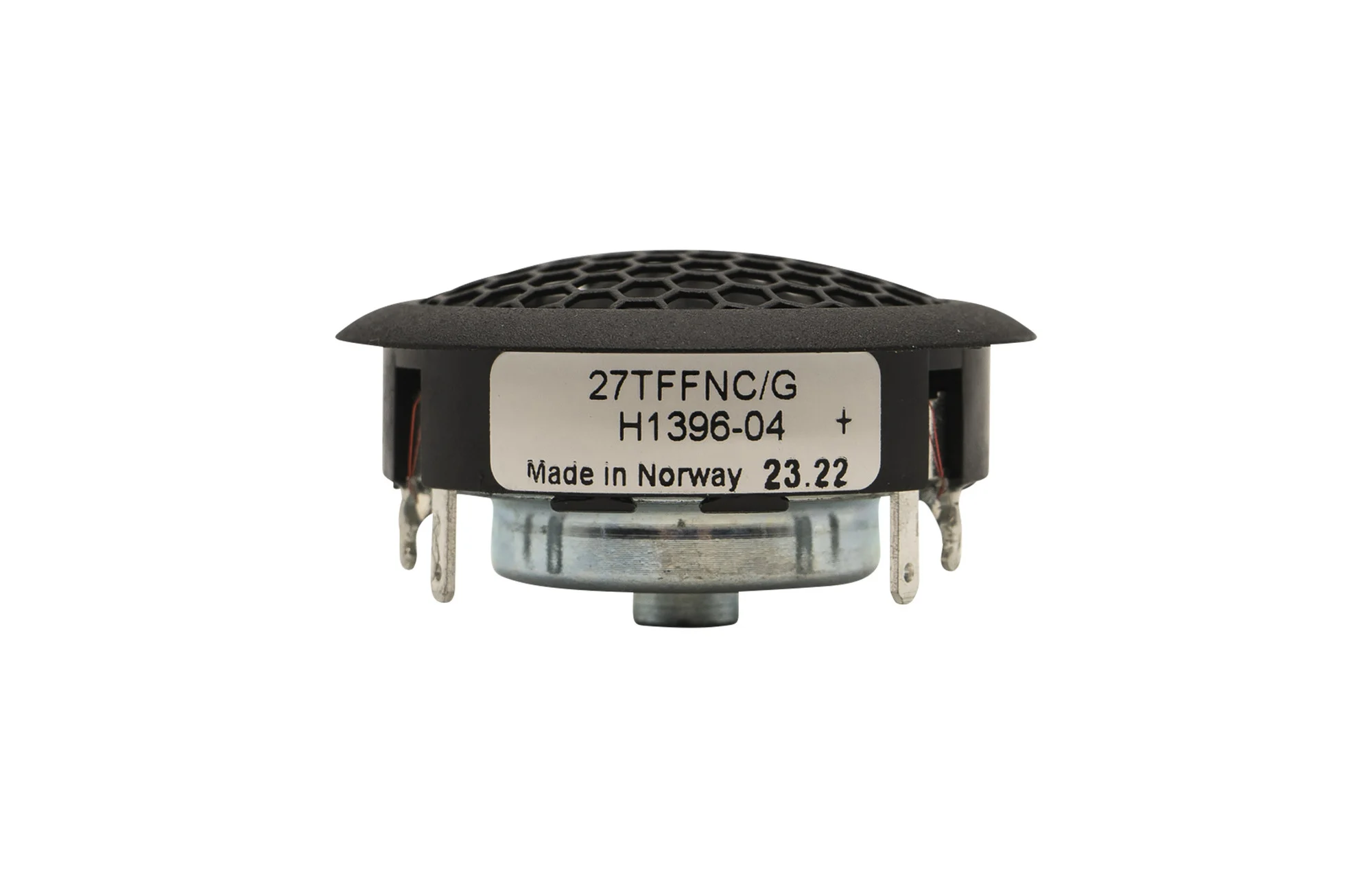

SEAS Prestige H1396-04 27TFFNC/G Neodymium Tweeter 4Ohm/27mm

Overview:

Compact design neodymium magnet tweeter for high quality speaker designs in small cabinets or automobiles. Sonolex precoated lightweight fabric diaphragm and suspension allows for very tight production tolerances and high consistency.
Wide roll surround together with a double chamber magnet system results in a low fundamental frequency. Very low magnetic stray fields make this unit suitable for A/V systems. The voice coil is immersed in magnetic fluid, allowing high power handling capacity and simplified crossover design.

Highlights:

• Smooth, extended frequency response.
• Specially designed soft Sonotex surround which allows a low fundamental frequency (2,000 to 25,000 Hz)
• 80 Watts RMS Power Handling
• 91 dB 2.83V/1m Sensitivity

Product Details:

Specifications:

Frequency Response:

Dimensions:

H1396-04 Data Sheet
