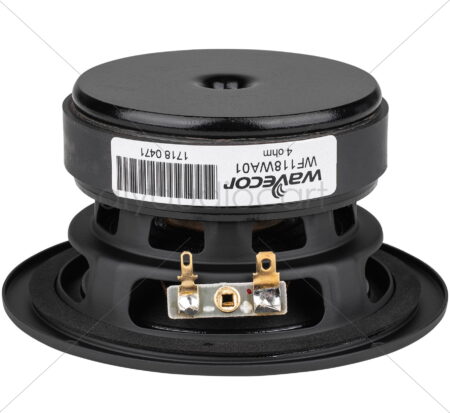

Wavecor WF118WA01 4-1/2″ Paper Cone Mid-Woofer 4 Ohm

Quick Overview:

The Wavecor WF118WA01 is a 4-1/2″ paper cone midwoofer designed for demanding bass and midrange applications. It works equally well for high-end hi-fi, high quality home theater systems, and multimedia projects. The WF118WA01 is an ideal choice for a compact 2-way speaker design as a midwoofer.

Product Highlights:

• Alu field-stabilizing ring inside magnet assembly for reduced distortion at high levels
• Vented voice coil former for reduced distortion and compression
• New vented chassis for lower air flow speed reducing audible distortion
• Voice coil wound with Copper Clad Aluminium Wire for higher efficiency and better dynamics
• Heavy-duty black fiber glass voice coil bobbin to increase power handling and reduce mechanical losses resulting in better dynamic performance and low-level details
• Large motor system with 1�” voice coil diameter and 85mm magnet for better control and efficiency
• Black magnet parts for better heat transfer to increase power handling
• Long linear stroke motor for reduced distortion at high levels
• New progressive suspension with specially designed CONEX damper (spider) for long durability under extreme operating conditions
• Gold plated terminals to prevent oxidation for long-term reliable connection

Product Description:

The Wavecor WF118WA01 is a 4-1/2″ paper cone midwoofer designed for demanding bass and midrange applications. It works equally well for high-end hi-fi, high quality home theater systems, and multimedia projects. The WF118WA01 is an ideal choice for a compact 2-way speaker design as a midwoofer.

Powered by a large 85mm magnet structure, the WF118WA01 is ensured excellent efficiency and optimal T/S parameters. The large 32mm voice coil allows excellent high-power handling, both thermally and mechanically. The optimized paper cone ensures large bandwidth and low distortion. Distortion is further reduced by the efficient venting and an aluminum shorting ring stabilizing the magnetic field in the air gap.

Product Specification:

Wavecor WF118WA01 DATA SHEET
