Wavecor WF223BD02 8-3/4" Balanced Drive Paper/Glass Fiber Cone Mid-Woofer 8 Ohm

Wavecor WF223BD02 8-3/4″ Balanced Drive Paper/Glass Fiber Cone Mid-Woofer 8 Ohm

Name: Wavecor WF223BD02 8-3/4" Balanced Drive Paper/Glass Fiber Cone Mid-Woofer 8 Ohm
SKU: WF223BD02
Price: 14396.00 INR
Availability: InStock

₹14,396.00

9 in stock

SKU: WF223BD02 Category: Midrange / Midbass Tags: 8Ohm, Midwoofer, paper/glass, Wavecor, WF223BD02

Wavecor WF223BD02 8-3/4″ Balanced Drive Paper/Glass Fiber Cone Mid-Woofer 8 Ohm

Quick Overview:

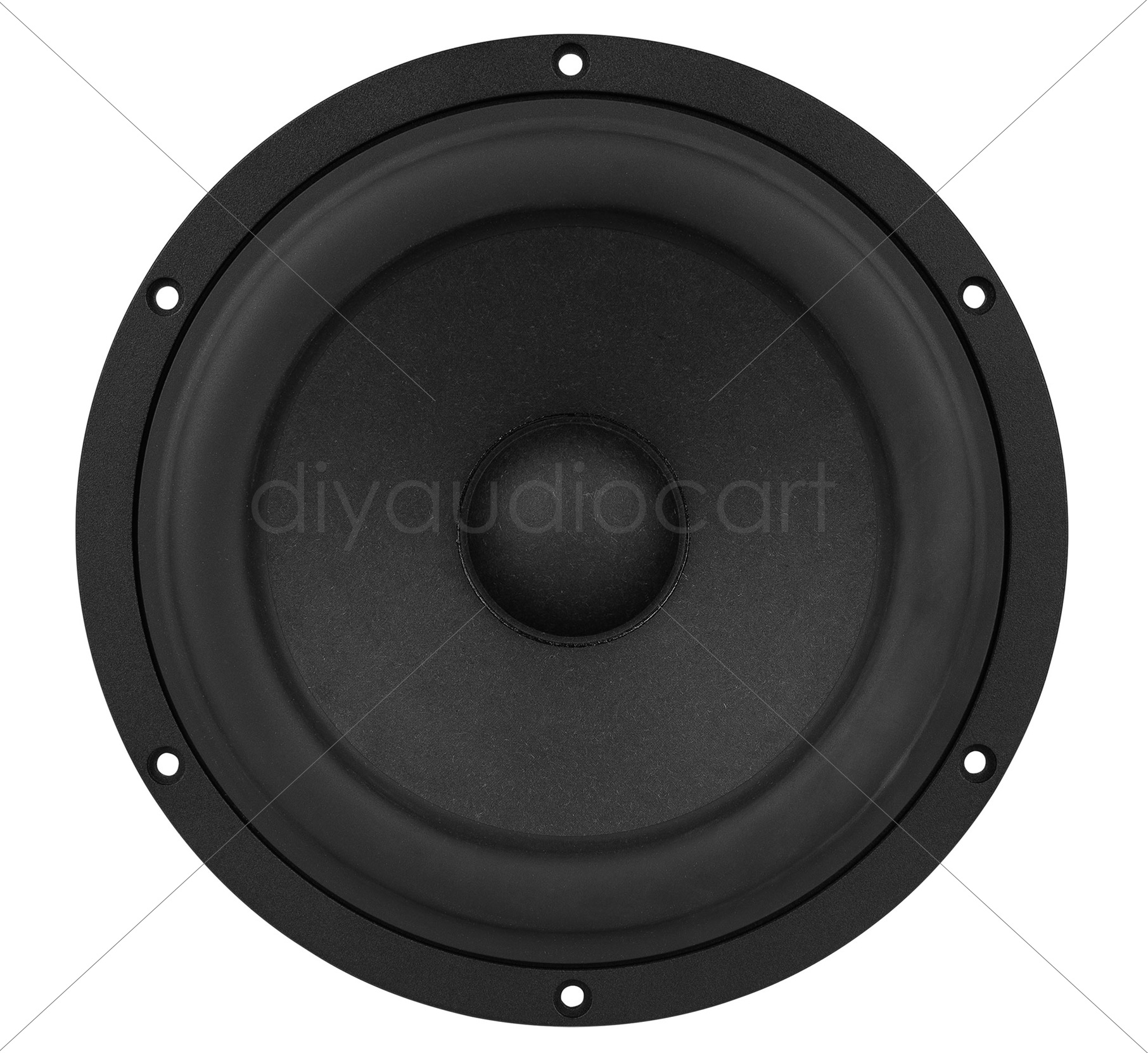

The Wavecor WF223BD02 is an 8-3/4″ paper/glass fiber cone midwoofer that utilizes balanced drive technology and is designed for demanding bass and midrange applications. The WF223BD02 is a very good choices for either 2 or 3-way speaker systems.

Product Highlights:

Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
Cone made of a new paper/glass fiber mix with improved consistency and stability
Rigid die cast alu chassis with extensive venting for lower air flow speed reducing audible distortion
Vented voice coil former for reduced distortion and compression
Vented center pole with dual flares for reduced noise level and compressions at large cone excursions
Heavy-duty black fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
Large motor with 39 mm voice coil diameter for better control and power handling
Built-in alu field-stabilizing ring for reduced distortion at high levels
Low-loss suspension (high Qm) for better reproduction of details and dynamics
Black plated motor parts for better heat transfer to the surrounding air
Conex spider for better durability under extreme conditions

Gold plated terminals to ensure long-term trouble free connection

Product Description:

The Wavecor WF223BD02 is an 8-3/4″ paper/glass fiber cone midwoofer that is designed for demanding bass and midrange applications. This driver is powered by a large magnet structure that ensures good efficiency. The WF223BD02 is a very good choices for 2-way speaker systems or even as midrange in 3-way systems.

The large motor system with 1-1/2″ voice coil diameter and large magnet for better control, power handling, and efficiency. The optimized paper/glass fiber cone ensures wide bandwidth and low distortion. Distortion is further reduced by efficient venting of the chassis and voice coil former.

Product Specification:

Parameter	WF223BD02		Unit
Parameter	Before burn-in	After burn-in	Unit
Nominal size	8.75		[inch.]
Nominal impedance	8		[ohm]
Recommended max. upper frequency limit	2		[kHz]
Sensitivity, 2.83V/1m (average SPL in range 200 – 1,000 Hz)	86.5		[dB]
Power handling, short term, IEC 268-5, no additional filtering	1,200		[W]
Power handling, long term, IEC 268-5, no additional filtering	300		[W]
Power handling, continuous, IEC 268-5, no additional filtering	150		[W]
Effective radiating area, Sd	213		[sq.cm]
Resonance frequency (free air, no baffle), Fs	33.1		[Hz]
Moving mass, incl. air (free air, no baffle), Mms	33		[g]
Force factor, Bxl	9.5		[N/A]
Suspension compliance, Cms	0.70		[mm/N]
Equivalent air volume, Vas	45		[lit.]
Mechanical resistance, Rms	0.48		[Ns/m]
Mechanical Q, Qms	14.3		[-]
Electrical Q, Qes	0.47		[-]
Total Q, Qts	0.46		[-]
Voice coil resistance, RDC	6.2		[ohm]
Voice coil inductance, Le (measured at 10 kHz)	0.20		[mH]
Voice coil inside diameter	39		[mm]
Voice coil winding height	18		[mm]
Air gap height	5		[mm]
Theoretical linear motor stroke, Xmax	+/-6.5		[mm]
Magnet weight			[g]
Total unit net weight excl. packaging	2.5		[kg]
Krm			[mohm]
Erm			[-]
Kxm			[mH]
Exm			[-]
