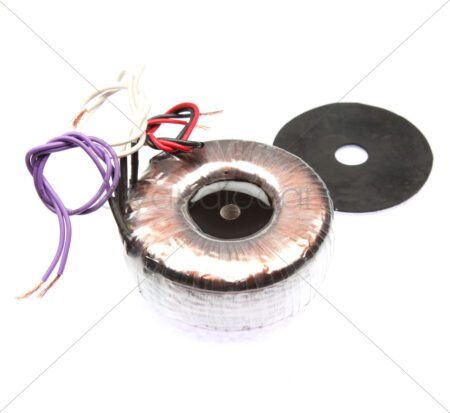

DAC – 0-190V X 1, 0-6.5V X 1 – Toroidal Transformer – 38VA

Overview:

DAC's power transformers offer exceptional value for money and performance for use in any high-quality power supply. All transformers are wound with good quality copper and are wrapped with polyester tape, meeting all major industry standards. These include CRGO steel core, mounting nut and bolt etc. CRGO steel core is having less hysteresis losses therefore the efficiency is high as compared to normal core transformer.

Specifications:

• Primaries: 230VAC
• Frequency: 50/60 Hz
• Load Capacity: 38 VA
• Secondary Voltage 1: 0 – 190VAC @ 0.15A
• Secondary Voltage 2: 0 – 6.5VAC @ 1.5A
• Dimensions (Approx.): 85mm (Diameter) x 35mm (Height)
• Weight: 1 KG

Features:

• Small size and low weight compared with traditional stacked lamination types
• Extremely low level of radiated magnetic field
• Very low induced noise (hum)
• Very low iron loss
• Supplied with mounting hardwares.
• Very High Efficiency (90 to 95%).
• Ideally suitable 24/7/365 operation due to very low no load losses.
• CRGO Core ensuring low core loss.

Applications:

• Tube Pre-Amp
• Medical equipments
• General power supply
• Industrial power supply

Warning:

Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework. This would constitute a shorting and cause irreparable damage. When wiring the unit to devices, special attention should e given to the colours of leads to ensure correct connection and polarity. Any improper connections may render the unit unworkable.

Note:

We can custom build toroidal transformer as per your requirement. Kindly click on the Contact Us with your requirement specification to get a quotation.
