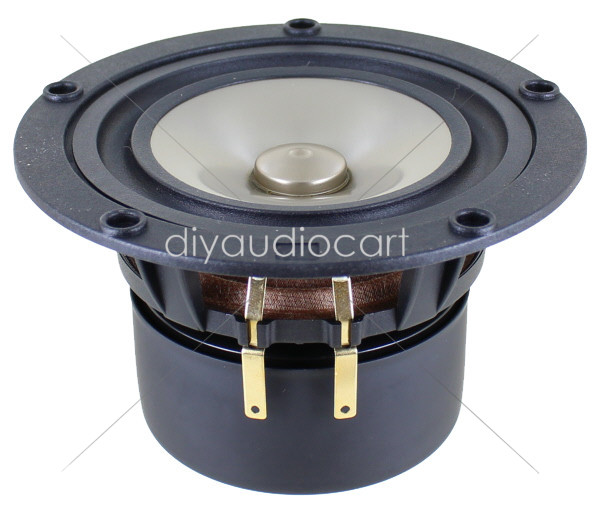

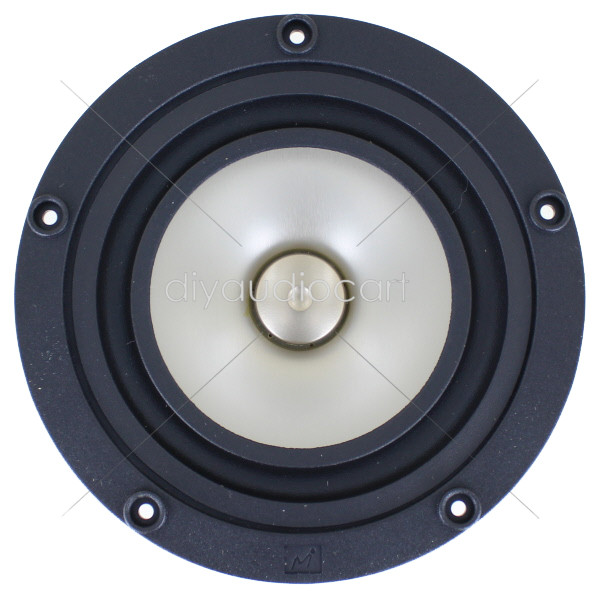

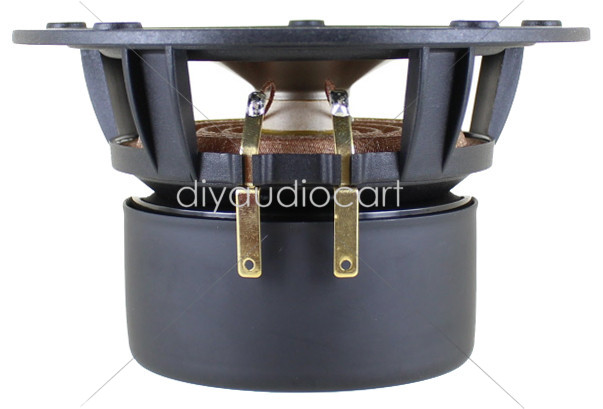

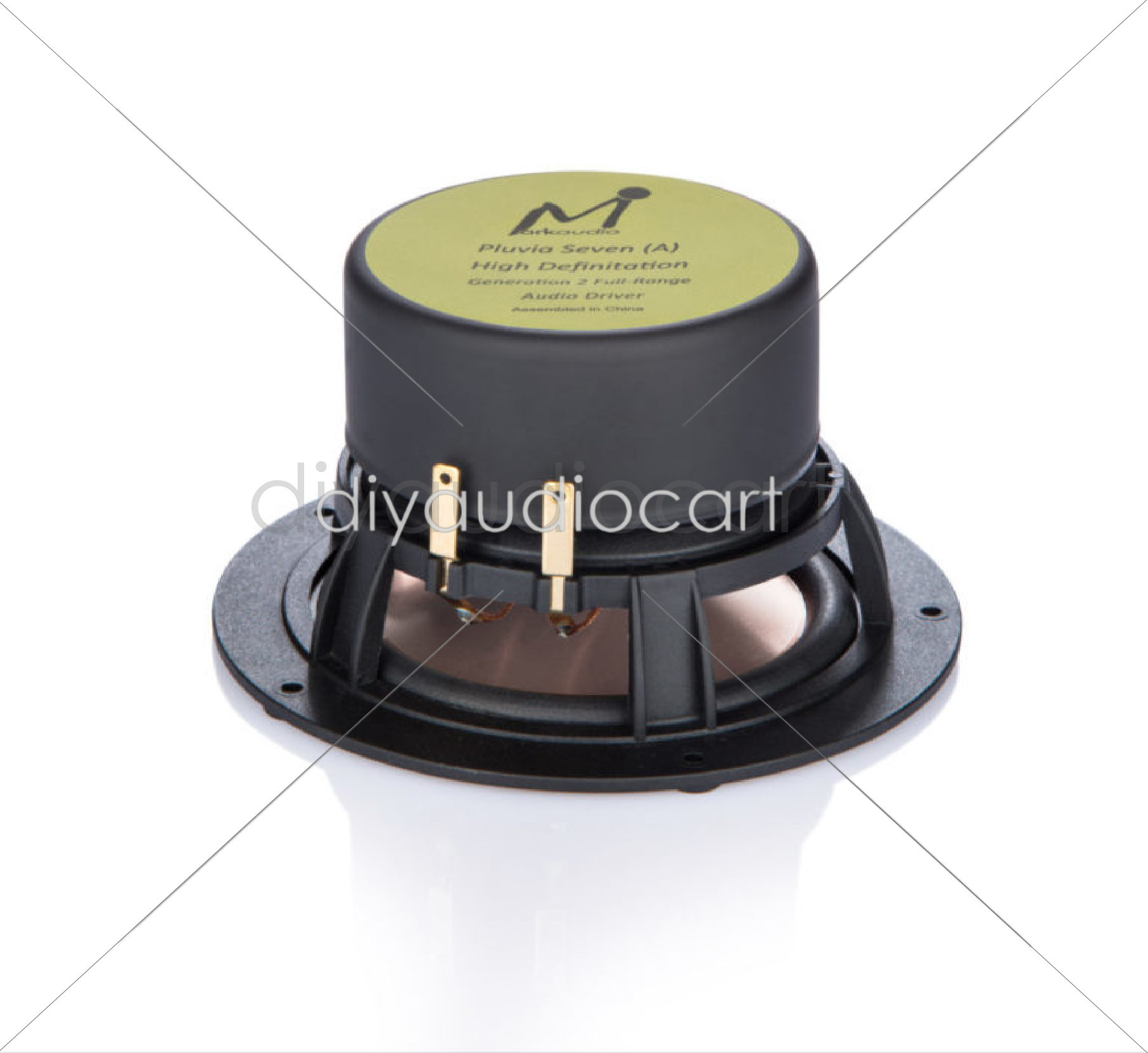

MarkAudio Pluvia 7HD Silver Full Range (4″/6ohm) – Pair

Product Description:

The second-generation Pluvia 7HD is designed to supersede our original Alpair 7 series drive units. It employs many of the same components, and has a very similar balance of frequency response and Thiele / Small values to the old Alpair model, packaged in the more efficient and convenient Pluvia frame. With a mounting depth of less than 4mm, the Pluvia may be surface or flush-mounted, and the design of the mounting legs is very open, allowing good airflow to the rear.

The low-mass coil, suspension and shallow-profile cone are highly efficient. Frequency response extends beyond 30KHz, and the generous 4mm (1-way) Xmax and conveniently balanced T/S parameters allow 40Hz bass output in suitable enclosure designs. The sound character is neutral and highly detailed, with excellent off-axis performance. It is an extremely flexible drive unit for music, small HT and commercial AV applications, and offers exceptional performance at an affordable price point.

Availble in 2 cone colours, vintage gold and soft chrome.

Features:

• 4in Soft Chrome or Vintage Gold magnesium alloy cone
• Operating range to 30KHz –very linear response
• Very shallow multiform cone profile –very broad directivity pattern
• Advanced low-distortion motor design
• Long-stroke suspension with arrestor and progressive-rate spider
• Low-profile surface-mount reinforced polymer basket

 Specifications:

Datasheet Download click here

Enclosure Plans:

Frugel-Horn Mk3

Compact series multichamber

Twin Driver, High output standmout

Sealed Standmount

Fenlon 70 simple vented box

Nereid Pluvia 7HD RTL

Rosalind Pluvia 7HD & PHD Traditional vented box Standmount

Note: The price is for a Pair
